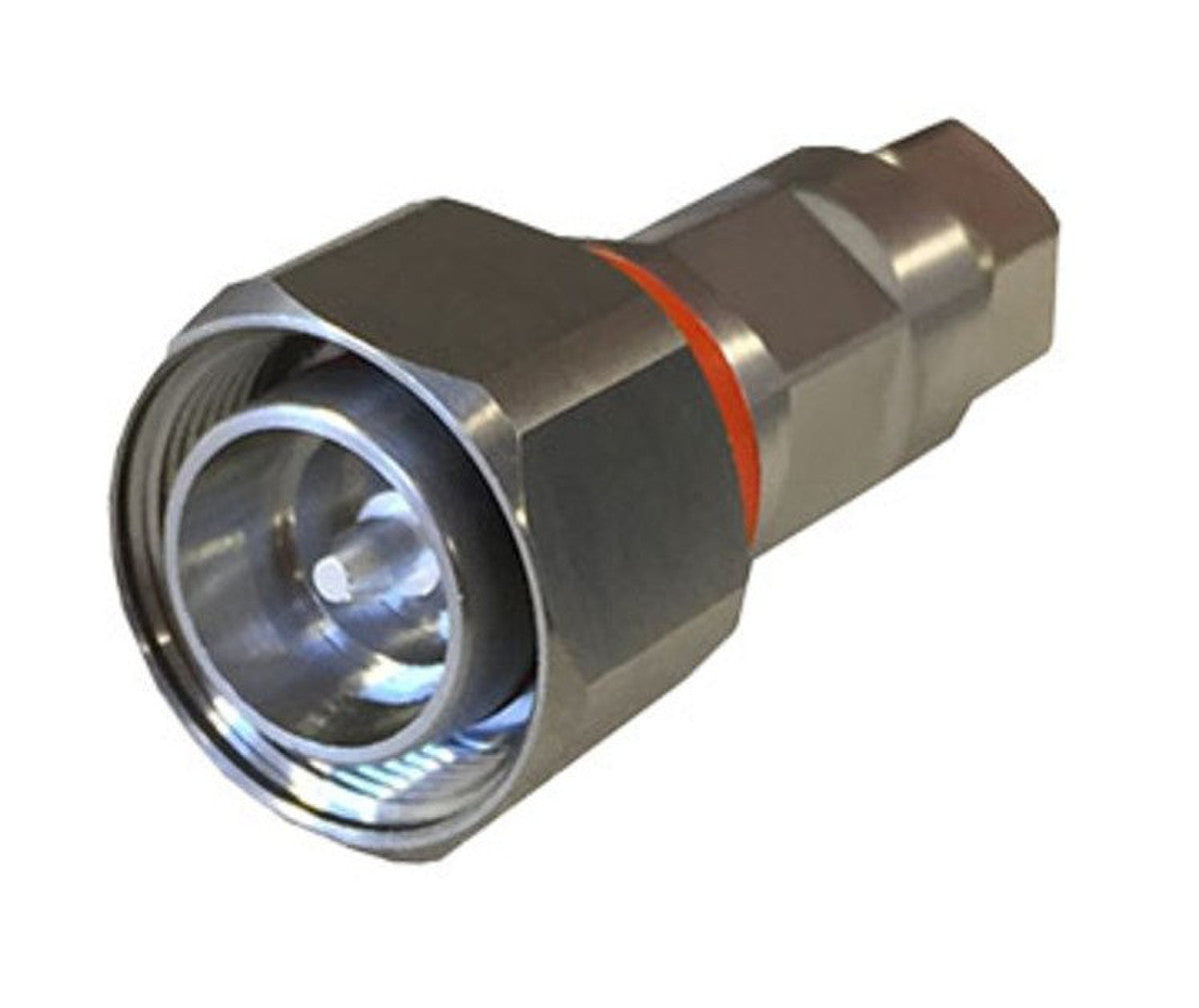

CommScope F1HM-D 4.3-10-Male Connector for 1/4" FSJ1-50A Cable

CommScope F1HM-D 4.3-10-Male Connector for 1/4" FSJ1-50A Cable

Available

Item ID:
168018238
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F1HM-D
Send Request for Quote (RFQ)
CommScope F1HM-D is a high-quality 4.3-10 Male Connector designed for 1/4" FSJ1-50A cable. The body style is straight, and the cable family is FSJ1-50A.
Regular price $53.10
Regular price $0.00 Sale price $53.10
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope F1HM-D is a high-quality 4.3-10 Male Connector designed for 1/4" FSJ1-50A cable. The body style is straight, and the cable family is FSJ1-50A. The inner contact is captivated and plated with silver, while the outer contact is attached by clamping and plated with trimetal.

Product Features:

  • The typical insertion loss coefficient is 0.05, and the average power at 900 MHz is 600.0 W.
  • Both the cable and connector have an impedance of 50 ohms.
  • The DC test voltage is 1600 V, with a maximum RF operating voltage of 707 V (vrms).
  • The maximum inner contact resistance is 0.8 mOhm, and the maximum outer contact resistance is 1.5 mOhm.
  • The minimum insulation resistance is 5000 mOhm.
  • The operating frequency band ranges from 0 to 12000 MHz.
  • The peak power is a maximum of 10 kW, and the shielding effectiveness is -110 dB.
  • The coupling nut retention force is 449.98 N.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1 x CommScope F1HM-D 4.3-10 Male Connector for 1/4" FSJ1-50A Cable.

Documents:

CommScope F1HM-D Connector - Datasheet CommScope F1HM-D Connector - Installation Guide
