VHF and UHF Antennas
Get clear radio comms with VHF and UHF antennas for maritime, public safety, two‑way radios, and industrial use. Techwave offers tuned, durable designs for reliable signal coverage.

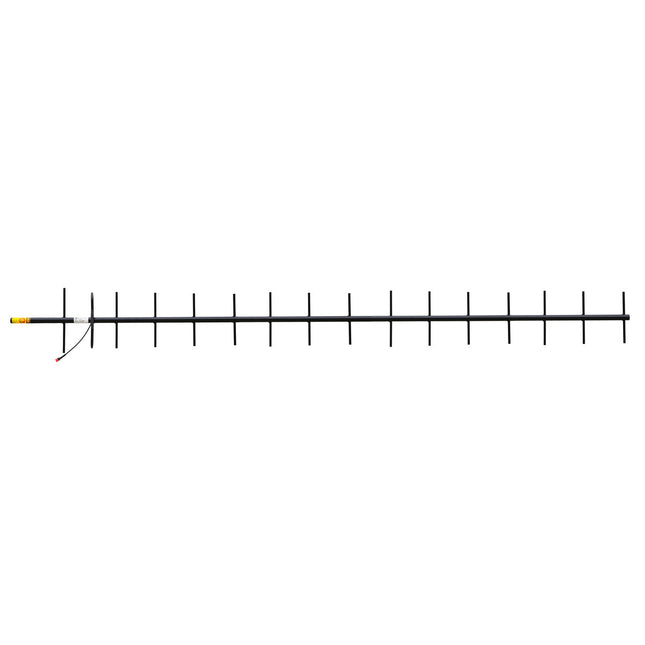

The RFI YB16-71 is a 16-element Yagi antenna built for high-gain directional communication in the 470-490 MHz frequency range. It is designed for applications requiring focused signal transmission and minimal interference.

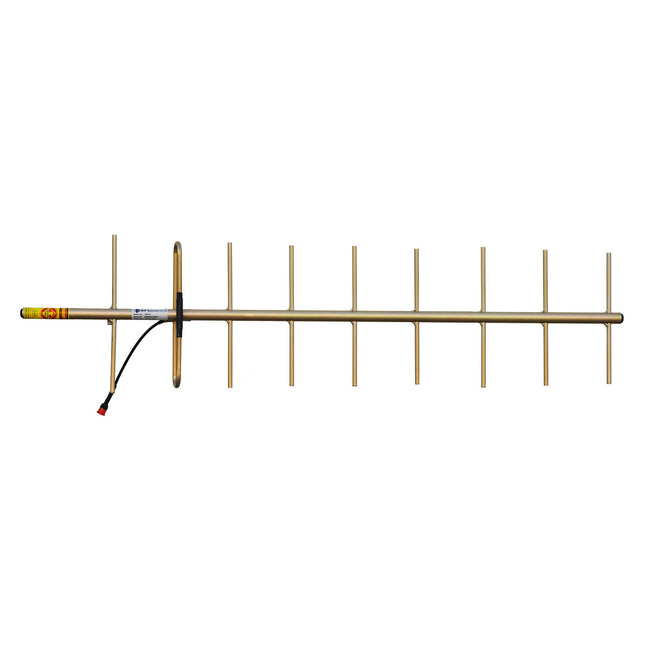

The RFI YB9-65 is a 9-element Yagi antenna designed for directional communication in the 400-420 MHz frequency range. With a gain of 13 dBi, it is ideal for RF systems requiring high directionality and reliability.

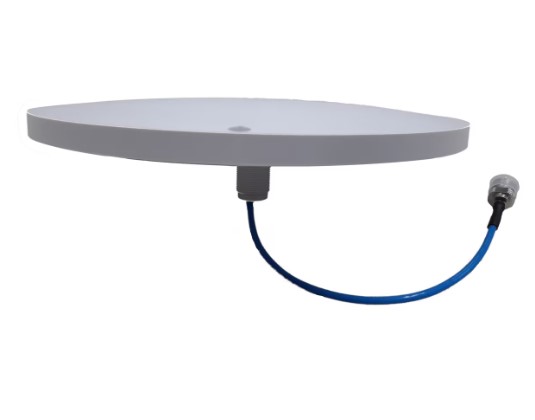

The RFI DAS3827LP-SOC150-N is a low-profile omni-directional ceiling antenna designed to operate across the 380-2700 MHz frequency range, providing reliable UHF/LTE coverage. It comes with N(F) type connector on 300mm tail.
These high gain base station antennas cover the 477MHz band and are ideal for extending radio coverage of your UHF CB radio.
Both these antennas are designed around RFI's leading patented Meander™ PCB technology incorporating excellent gain, pattern stability, and light weight construction, making these antennas a perfect fit for any base station installation.
The COL5000 comes with integrated N female connector.
The RFI YB6-61 is a 6-element high-gain Yagi antenna designed for directional communication in the 450-480 MHz frequency range. With a gain of 11 dBi, it is ideal for RF control, point-to-point links, and other applications requiring focused signal transmission and minimal interference.
The RFI YH02 is a 2-element Yagi antenna designed for directional communication across the 100-250 MHz frequency range. With a gain of 5 dBi, it is ideal for applications requiring focused signal transmission and controlled radiation patterns.
This Antenna Model HPM-RM-077083 is a helical roof-mount VHF antenna, supply factory tuned to cover 77 to 82 MHz frequency band at a VSWR of less than 1.8:1. Antenna gain is -3 dBq. The lower section of the antenna is a moulded former while the upper section is a helically wound stainless steel section providing a flexible antenna suitable for height restricted areas.
The RFI YBS806-82 is a 6-element stainless steel Yagi antenna designed for high-gain directional communication across the 850-960 MHz frequency range. With all-welded 316-grade stainless steel construction, this antenna is built to perform reliably in extreme and corrosive environments while maintaining low PIM and high signal integrity.
The RFI YB806-94 is a high-performance 6-element Yagi antenna designed for directional communication in the 890-960 MHz frequency range. It delivers 11 dBi of gain and is ideal for RF control, point-to-point, and point-to-multipoint applications.
The RFI YB9-61 is a 9-element high-gain Yagi antenna designed for directional communication in the 450-480 MHz frequency range. With a gain of 13 dBi, it is ideal for RF control, point-to-point links, and other applications requiring focused signal transmission and minimal interference.

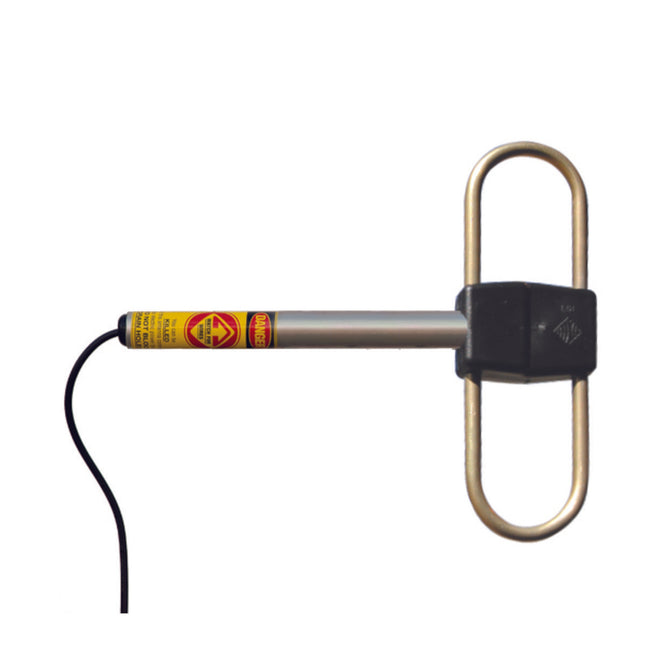

The SMD4 series are a range of unity gain side mounted dipoles which can be used as a single antenna for short range applications or, if desired, phased together to provide high gain array coverage characteristics.
RFI UHF Hand Portable Antenna HPA-4752-SMAF, designed for 470-520 MHz frequency range with SMA(F) connector. It is factory tuned for ease of installation.
RFI UHF Hand Portable Antenna HPA-4042-BNC, designed for 400-420 MHz frequency range with a BNC(M) connector. It is factory tuned for ease of installation.
The GP Series is a range of omnidirectional unity gain adjustable ground plane antennas ideal for local area coverage when a high gain antenna is not required or justified. The broad vertical beamwidth offers excellent null fill for consistent signal coverage. GP Series antennas are easily tuned in the field by adjusting the position of the ground plane elements.
COL7 is an omnidirectional UHF antenna made by RFI supporting operating bandwidth of 380-530 MHz with 3 dBb gain and suitable for single or duplex applications.

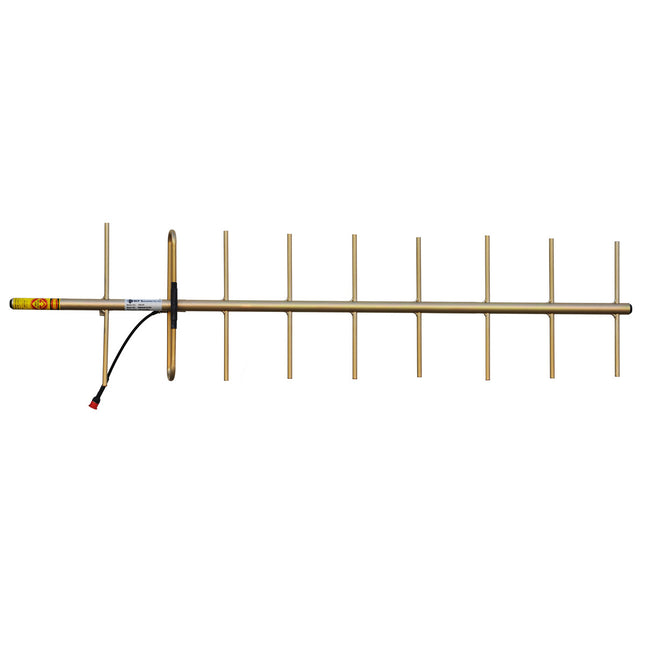

The RFI YB9-62 is a 9-element Yagi antenna offering 13 dBi gain for directional communication in the 480-520 MHz frequency range. It is built for high-performance RF applications requiring narrow beamwidth and minimal interference.
The RFI YB803-82 is a 3-element Yagi antenna designed for high-gain directional communication across the 850-930 MHz frequency range. Engineered for low Passive Intermodulation (PIM) and built with all-welded construction, this antenna is ideal for RF control, telemetry, and point-to-point or multipoint applications where signal clarity and durability are essential.
SMD4-99 is a specific frequency version of the SMD4. This antenna is designed only for use as a single dipole, not as a component of a phased dipole array as the antenna is custom made to user specified frequencies and is not specifically matched to a phasing harness
The SMD4 series are a range of unity gain side mounted dipoles which can be used as a single antenna for short range applications or, if desired, phased together to provide high gain array coverage characteristics.
The SMD2 Series side mounted dipoles are broad band antennas which, through different phasing and mounting arrangements can offer a variety of patterns (generally cardioid) tailored to specific coverage requirements. These antennas can be mounted in dual arrays for 3 dB gain, or four-stack arrays for 6 dB gain over a single dipole.
