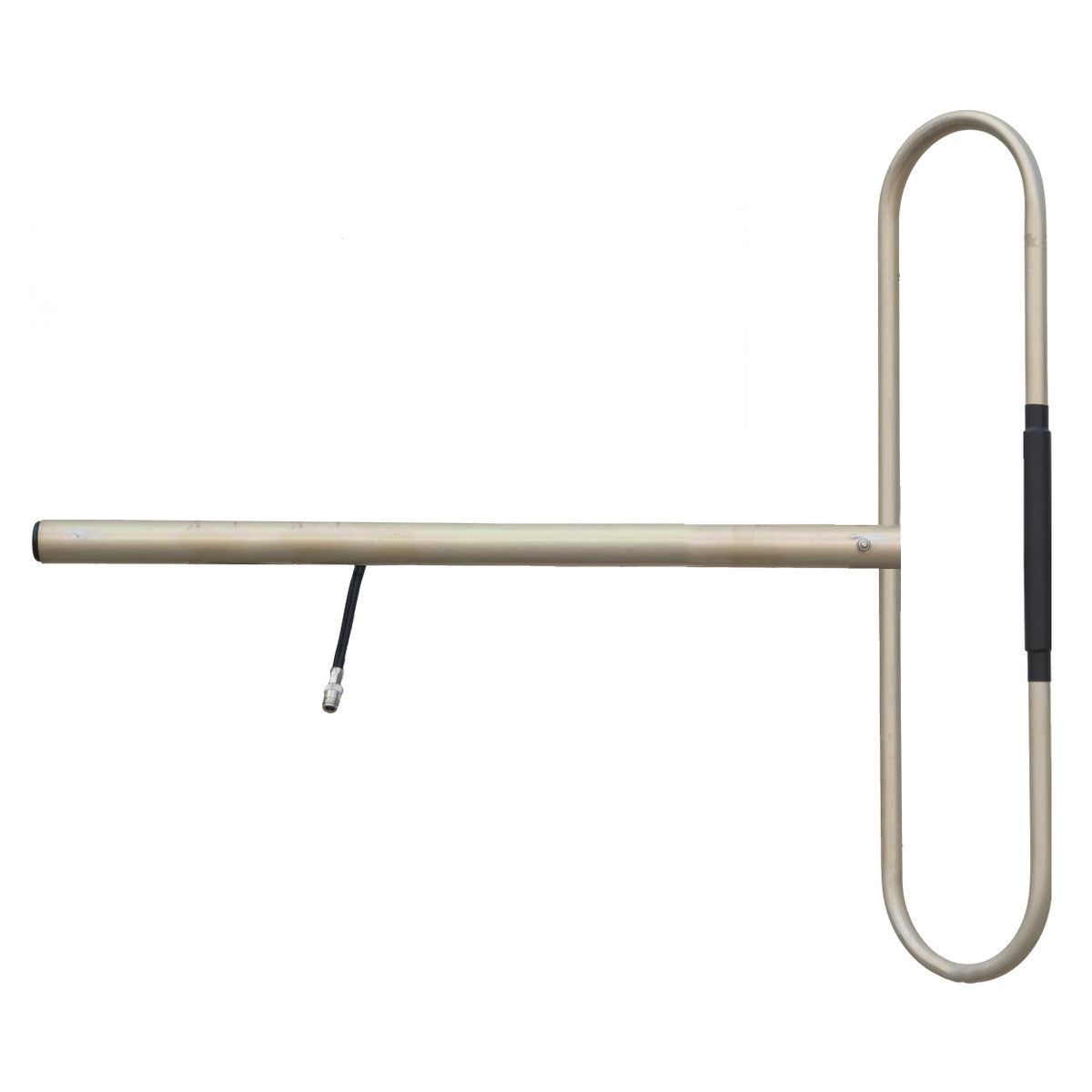

RFI SMD2-99 VHF Side Mounted Dipole Antenna, 108-200 MHz, N-Female - Custom Tuned

RFI SMD2-99 VHF Side Mounted Dipole Antenna, 108-200 MHz, N-Female - Custom Tuned

On backorder

Brand:
Item ID:
167016093
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SMD2-99
Send Request for Quote (RFQ) Discount Offers
VHF Side Mounted Dipole 108-200 MHz Custom Tuned can be mounted in dual arrays for 3 dB gain, or four-stack arrays for 6 dB gain over a single dipole.
Regular price $434.00
Regular price $0.00 Sale price $434.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

VHF Side Mounted Dipole 108-200 MHz Custom Tuned

The SMD2-99 is constructed of heavy gauge corrosion resistant anodised aluminium tubing with a high pressure cast aluminium hub assembly and stainless steel fittings. This combination provides an exceptionally strong antenna, suited for extreme weather conditions. The SMD22 is a ruggedised antenna featuring extremely heavy walled tubing, all welded aluminium construction and a black epoxy coating to aid in solar heat retention. The SMD24 is a stainless steel version and is ideal in corrosive marine environments. All of the antennas are electrically identical. SMD antenna construction allows for the entire antenna to rest at ground potential, making it highly recommended in lightning prone applications.

Features:

  • Can be phased to provide 3 dBd or 6 dBd gain, in a variety of patterns tailored to suit specific requirements. An extensive range of phasing harnesses available.
  • Full bandwidth coverage for both single antennas and phased arrays - ideal in community sites
  • High strength - SMD2 features anodised aluminium construction and high pressure cast aluminium centrepiece
  • Rugged and stainless steel versions also available
  • Normally available ex-stock for immediate delivery
  • Available in all stainless steel version designed for air band coverage (118-137 MHz) with a VSWR at <1.3:1 across this entire band
  • SMD20-36 and SMD20-41-DIN are a industry leading PIM rated (-150 dBc) antennas, providing low IM noise characteristics for optimum performance.

Documents:

RFI SMD2-99 Side Mounted Dipole Antenna - Datasheet
Phasing Yagi Antenna - Technical Guide

Product Specifications

MPN SMD2-99
Antenna application Base Station Antenna
Antenna cable type RG213
Antenna features Multi Band Capable, High Power Multi Channel
Antenna port connectors N (F)
Antenna type Side Mounted Dipoles
Brands RFI
Cable length m 0.1
Construction Thick walled aluminium with cast aluminium hub
Coverage type Directional
Frequency band VHF High Band 118-180 MHz
Frequency mhz 108-200
Height 3
Horizontal beamwidth Typically 230? at ? l antenna - mast spacing
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 200
Max gain dbd dbi 1
Mimo support No
Min frequency mhz 108
Min gain dbd dbi 1
Mount supported Clamp mount
Mount supported detailed UCR1, UCR2
Mounting area 300mm x 40mm diam. aluminium
No of antenna ports 1
Polarisation Vertical
Power w 250
Technologies supported VHF
Termination N female with RG213 cable tail
Tuned bandwidth 0.1
Vertical beamwidth Typically 74? at ? l antenna - mast spacing
Vswr <1.5:1
Width 3
Wind gust km h >240
