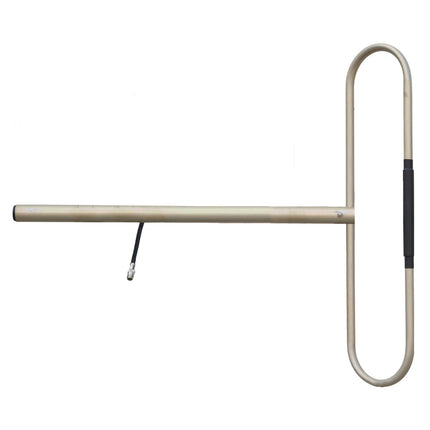

RFI SMD2-99 VHF Side Mounted Dipole Antenna, 108-200 MHz, N-Female - Custom Tuned

    RFI SMD2-99 VHF Side Mounted Dipole Antenna, 108-200 MHz, N-Female - Custom Tuned

      Product form

      VHF Side Mounted Dipole 108-200 MHz Custom Tuned can be mounted in dual arrays for 3 dB gain, or four-stack arrays for 6 dB gain over a single dipole.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167016093
      MPN
      SMD2-99
      Shipping
      Please contact us for lead time
      Standard Warranty Global Insurance Except USA & Canada

      $515.59

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay
        ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna design Design guide ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna designBefore you buy a two-way radio system, know which of the three ACMA paths it will run under: a class licence you never apply...Read the guide

        Product Description

        VHF Side Mounted Dipole 108-200 MHz Custom Tuned

        The SMD2-99 is constructed of heavy gauge corrosion resistant anodised aluminium tubing with a high pressure cast aluminium hub assembly and stainless steel fittings. This combination provides an exceptionally strong antenna, suited for extreme weather conditions. The SMD22 is a ruggedised antenna featuring extremely heavy walled tubing, all welded aluminium construction and a black epoxy coating to aid in solar heat retention. The SMD24 is a stainless steel version and is ideal in corrosive marine environments. All of the antennas are electrically identical. SMD antenna construction allows for the entire antenna to rest at ground potential, making it highly recommended in lightning prone applications.

        Features:

        • Can be phased to provide 3 dBd or 6 dBd gain, in a variety of patterns tailored to suit specific requirements. An extensive range of phasing harnesses available.
        • Full bandwidth coverage for both single antennas and phased arrays - ideal in community sites
        • High strength - SMD2 features anodised aluminium construction and high pressure cast aluminium centrepiece
        • Rugged and stainless steel versions also available
        • Normally available ex-stock for immediate delivery
        • Available in all stainless steel version designed for air band coverage (118-137 MHz) with a VSWR at 1.3:1 across this entire band
        • SMD20-36 and SMD20-41-DIN are a industry leading PIM rated (-150 dBc) antennas, providing low IM noise characteristics for optimum performance.

        Documents:

        RFI SMD2-99 Side Mounted Dipole Antenna - Datasheet
        Phasing Yagi Antenna - Technical Guide

        Product Specifications

        Brand RFI
        Length (cm) 150
        Width (cm) 20
        Height (cm) 20
        Antenna Application Base Station Antenna
        Antenna Cable Type RG213
        Antenna Features Multi Band Capable, High Power Multi Channel
        Antenna Port Connectors N (F)
        Antenna Type Side Mounted Dipoles
        Cable Length (m) 0.1
        Construction Thick walled aluminium with cast aluminium hub
        Coverage Type Directional
        Frequency [MHz] 108-200
        Frequency Band VHF High Band 118-180 MHz
        Horizontal Beamwidth Typically 230? at ? l antenna - mast spacing
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 200
        Max Gain (dBd/dBi) 1
        MIMO Support No
        Min Frequency (MHz) 108
        Min Gain (dBd/dBi) 1
        Mount Supported Clamp mount
        Mount Supported - Detailed UCR1, UCR2
        Mounting Area 300mm x 40mm diam. aluminium
        No. of Antenna Ports 1
        Polarisation Vertical
        Power [W] 250
        Technologies Supported VHF
        Termination N female with RG213 cable tail
        Tuned Bandwidth 0.1
        Vertical Beamwidth Typically 74? at ? l antenna - mast spacing
        VSWR 240
