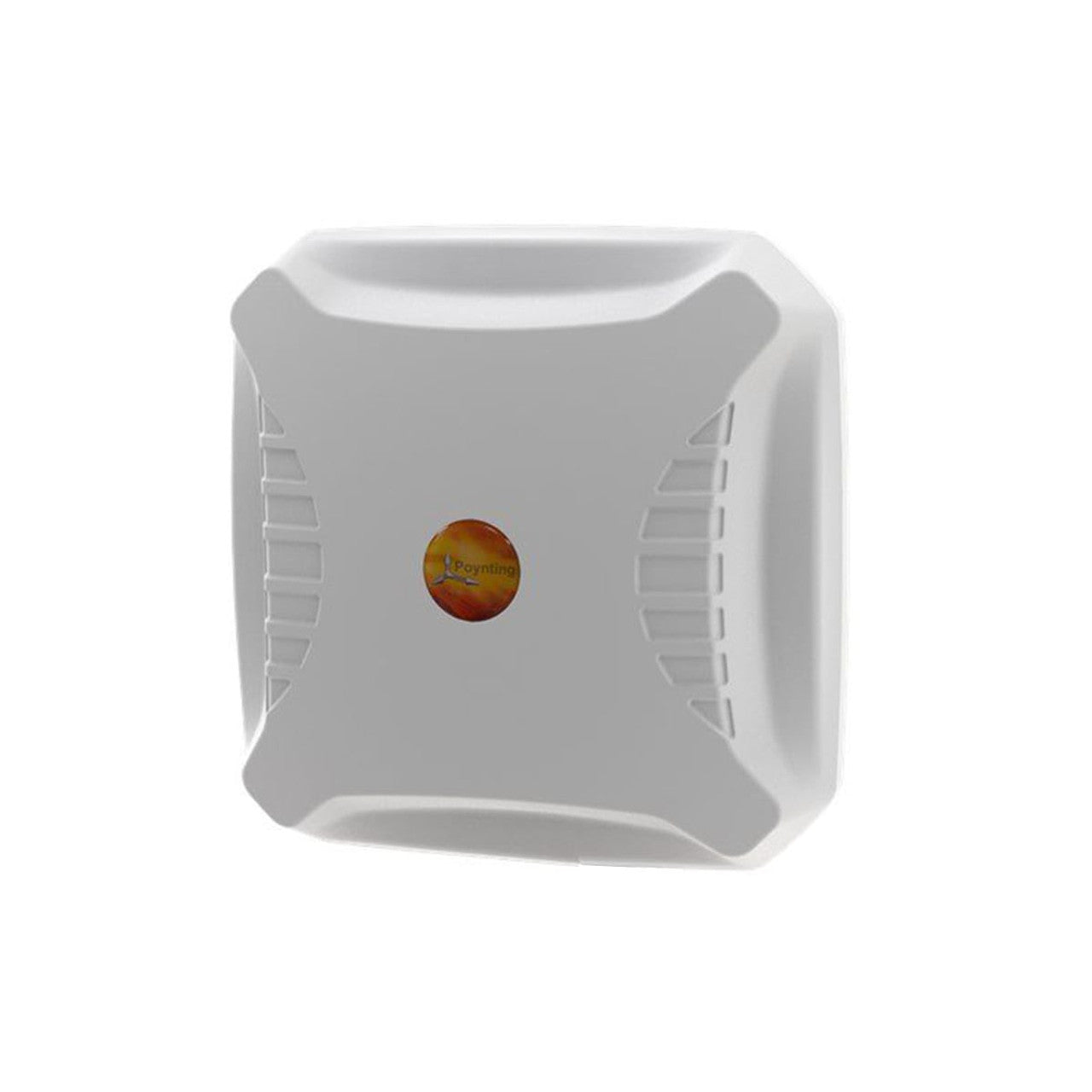

Poynting XPOL-2 5G Ultra-Wideband Antenna, 617-4200 MHz, 11 dBi, 10m, SMA-Male

Poynting XPOL-2 5G Ultra-Wideband Antenna, 617-4200 MHz, 11 dBi, 10m, SMA-Male

Available

Brand:
Item ID:
165022228
Export:
Accepted
Shipping:
Ships out in 3-4 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-XPOL-0002-V3-03
Send Request for Quote (RFQ)
Poynting XPOL-2 get exceptional performance over 4G/5G bands with MIMO LTE Antenna. High gain, wideband 2×2 MIMO, 10m HDF-195 coaxial cable with SMA(M)
Regular price $398.50
Regular price $0.00 Sale price $398.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting XPOL-2-5G is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2x2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna. The XPOL-2-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz. In addition to the new bands, the gain in the 1700 MHz and 2.7 GHz is around 3 dB higher than the “V2” over the same frequency bands! Our “V2” antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design. So, if it was a car, we installed an entirely new technology engine producing twice the power under the bonnet – it may look the same but just wait until you turn the ignition on!

Product Features:

  • The antenna employs advanced metamaterial technology to maximize performance in a compact design.
  • It delivers exceptional performance across the primary 4G and 5G frequency bands.
  • It achieves high gain relative to its compact size for superior signal reception.
  • The wideband 2×2 MIMO design supports both 4G and 5G networks for future-proof connectivity.
  • It is backwards compatible with 2G, 3G, and LTE networks while remaining fully 5G-ready.
  • The enclosure houses two cross-polarised antenna elements to optimize LTE performance under challenging conditions.
  • The weatherproof and dustproof IP65-rated enclosure also provides vandal resistance for reliable outdoor use.
  • It features an N-type female connector for flexible cable options (cable sold separately).

Application Areas:

  • It serves as an outdoor antenna for Fixed Wireless Access (FWA), making it ideal for use with devices such as the Telstra Netgear Nighthawk.
  • It enhances consumer LTE and 5G internet connectivity for home and small-business users.
  • It improves signal reception in both urban and rural household environments.
  • It facilitates LTE and 5G data distribution for agricultural and farming applications.
  • It provides reliable telemetry access for power, energy, and water utility networks.
  • It is suited for communication systems in oil and gas operations under harsh field conditions.
  • It supports municipal and government communication systems requiring dependable broadband links.
  • It can be paired with repeaters and coverage-enhancement amplifiers to extend network reach in challenging areas.

In the Box:

  • Poynting XPOL-2-5G, MPN A-XPOL-0002-V3

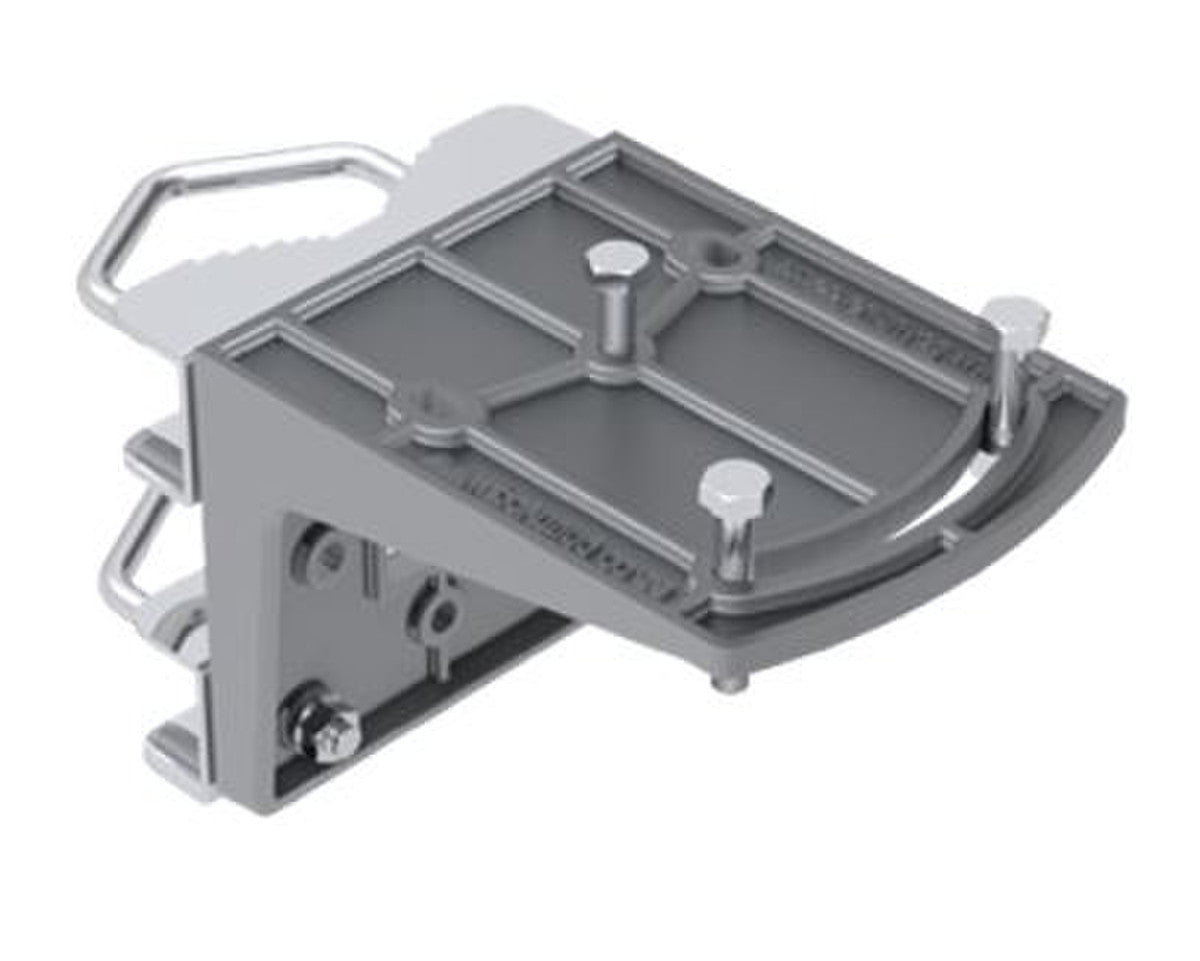

  • Z-shaped mounting bracket

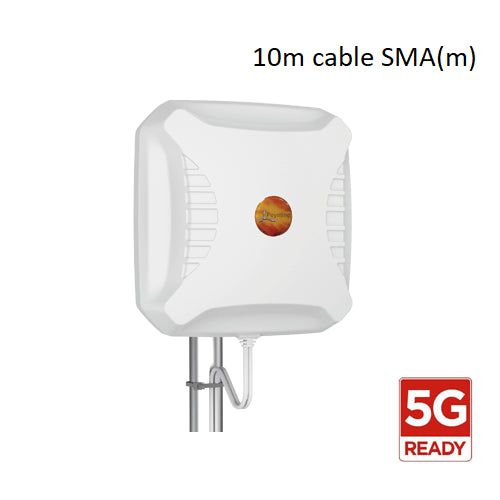

  • 10m HDF-195 coaxial cable with SMA(M) connector

Documents:

Poynting XPOL2 Antenna - Datasheet

Videos:

Poynting XPOL2 Antenna - Unboxing How to connect a Poynting XPOL-2 to a HUAWEI B535 Router
{# stores tokens like |ns.key| to avoid dupes #}

Product Specifications

MPN A-XPOL-0002-V3-03
Antenna cable type Twin HDF-195
Antenna port connectors SMA (M)
Brands Poynting
Cable length m 10
Coverage type Directional
Height 10
Ingress protection ip IP65
Installation type External mounting
GTIN/EAN 6009710920121
Length 37.5
Low pim No
Max frequency mhz 4200
Max gain dbd dbi 11
Mimo support Yes
Min frequency mhz 617
Min gain dbd dbi 9
Mount supported Bracket mount

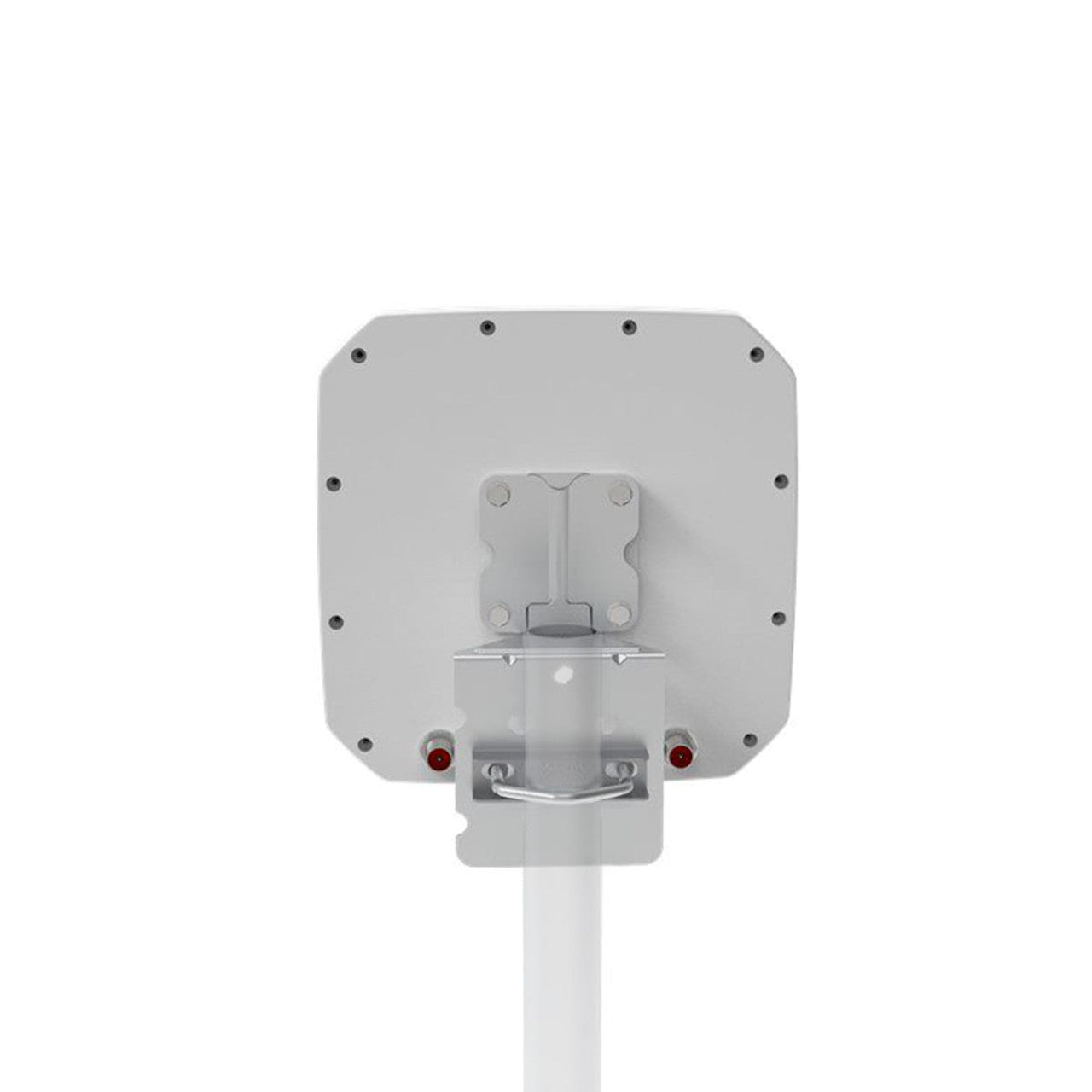

Mount supported detailed Z-bracket
No of antenna ports 2
Power w 10
Technologies supported 2G, 3G, 4G, 5G
Width 27
Wind gust km h ? 250
