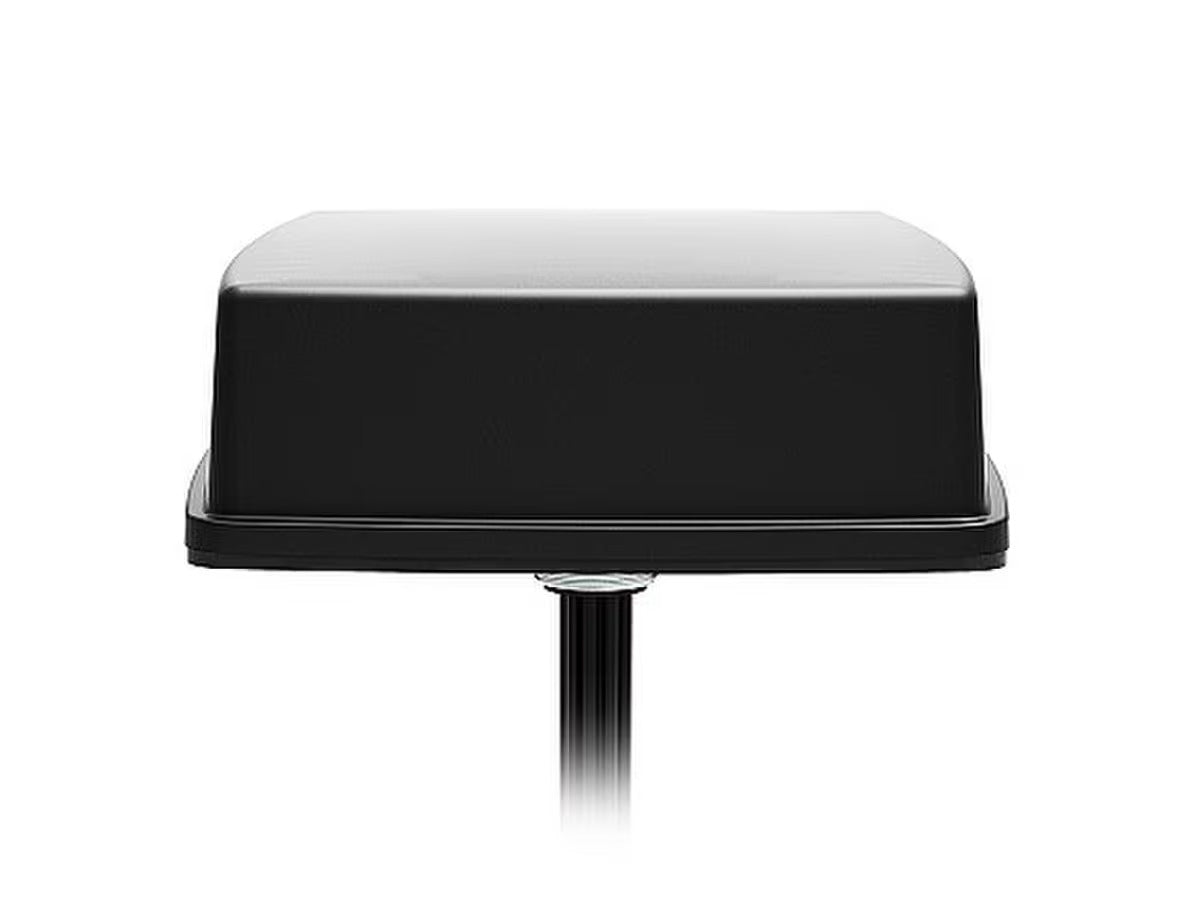

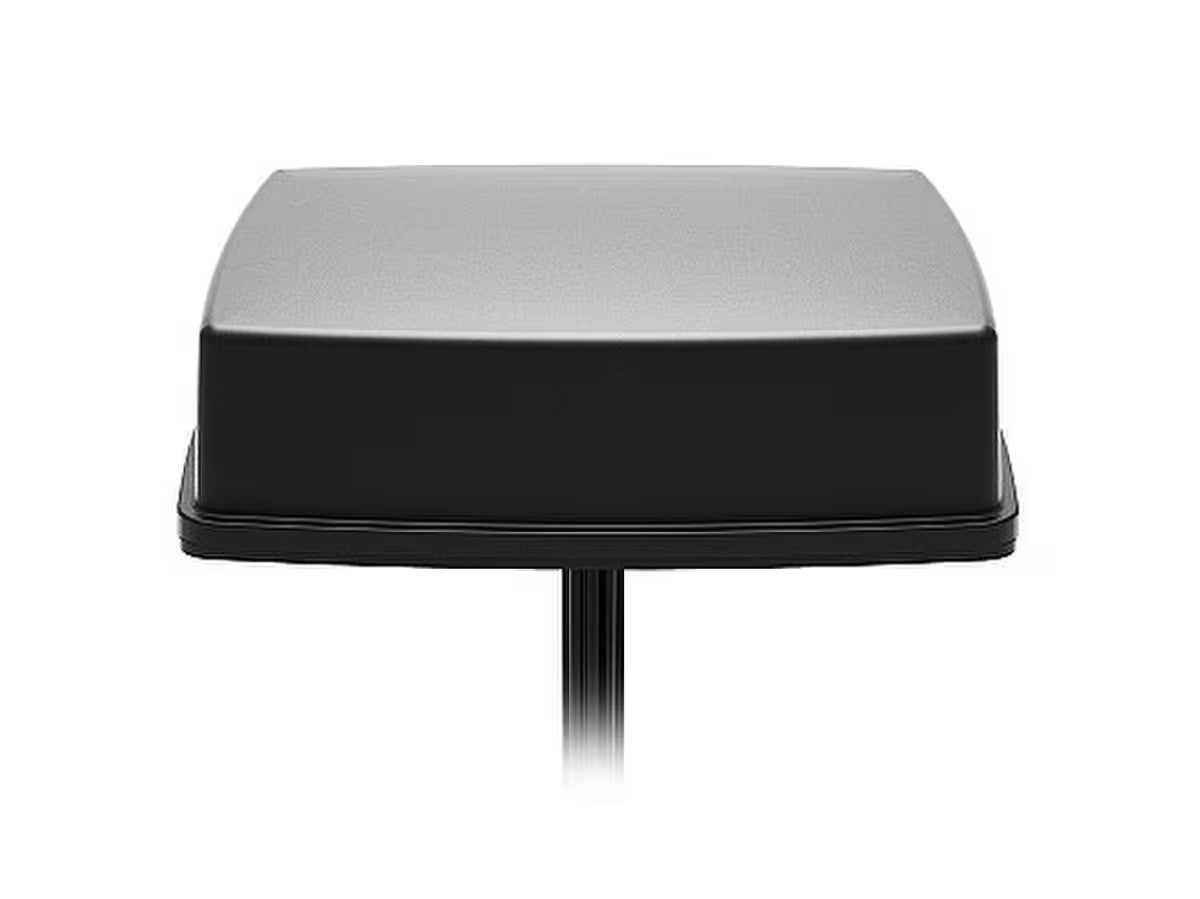

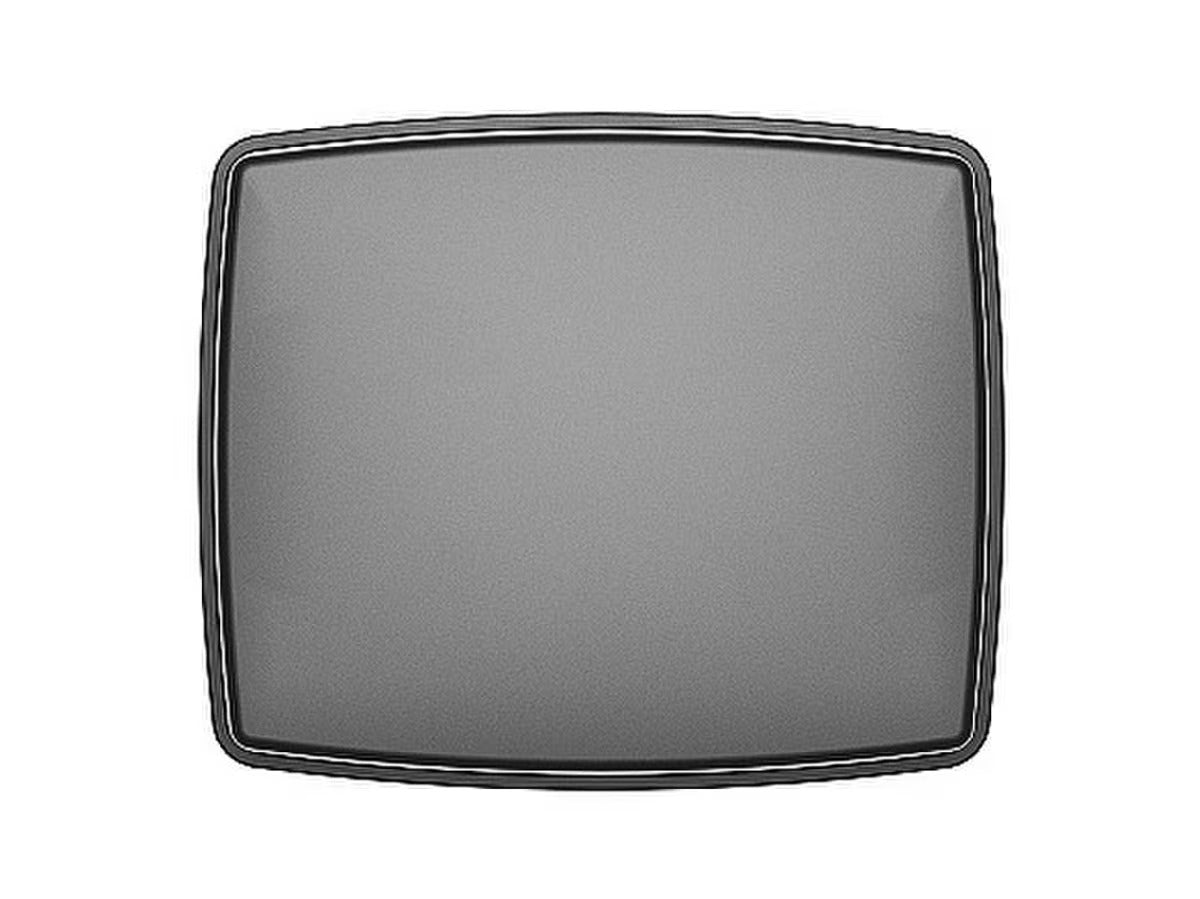

RFI Legion 6-in-1 Screw Mount Antenna, 4x 5GNR, 2x WiFi, 4x SMA-Male, 2x SMA-Male RP

RFI Legion 6-in-1 Screw Mount Antenna, 4x 5GNR, 2x WiFi, 4x SMA-Male, 2x SMA-Male RP

On backorder

Brand:
Item ID:
168069220
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LEGION-C4-W2-2M-SMA
Send Request for Quote (RFQ)
RFI LEGION 6-in-1 Screw Mount Antenna, 4x 5GNR, 2x WiFi, 4x SMA(M), 2x SMA(M) RP is an ideal solution for OEM manufactures, and emergency services.
Regular price $350.50
Regular price $0.00 Sale price $350.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The LEGION-C4-W2-2M-SMA 6-in-1 Combination antenna boasts 4x4 ultra-wideband cellular, and Multiband 2x2 MIMO Wi-Fi. The simple screw mount system makes mounting and installation simple and easy. This makes the Legion an ideal solution for OEM manufactures, and emergency services. The ultra wideband 4x4 MIMO cellular feeds cover 617-5925 MHz Sub 6GHz Bands allowing for the Legion MINI to be used with a wide variety of communication technologies. I0ncluding: 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards. The 2x2 MIMO Wi-Fi feed support 2.4/5.0/6.0 GHz allowing for Wi-Fi 6E and 7 support. With wideband cellular and Wi-Fi in a low profile compact radome the Legion is ideal for a variety of applications including:
  • Fixed wireless including Data Terminals, Base Stations and Routers
  • Utilities
  • IoT and M2M
  • Critical Communications and Public Safety (Law Enforcement & Fire Departments)


Product Specifications

Adapter included No
MPN LEGION-C4-W2-2M-SMA
Antenna application Terminal Antenna
Antenna port connectors SMA (M), SMA (M) RP
Antenna type Ground Independent
Band 698-960 MHz / 1710-2170 MHz / 2500-2700
Brands RFI
Cable type D302
Coverage type Omni-directional
Frequency range mhz 1710 - 2170, 2300 - 2700, 698 - 960
Height 2
Ingress protection ip IP67, IP69
Installation type Vehicle mounting
Length 5
Low pim No
Max frequency mhz 7125
Max gain dbd dbi 6.8
Mimo support Yes
Min frequency mhz 617
Min gain dbd dbi 1.1
Mount supported Screw mount
Mount supported detailed Device mount
No of antenna ports 6
Nominal gain dbi 3.6dBi / 3.2 dBi / 1.9 dBi (peak)
Packaging Clear Bag
Power w 25.0, 25
Radome diameter mm 50
Technologies supported Wi-Fi, 5G
Tuned bandwidth Full. No tuning required
Vswr < 2.5:1
Width 5
