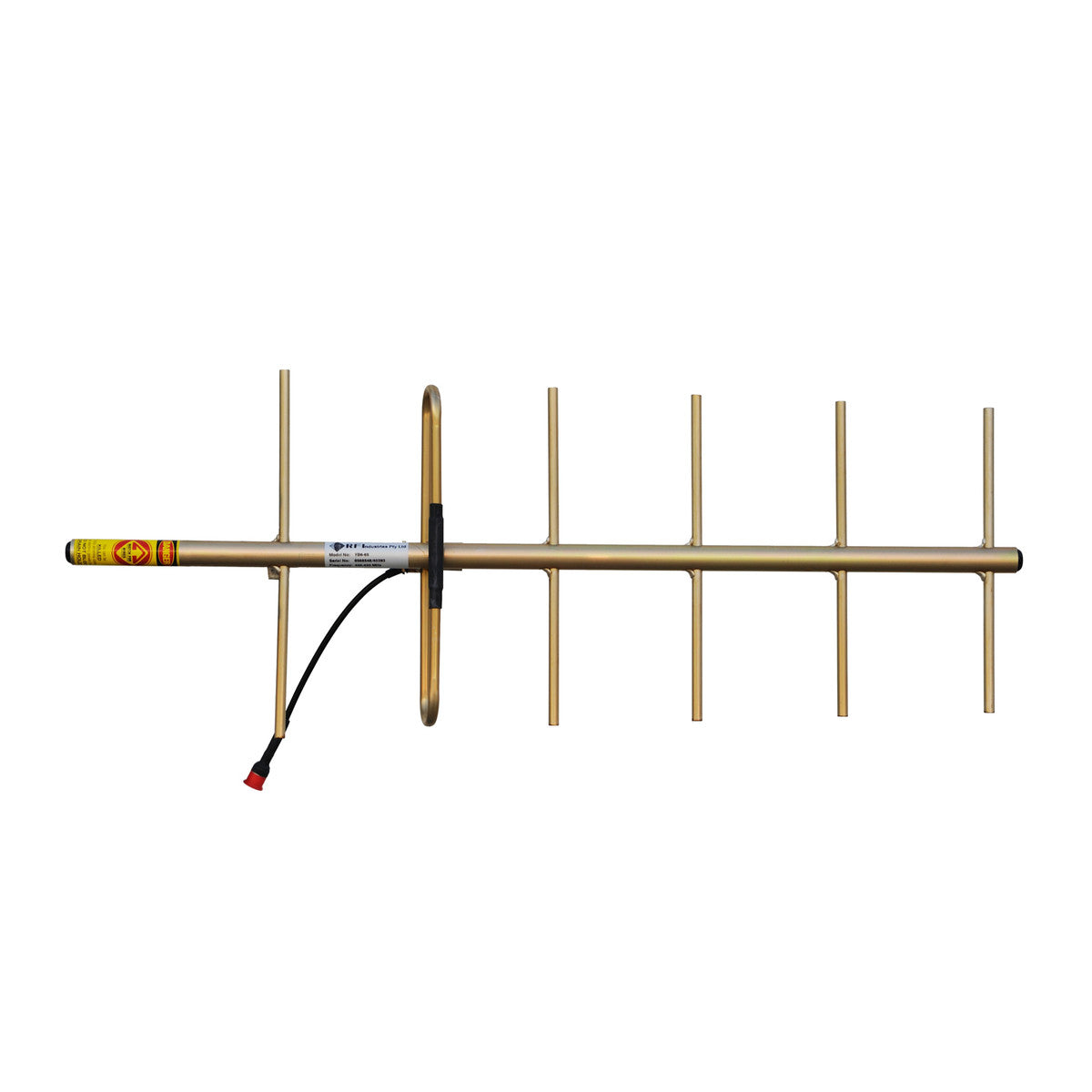

RFI YB6-61 6 Element Yagi Antenna, 450-480 MHz, 11 dBi

RFI YB6-61 6 Element Yagi Antenna, 450-480 MHz, 11 dBi

Available

Brand:
Item ID:
167016199
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YB6-61
Send Request for Quote (RFQ) Discount Offers
The RFI YB6-61 is a 6-element high-gain Yagi antenna designed for directional communication in the 450–480 MHz frequency range with a gain of 11 dBi.
Regular price $171.00
Regular price $0.00 Sale price $171.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YB6-61 is a 6-element high-gain Yagi antenna designed for directional communication in the 450–480 MHz frequency range. With a gain of 11 dBi, it is ideal for RF control, point-to-point links, and other applications requiring focused signal transmission and minimal interference.

Features:

  • The RFI YB6-61 antenna delivers 11 dBi gain, making it suitable for high-performance directional communication.
  • This antenna features narrow beamwidths and high front-to-back ratios to reduce interference from other systems.
  • The feed element is a full folded dipole, welded to the boom for maximum bandwidth and long-term reliability.
  • The passive elements are through-mounted and welded on both sides of the circular boom to minimize corrosion and intermodulation.
  • The all-welded construction ensures consistent and reliable performance in demanding environments.
  • The alodine finish provides a conductive surface for effective grounding.
  • The antenna supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
  • It includes DC grounding on all elements for lightning protection and static noise dissipation.
  • It is ideal for RF control, telemetry, and long or short-haul communication links.

Application Areas:

  • The antenna is ideal for point-to-point RF communication in control and telemetry systems.
  • This antenna is suitable for long-range or short-range directional links.
  • It is designed for use in environments where interference reduction and signal focus are critical.

In the Box:

  • 1x RFI YB6-61 6 Element Yagi Antenna

Documents:

RFI YB6-61 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide

Product Specifications

MPN YB6-61
Antenna application Base Station Antenna
Antenna cable type 9008
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded aluminium with alodined finish
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 450-480
Front back ratio db 18 (Typical)
Height 3
Horizontal beamwidth 56?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 480
Max gain dbd dbi 11
Mimo support No
Min frequency mhz 450
Min gain dbd dbi 11
Mount supported Clamp mount
Mount supported detailed UNV
Mounting area 100mm x 25mm diam. alodined aluminium
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9008 cable tail
Torque nm 24
Tuned bandwidth Full band
Vertical beamwidth 47?
Vswr <1.5:1
Width 3
Wind gust km h >240
Wind thrust 56
