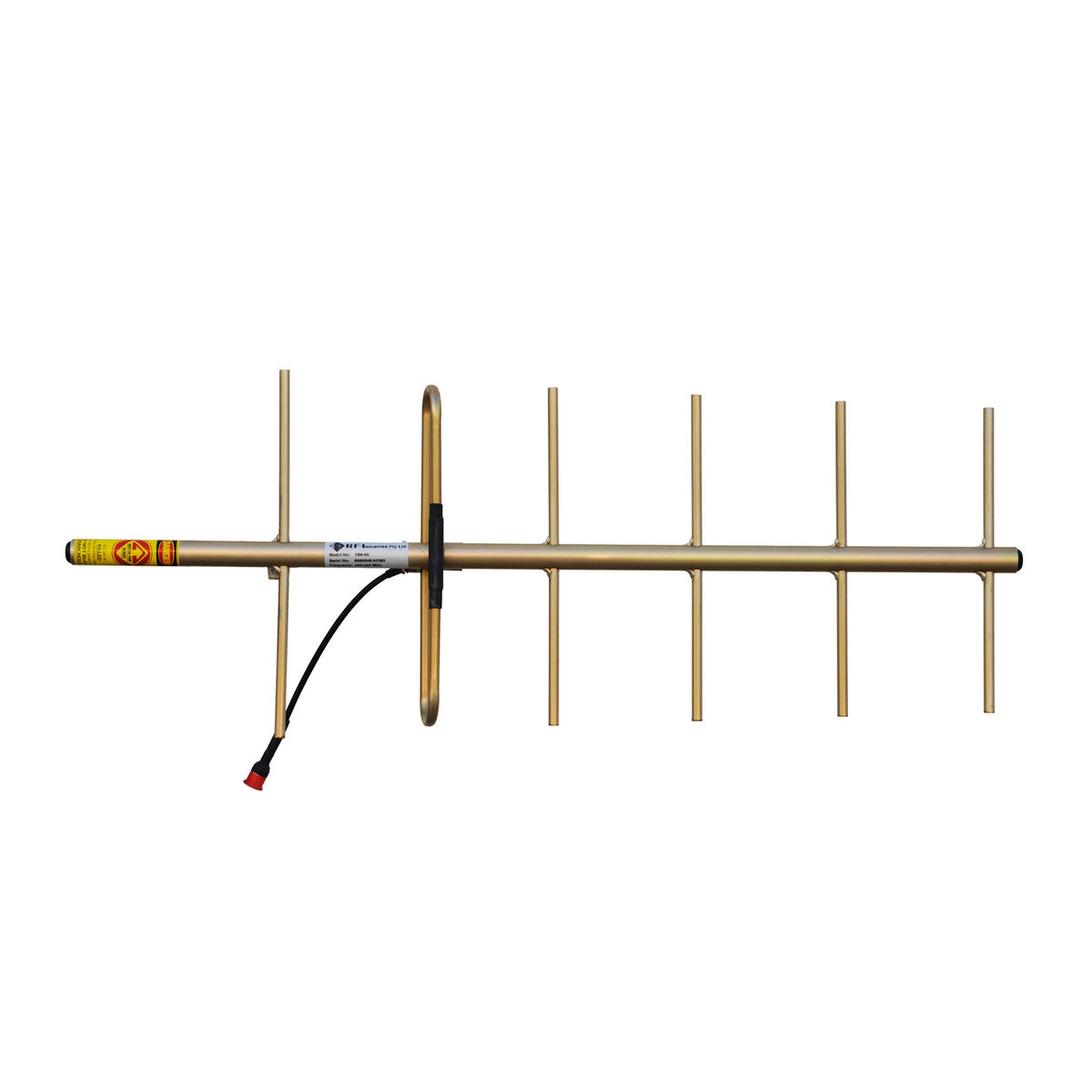

RFI YB6-65 6 Element Yagi Antenna, 400-420 MHz, 11 dBi

RFI YB6-65 6 Element Yagi Antenna, 400-420 MHz, 11 dBi

Available

Brand:
Item ID:
168016203
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YB6-65
Send Request for Quote (RFQ) Discount Offers
The RFI YB6-65 is a 6-element Yagi antenna designed for directional communication in the 400–420 MHz frequency range with a gain of 11 dBi.
Regular price $220.00
Regular price $0.00 Sale price $220.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YB6-65 is a 6-element Yagi antenna designed for directional communication in the 400–420 MHz frequency range. With a gain of 11 dBi, it is ideal for RF systems requiring high directionality and reliability.

Features:

  • The RFI YB6-65 antenna delivers 11 dBi gain for enhanced signal strength and range.
  • This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
  • The feed element is a full folded dipole, welded to the boom for maximum reliability.
  • The passive elements are through-mounted and welded on both sides to reduce corrosion and intermodulation.
  • The all-welded construction ensures consistent performance in harsh conditions.
  • The alodine finish provides a conductive surface for grounding.
  • It supports stacking or baying using PH and PHE series phasing harnesses.
  • The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.
  • It is suitable for RF control and long-haul communication links.

Application Areas:

  • The antenna is ideal for directional RF communication in control and telemetry systems.
  • This antenna is suitable for both short and long-haul point-to-point links.
  • It is designed for use in environments requiring high gain and interference mitigation.

In the Box:

  • 1x RFI YB6-65 6 Element Yagi Antenna

Documents:

RFI YB6-65 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide

Product Specifications

MPN YB6-65
Antenna application Base Station Antenna
Antenna cable type 9008
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded aluminium with alodined finish
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 400-420
Front back ratio db 18 (Typical)
Height 10
Horizontal beamwidth 56?
Installation type External mounting
Length 96
Low pim No
Max frequency mhz 420
Max gain dbd dbi 11
Mimo support No
Min frequency mhz 400
Min gain dbd dbi 11
Mount supported Clamp mount
Mount supported detailed UNV
Mounting area 100mm x 25mm diam. alodined aluminium
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9008 cable tail
Torque nm 22
Tuned bandwidth Full band
Vertical beamwidth 47?
Vswr <1.5:1
Width 36
Wind gust km h >240
Wind thrust 57
