RFI ISM9 Dome Antenna for ISM, LoRa, and SIGFOX - 868-928 MHz, 1.5m, SMA-Male

RFI ISM9 Dome Antenna for ISM, LoRa, and SIGFOX - 868-928 MHz, 1.5m, SMA-Male

Available

Brand:
Item ID:
168016017
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
ISM9-SDA-1.5M-SMA
Send Request for Quote (RFQ) Discount Offers
RFI ISM9 Dome Antenna provides excellent coverage for ISM, GSM, LoRa and SIGFOX applications over 868 MHz to 928 MHz frequency range.
Regular price $102.00
Regular price $0.00 Sale price $102.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

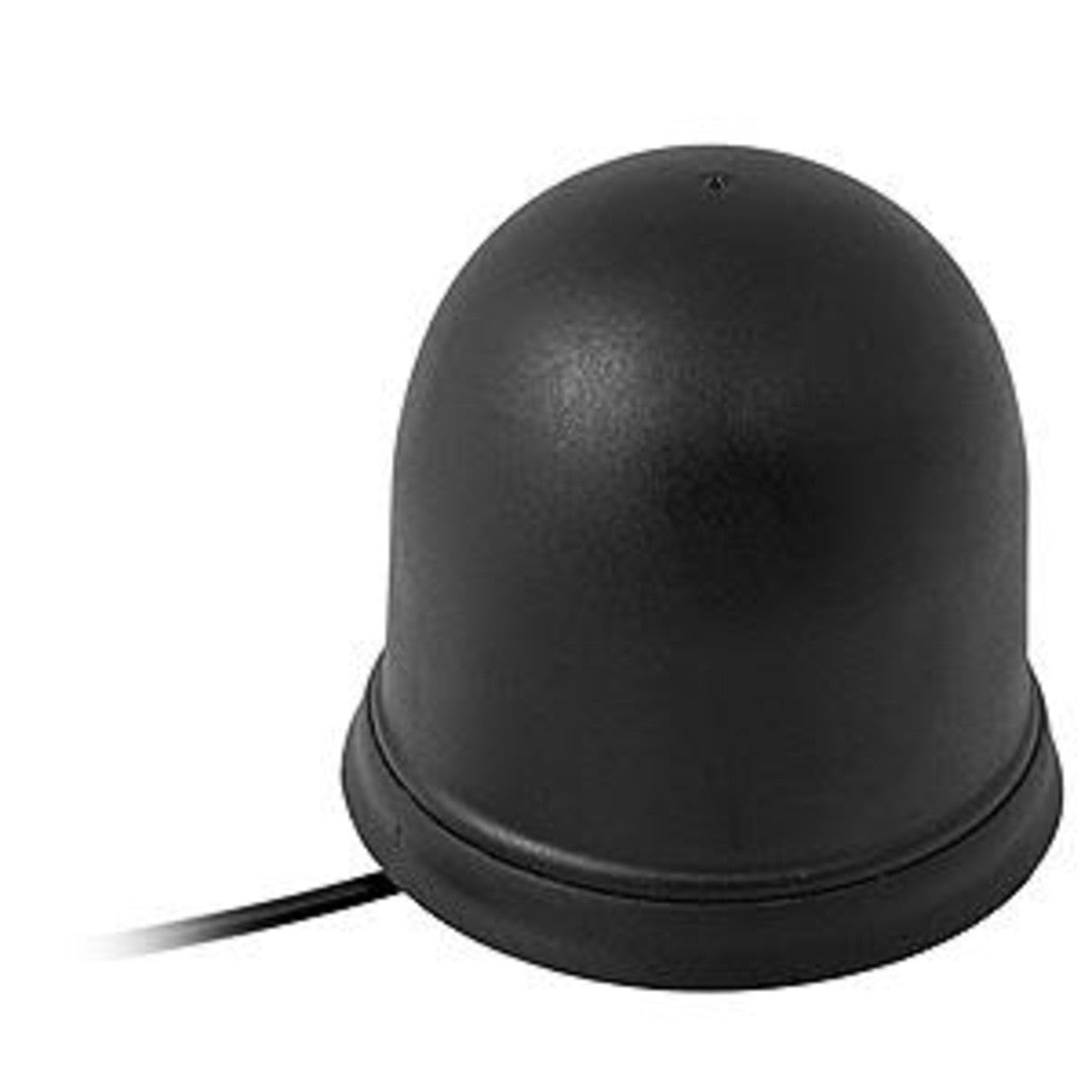

The RFI ISM9 Dome Antenna is a durable and compact omni-directional antenna designed for 915 MHz ISM band applications. It offers exceptional coverage for ISM, GSM, LoRa, and SIGFOX. Its robust construction and attractive design make it suitable for both indoor and outdoor use.

Product Features:

  • Designed for outdoor use, the polycarbonate radome offers durability and protection from environmental elements.
  • Low-profile design ensures maximum overhead clearance, making it suitable for various installation environments.

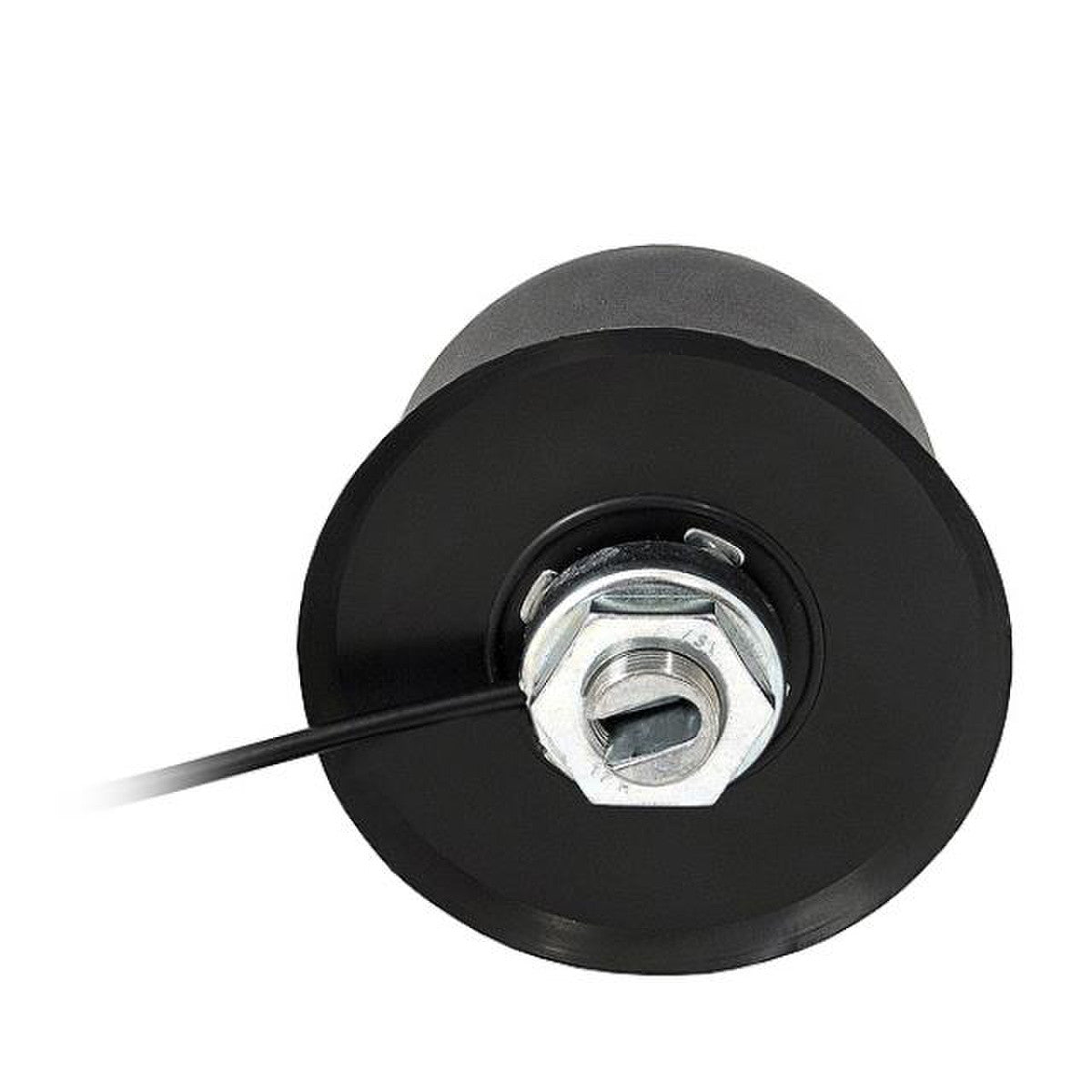

  • Easily mounted using an M14 stud/nut, providing convenience and secure installation.
  • IP67-rated for excellent protection against dust and water ingress, ensuring reliable performance in harsh conditions.

Electrical Specifications:

  • Band: GSM and 915 MHz ISM
  • Frequency MHz: 868-928
  • Gain dBi: 4 (Measure on a 300 mm x 300 mm ground plane)
  • VSWR: <2.0:1
  • Impedance Ω: 50
  • Power W: 50
  • Polarization: Vertical

Mechanical Specifications:

  • Material: ABS
  • Colour: Black
  • Ingress rating: IP67 / IK09 / IP69K

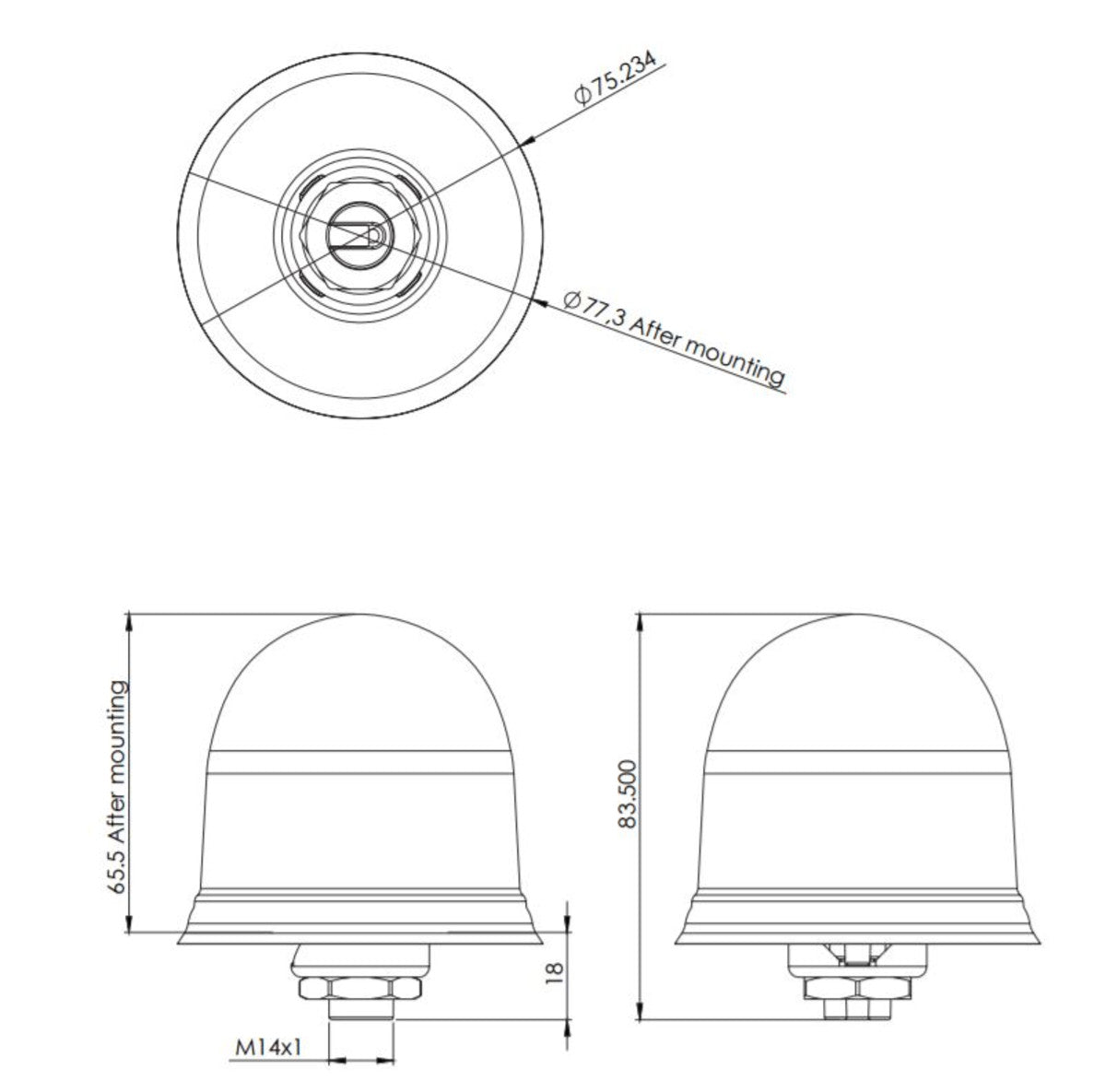

  • Dimensions mm: 77.3 (dia.) x 66.5 (H)
  • Weight grams: 110
  • Cable / Connector: 1.5m RG174 cable terminated with SMA male connector
  • Operating Temp °C: -40 to +85

Documents:

RFI ISM9-SDA-1.5M-SMA Antenna - Datasheet

Product Specifications

MPN ISM9-SDA-1.5M-SMA
Antenna application Terminal Antenna
Antenna cable type RG174
Antenna configuration SISO
Antenna port connectors SMA (M)
Brands RFI
Cable and connector 1.5m RG174 terminated with SMA (M) connector
Cable length m 1.5
Construction ABS plastic radome
Coverage type Omni-directional
Frequency band ISM Bands 300, 400 & 8/900 MHz
Frequency mhz 868-928
Height 6.5
Ingress protection ip IP67
Installation type Internal or external mounting
Ip rating IP67
Length 8
Low pim No
Max frequency mhz 928
Max gain dbd dbi 4
Mimo support No
Min frequency mhz 868
Min gain dbd dbi 4
Mount supported Stud mount
Mount supported detailed Stud mount
No of antenna ports 1
Nominal gain dbi 4
Packaging Clear Bag
Polarisation Linear
Power w 50
Radome diameter mm 77.3mm
Technologies supported 2G, ISM
Temperature range c -40 to +85
Tuned bandwidth Full. No tuning required
Vswr <2.0:1
Width 8
