RFI ISM9 Dome Antenna for ISM, LoRa, and SIGFOX - 868-928 MHz, 1.5m, SMA-Male

    RFI ISM9 Dome Antenna for ISM, LoRa, and SIGFOX - 868-928 MHz, 1.5m, SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168016017
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      ISM9-SDA-1.5M-SMA
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI ISM9 Dome Antenna provides excellent coverage for ISM, GSM, LoRa and SIGFOX applications over 868 MHz to 928 MHz frequency range.

      Available

      $102.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

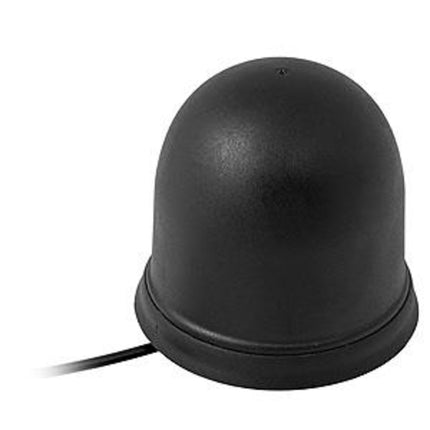

        The RFI ISM9 Dome Antenna is a durable and compact omni-directional antenna designed for 915 MHz ISM band applications. It offers exceptional coverage for ISM, GSM, LoRa, and SIGFOX. Its robust construction and attractive design make it suitable for both indoor and outdoor use.

        Product Features:

        • Designed for outdoor use, the polycarbonate radome offers durability and protection from environmental elements.
        • Low-profile design ensures maximum overhead clearance, making it suitable for various installation environments.

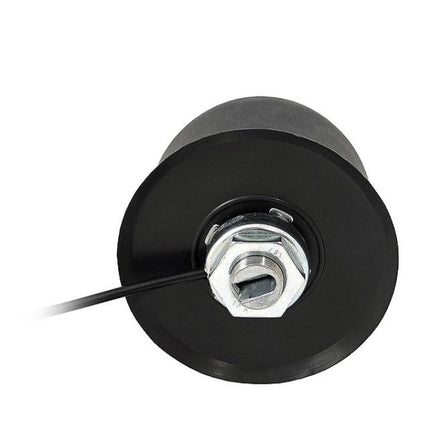

        • Easily mounted using an M14 stud/nut, providing convenience and secure installation.
        • IP67-rated for excellent protection against dust and water ingress, ensuring reliable performance in harsh conditions.

        Electrical Specifications:

        • Band: GSM and 915 MHz ISM
        • Frequency MHz: 868-928
        • Gain dBi: 4 (Measure on a 300 mm x 300 mm ground plane)
        • VSWR: <2.0:1
        • Impedance Ω: 50
        • Power W: 50
        • Polarization: Vertical

        Mechanical Specifications:

        • Material: ABS
        • Colour: Black
        • Ingress rating: IP67 / IK09 / IP69K

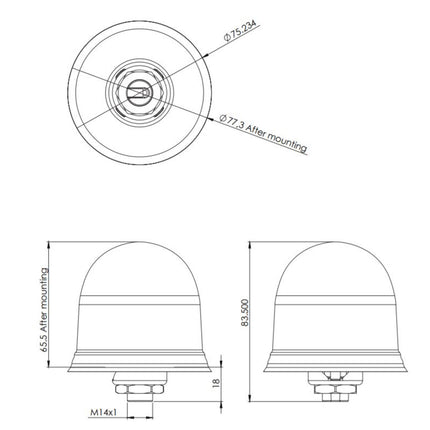

        • Dimensions mm: 77.3 (dia.) x 66.5 (H)
        • Weight grams: 110
        • Cable / Connector: 1.5m RG174 cable terminated with SMA male connector
        • Operating Temp °C: -40 to +85

        Documents:

        RFI ISM9-SDA-1.5M-SMA Antenna - Datasheet

        Product Specifications

        MPN ISM9-SDA-1.5M-SMA
        Antenna application Terminal Antenna
        Antenna cable type RG174
        Antenna configuration SISO
        Antenna port connectors SMA (M)
        Brands RFI
        Cable and connector 1.5m RG174 terminated with SMA (M) connector
        Cable length m 1.5
        Construction ABS plastic radome
        Coverage type Omni-directional
        Frequency band ISM Bands 300, 400 & 8/900 MHz
        Frequency mhz 868-928
        Height 6.5
        Ingress protection ip IP67
        Installation type Internal or external mounting
        Ip rating IP67
        Length 8
        Low pim No
        Max frequency mhz 928
        Max gain dbd dbi 4
        Mimo support No
        Min frequency mhz 868
        Min gain dbd dbi 4
        Mount supported Stud mount
        Mount supported detailed Stud mount
        No of antenna ports 1
        Nominal gain dbi 4
        Packaging Clear Bag
        Polarisation Linear
        Power w 50
        Radome diameter mm 77.3mm
        Technologies supported 2G, ISM
        Temperature range c -40 to +85
        Tuned bandwidth Full. No tuning required
        Vswr <2.0:1
        Width 8
