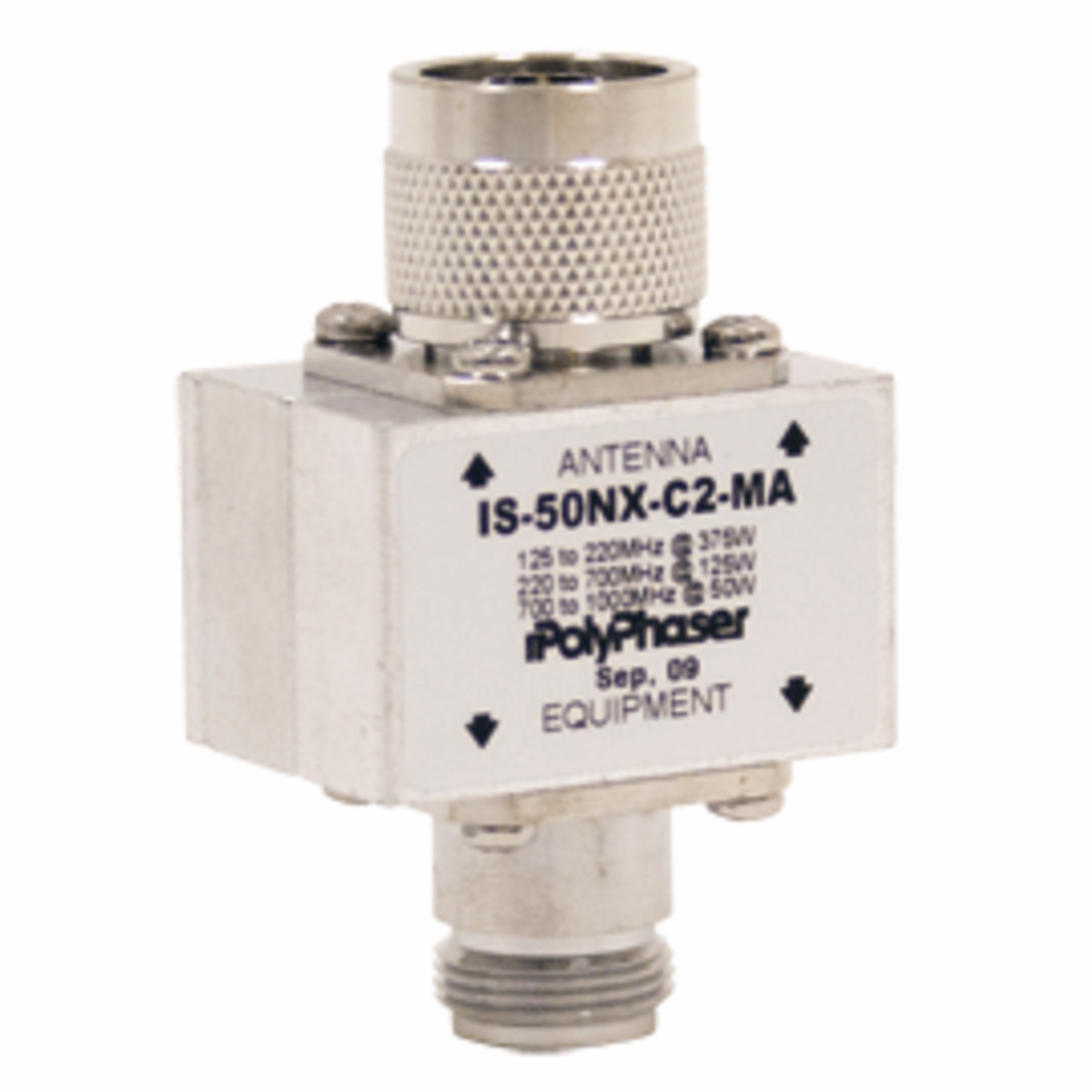

The PolyPhaser IS-50NX-C2-MA RF Surge Protector is designed to protect RF equipment operating within the 125 MHz to 1 GHz frequency range. This surge protector integrates an RF blocking capacitor with a gas tube (GT or GDT) and is manufactured in a coaxial in-line design, ensuring effective protection against electrical transient surges.

Product Features:

• This surge protector supports a surge current of 20kA.
• The device has a maximum power rating of 375W.
• It operates within a frequency range from 125 MHz to 1000 MHz.
• The surge protector features N Male to N Female connectors.
• It offers a VSWR of less than 1.1:1.
• The device has multi-strike capability for enhanced durability.
• It is CE and RoHS compliant.
• The surge protector integrates an RF blocking capacitor with a gas tube (GT or GDT).
• It is designed in a coaxial in-line configuration for wide operating frequency range.

Application Areas:

• This surge protector is ideal for HF, UHF, and VHF radios.
• The device is suitable for ham radios.
• It is perfect for remote industrial monitoring applications.
• The surge protector is beneficial for any setup requiring reliable RF protection.

In the Box:

• 1x PolyPhaser IS-50NX-C2-MA RF Surge Protector

Documents:

PolyPhaser IS-50NX-C2-MA Surge Protector - Datasheet PolyPhaser IS-50 Series RF Surge Protector - Datasheet
