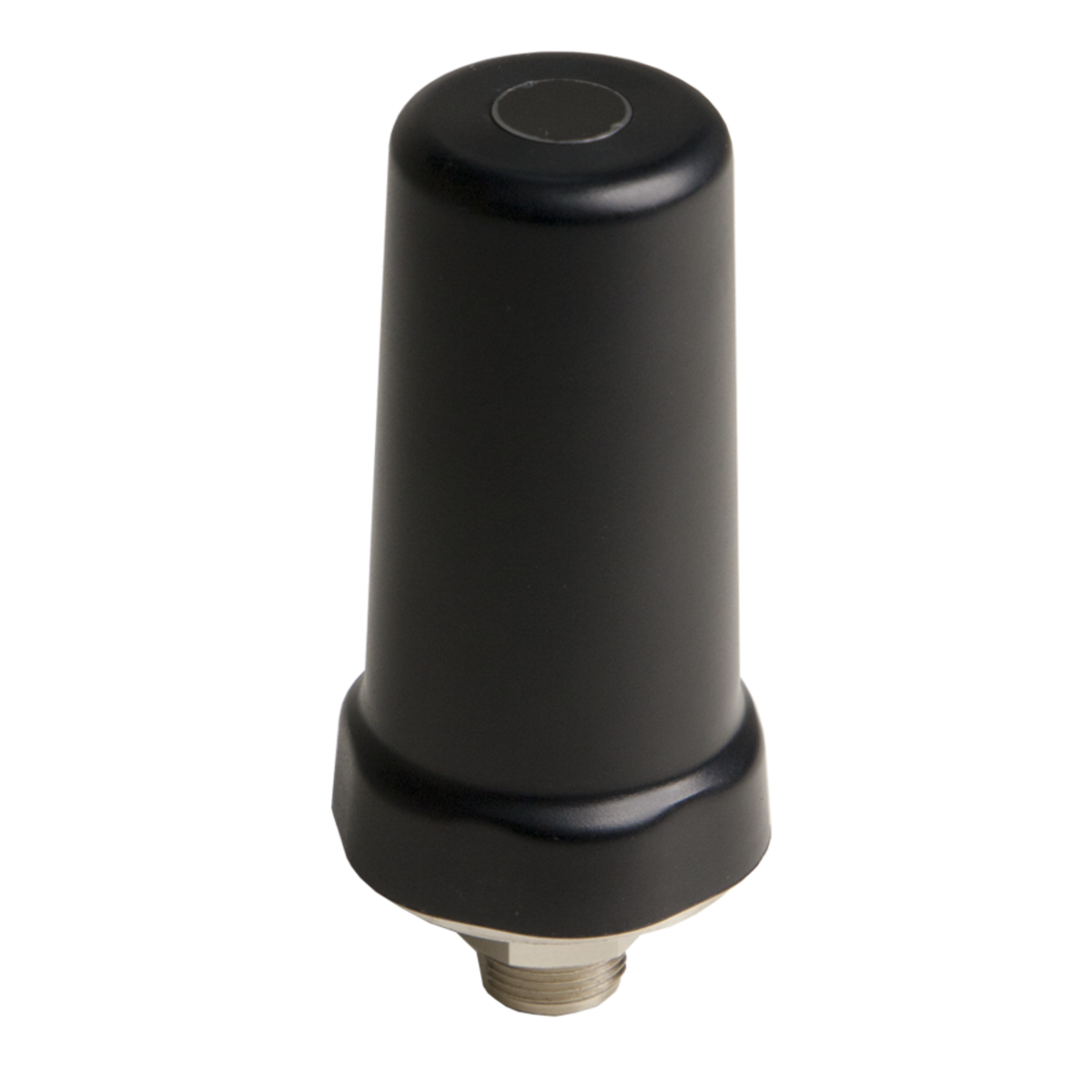

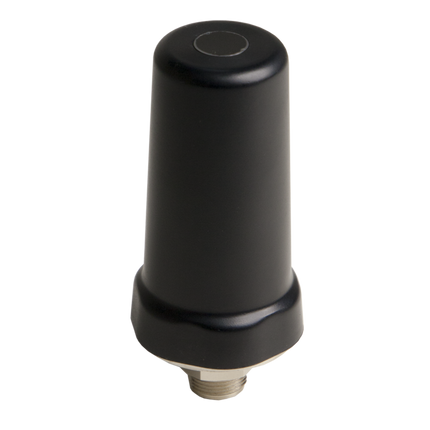

RFI CSM700-N Compact 4G+5G M2M/IoT Antenna - 698-3800 MHz, Stud Mount, Integrated N-Female, No Cable

RFI CSM700-N Compact 4G+5G M2M/IoT Antenna - 698-3800 MHz, Stud Mount, Integrated N-Female, No Cable

Available

Brand:
Item ID:
168014150
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CSM700-N
Send Request for Quote (RFQ) Discount Offers
CSM700 is a compact, omni-directional, ground-independent antenna from RFI designed for M2M/IoT, fixed data and mobile applications. It operate over 698 MHz to 3800 MHz frequency range with a maximum antenna gain of 5 dBi. It's IP65 rated and can be used for both indoor and outdoor applications. This model CSM700-N has an integrated Type-N Female connector; no cable is fitted.
Regular price $85.00
Regular price $109.00 Sale price $85.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

CSM700 is a compact, omni-directional, ground-independent antenna from RFI designed for M2M/IoT, fixed data and mobile applications. It operate over 698 MHz to 3800 MHz frequency range with a maximum antenna gain of 5 dBi. It's IP65 rated and can be used for both indoor and outdoor applications. This model CSM700-N has an integrated Type-N Female connector; no cable is fitted.

Product Features:

  • Wide Frequency Range: Exceptional coverage from 698 MHz to 3.8 GHz for optimal connectivity.
  • Durable Polycarbonate Radome: Ideal for outdoor use, providing longevity and robust performance.
  • Attractive Low-Profile Design: Maximizes overhead clearance while maintaining an appealing aesthetic.
  • Stud Mount with Integrated Rubber O-ring Seal: Facilitates easy field installation and enhances weather resistance.
  • Ingress Protection (IP65): Shields against environmental factors, ensuring durability in challenging conditions.
  • Custom Configurations: Other cable/connector configurations available upon request.

Applications:

This antenna is widely on transport systems, ticketing systems, ATM machines and vending machines.

Installation:

The antenna can be installed on a 16 mm stud mounting hole. It can fit to IoT routers having SMA-Female ports.

In the Box:

  • 1x CSM700-N compact antenna with integrated N-Female connector

Documents:

RFI CSM700-N Antenna - Datasheet

Product Specifications

Height 6
Length 9.5
Width 8
MPN CSM700-N
Antenna application Terminal Antenna
Antenna features Omnidirectional
Antenna port connectors N (F)
Antenna type Ground Independent
Brands RFI
Connector SMA(M)
Construction UV Stable Black Polycarbonate Radome
Coverage type Omni-directional
Frequency band Multi-Band 700-2700 MHz
Frequency mhz 698-960|1710-2170|2300-2700|3500-3800
Installation type Internal or external mounting
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 5
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 2
Mount supported Stud mount
Mount supported detailed Stud mount
No of antenna ports 1
Nominal gain dbi 2 / 3.5 / 5 / 5
Packaging Clear Bag
Polarisation Vertical
Power w 10
Radome diameter mm 50mm
Technologies supported 4G, 5G
Tuned bandwidth Full. No tuning required
Vswr <2.0:1
Whip length mm 95
Variant mpn CSM700-N
Product category Antennas
