Cel-Fi GO G51 is a robust 5G repeater offering up to 100 dB of signal boost to improve 3G, 4G and 5G cellular signals in large residential and medium-sized commercial spaces. It can cover up to 2000 sq. meters of area making is the best 4G & 5G coverage improvement solution. Approved by ACMA for use on Telstra, Optus and Vodafone networks, Cel-Fi G51 is ideal for areas with access to a 5G NR-3500 signal to maximize 5G coverage indoors, enhance data speed and reduce dropped calls.

Our DIY included low-loss Pulse 400 (LMR400) cables & connectors. Due to their high-quality standard, you can draw maximum performance out of the Cel-Fi G51 unit. Pulse 400 is a very flexible cable and makes installation very easy.

Note: G51 has a relay bandwidth of 100 MHz + 20 MHz and supports up to two bands. 100 MHz is here is for 5G-NR and 20 MHz for 4G-LTE (typical 3GPP NSA configuration). If there is no 5G-NR to improve, the relay bandwidth shrinks to a mere 20 MHz. Hence in a scenario of no 5G coverage on 3500 MHz band in your area, it's recommended to consider Cel-Fi G41 model instead.

Need our help for a desktop study? Contact us for a quote.

Band Support:

• Click here to check Telstra coverage map.
• Click here to check Optus coverage map
• Click here to check Vodafone coverage map

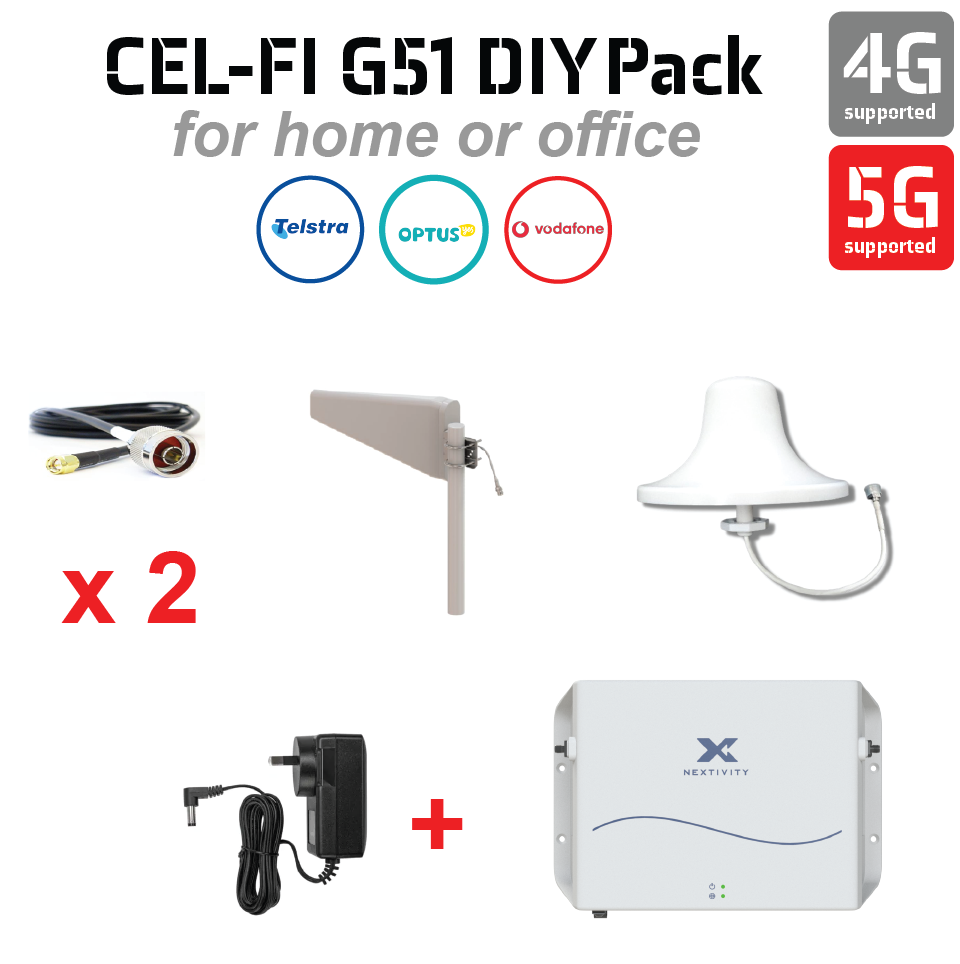

About Our LPDA Pack:

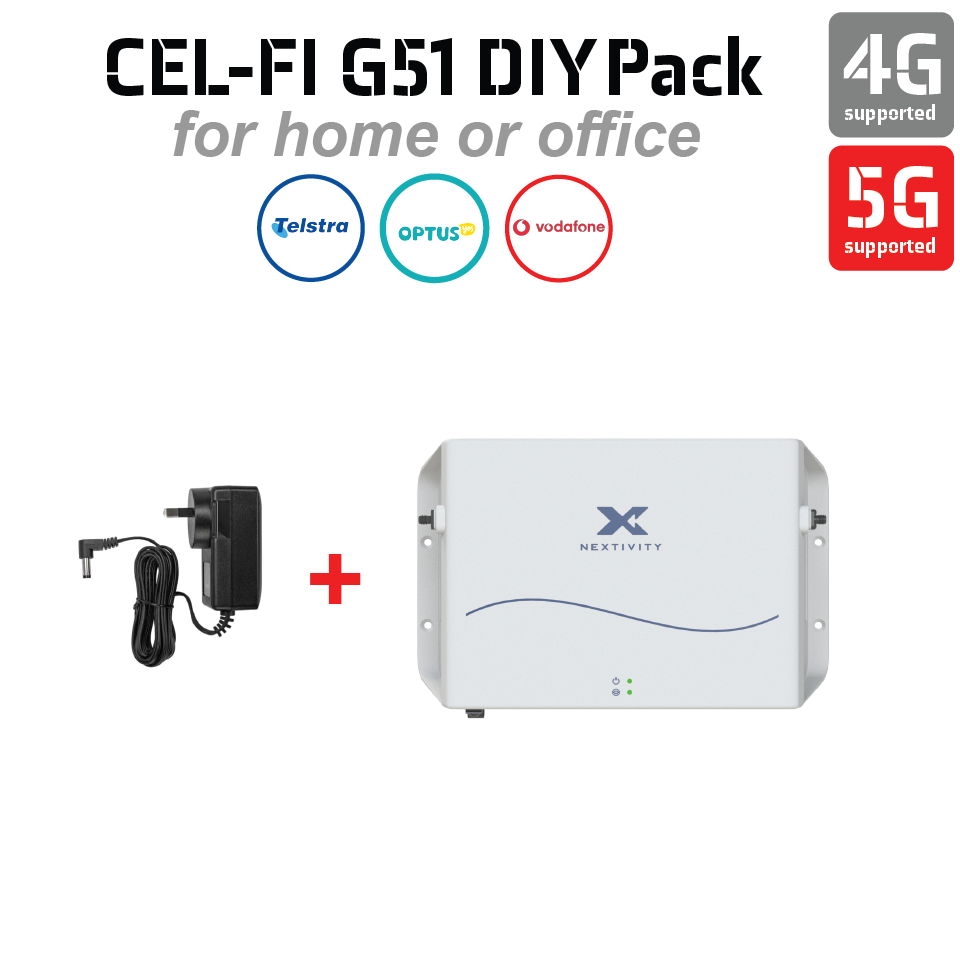

• 1x Nextivity Cel-Fi GO G51 model G51-LE-003
• 1x 240V AC Power Supply to power up Cel-Fi G41
• 1x 1m Ethernet cable to optionally control Cel-Fi G41 using WAVE desktop app

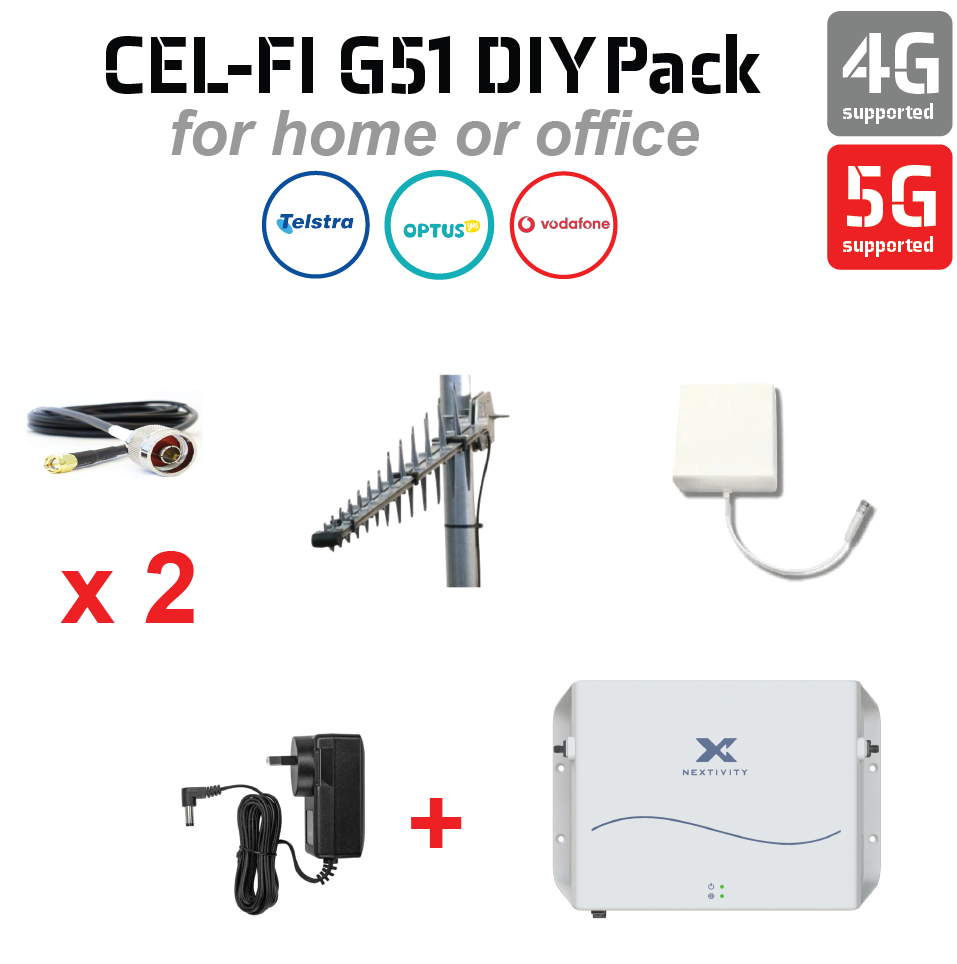

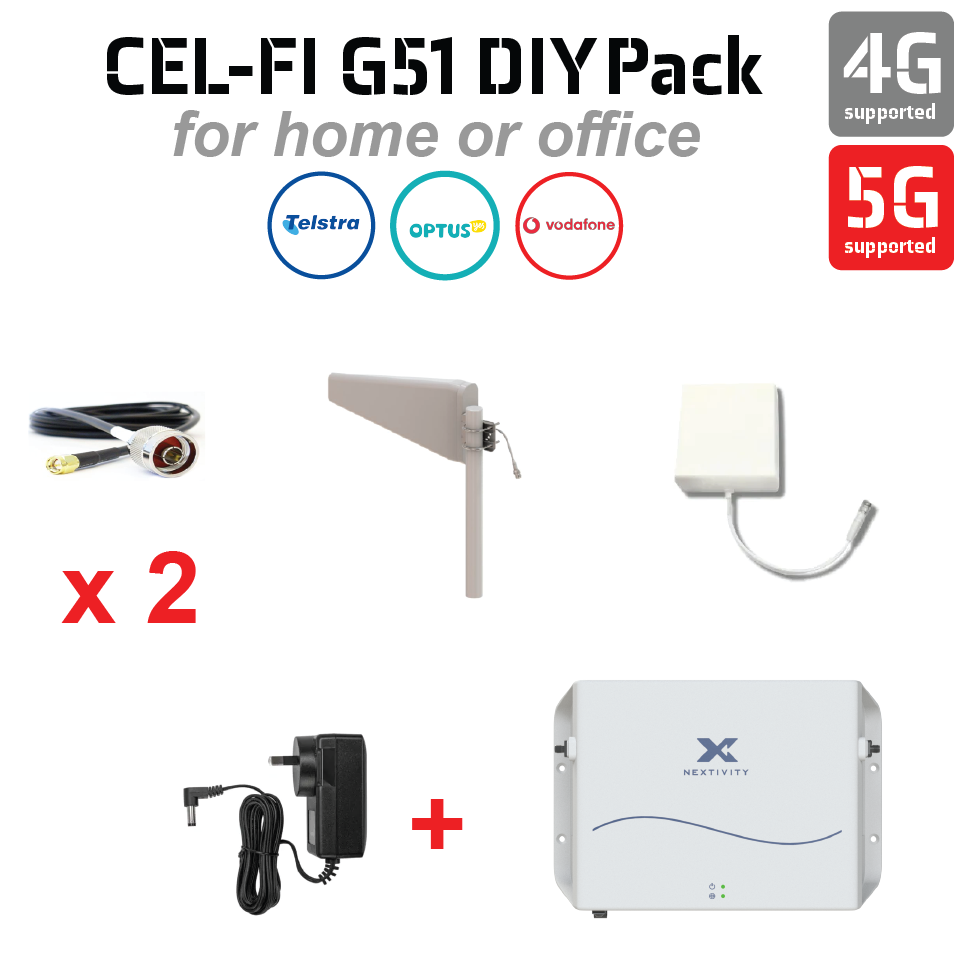

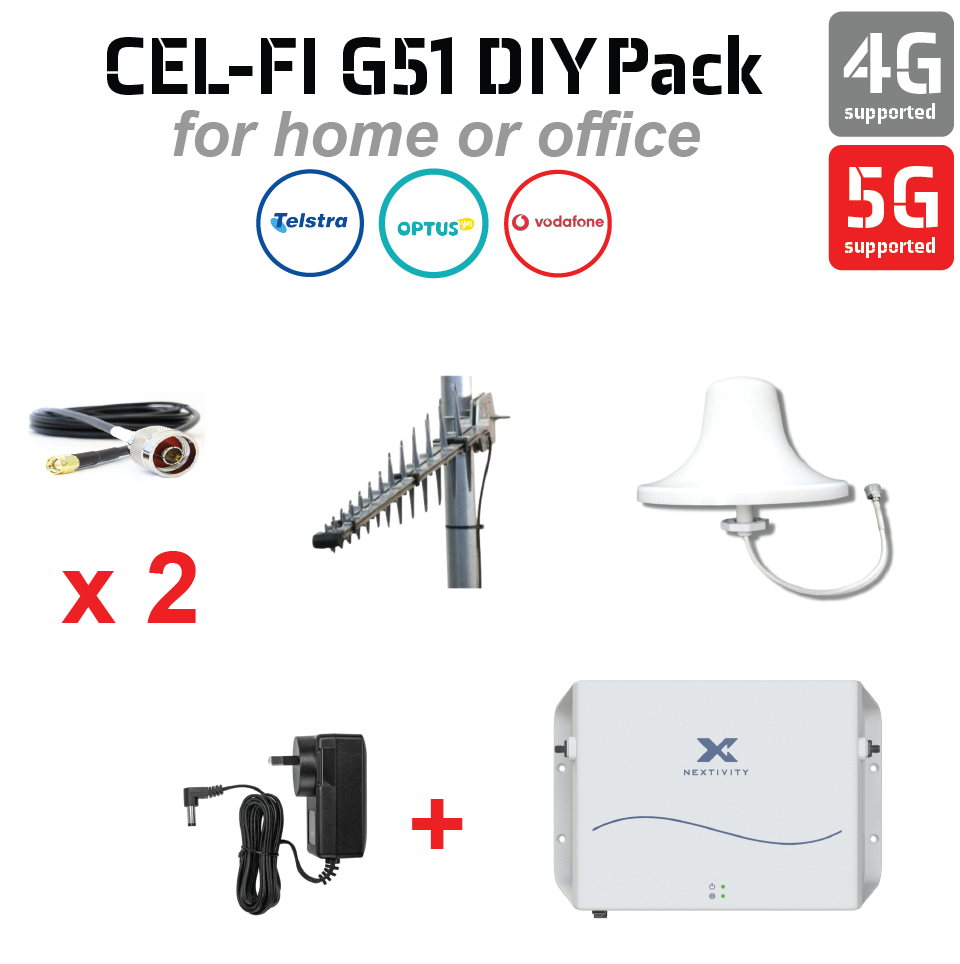

Add-ons (as selected):

• 1x RFI 4G-5G Ceiling Dome or Wall Mount Panel antenna. This antenna will provide coverage inside your home or small office.
• 1x RFI 4G-5G enclosed mini LPDA or tough directional LPDA, bracket included. This antenna will be installed on pole of roof.
• 2x Pulse 400 N(M) to N(M) cables. These cables connect antennas to Cel-Fi G41 unit
• 2x Pulse SMA(F) to N(F) adaptors. These adaptors make installation easy. Connect one end to the SMA(F) connector on the G41 unit and the other to the cable.

Installation Guide for DIY Pack:

Installing Cel-Fi G51 is easy. Just follow the above given Installation Guide. An official Quick-Start Guide from Cel-Fi is also available to download. WAVE app for both iOS and Android is available to download. This app is required to configure this device. Before using the Cel-Fi Go G51, it's crucial to select your preferred operator using the WAVE App from Nextivity.

Note: Cel-Fi G51 gives best performance when you have 5G 3500 MHz coverage. We advise that you check 5G 3500 MHz coverage of your cellular service provider in your area before making a purchase. If you do not have 5G coverage on 3,500 MHz band in your area, consider the alternative Cel-Fi G41 which supports both 4G & 5G up to 2,700 MHz. If you're confused about choosing between Cel-Fi G41 or Cel-Fi G51, please contact us via phone, chat or email to get support.

We recommend reading FAQs (Cel-Fi ) and Cel-Fi Installation Guide sections for further information.

Product Features:

• Cel-Fi GO G51 can relay two channels simultaneously - 100 MHz from n78 3.5 GHz 5G band & one 3G or 4G band (5/10/15/20 MHz).
• It is specifically designed for areas within a n78 3.5 GHz 5G band coverage zone.
• It can switch between Telstra or Optus carriers using the WAVE App (Vodafone approval pending).
• G51 provides a coverage of up to 3000 sq. meters with a gain up to 100 dB
• Both voice and data supported on 4G and 5G networks.
• Nextivity proprietary IntelliBoost chip, approved by ACMA
• Cel-Fi GO G51 dynamically establishes uplink power, and it automatically mutes the uplink when no active user equipment is detected.
• Ethernet port monitoring through the Nextivity WAVE Portal

Application Areas:

• Government buildings
• Agricultural settings
• Parking garages
• IoT and M2M (machine to machine)
• Small manufacturing operations
• Business in single / multi-level commercial properties
• Remote or rural locations
• Large homes

Documents:

Cel-Fi G51 GO - Datasheet Cel-Fi G51 GO - Quick Start Guide

Videos:

Cel-Fi GO: How to Switch Operators with Cel-Fi WAVE app

Cel-Fi Wave App Download

CEL-FI WAVE is available on both smartphones and tablets from the following app stores:
