RFI CSM550 Ultra Compact 4G+5G M2M/IoT Antenna, 698-5925 MHz

    RFI CSM550 Ultra Compact 4G+5G M2M/IoT Antenna, 698-5925 MHz

      Product form
      Brand:
      Item ID:
      168014137
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      1.5m FME-Female: CSM550-1.5M-FME
      1.5m SMA-Male: CSM550-1.5M-SMA
      5m No connector: CSM550-5M-NC
      5m N-Male: CSM550-5M-N
      5m SMA-Male: CSM550-5M-SMA

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      CSM550 is an ultra-compact omni-directional 5GNR antenna from RFI that provides excellent coverage for M2M/IoT, fixed data and mobile applications over 617 MHz to 5925 MHz frequency range.

      Available

      $52.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

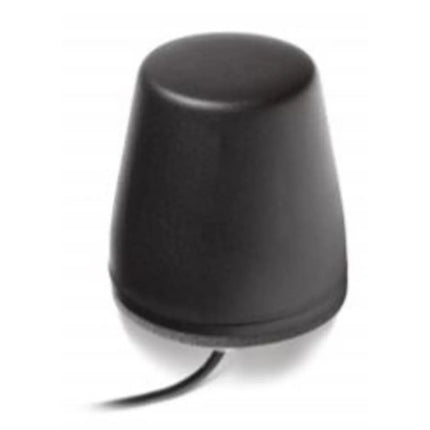

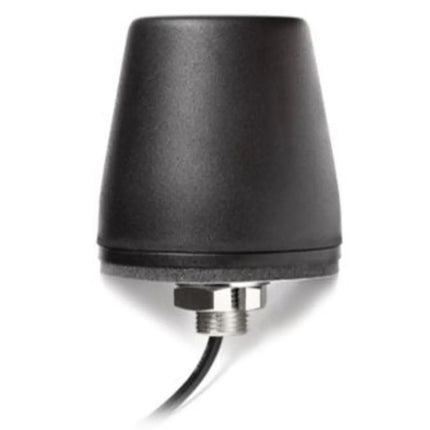

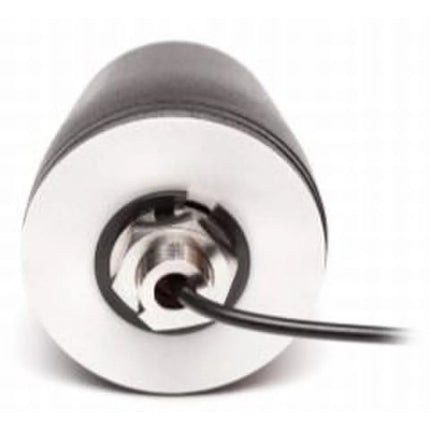

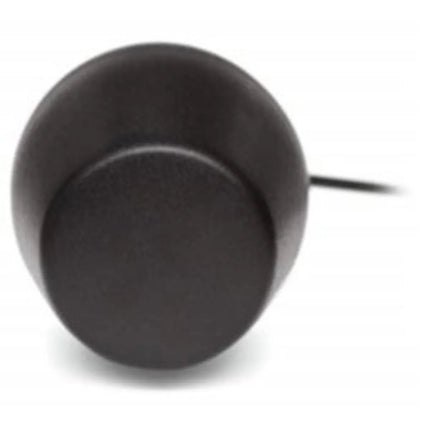

        CSM550 is an ultra-compact omni-directional 5GNR antenna from RFI that provides excellent coverage for M2M/IoT, fixed data and mobile applications over 617 MHz to 5925 MHz frequency range. The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. The CSM550 is fitted with a 11.9mm stud mount incorporating an integrated double-sided foam seal and is IP69 rated. This model CSM550-1.5M-SMA is fitted with 1.5m LL100 low-loss cable and an SMA-Male connector.

        Product Features:

        • The antenna supports all major 5G, 4G LTE, and 3G cellular frequency bands, ensuring broad compatibility across networks.

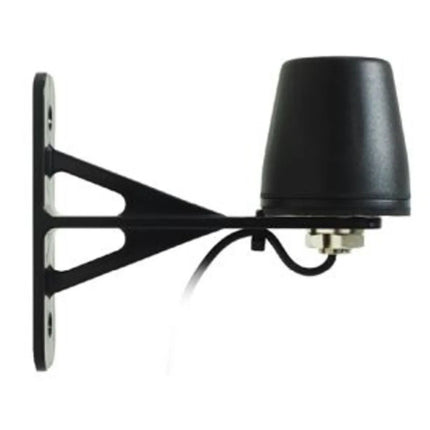

        • It features a screw mount with an anti-rotation mechanism, providing a secure and stable installation.
        • The design is ground plane independent, allowing flexible placement without affecting performance.
        • The ultra-compact form factor, measuring 50 x 50.8 mm, makes it ideal for space-constrained applications.
        • It is IP69 weatherproof rated, ensuring reliable operation in harsh environmental conditions.

        Application Areas:

        • This antenna is suitable for transport systems requiring dependable cellular connectivity.
        • It is ideal for use in ticketing systems that demand constant network access.
        • The antenna is well-suited for ATM machines where secure and uninterrupted data transmission is essential.
        • It can also be deployed in vending machines that operate over cellular networks.

        In the Box:

        • 1x RFI CSM550 Antenna as selected

        Documents:

        RFI CSM550 M2M/IoT Antenna - Datasheet

        Product Specifications

        Height 5
        Length 6
        Width 5
        Antenna application Terminal Antenna
        Antenna cable type LL100
        Antenna port connectors SMA (M)
        Antenna type Ground Independent
        Band 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz
        Brands RFI
        Cable and connector 1.25m LL100 coax terminated with FME female connector
        Cable length m 1.5
        Coverage type Omni-directional
        Frequency band Multi-Band 617-5925 MHz
        Ingress protection ip IP69
        Installation type Internal or external mounting
        Low pim No
        Max frequency mhz 5925
        Max gain dbd dbi 2.9
        Mimo support No
        Min frequency mhz 617
        Min gain dbd dbi -1
        Mount supported Screw mount
        Mount supported detailed Screw mount
        Mounting Screw
        No of antenna ports 1
        Nominal gain dbi 3.6dBi / 3.2 dBi / 1.9 dBi (peak)
        Packaging Clear Bag
        Power w 25
        Radome diameter mm 50mm
        Technologies supported 3G, 4G, 5G
        Tuned bandwidth Full. No tuning required
        Vswr <2.5:1
        Whip length mm 50.8
        Variant mpn CSM550-1.5M-FME
        Product category IoT Antennas
