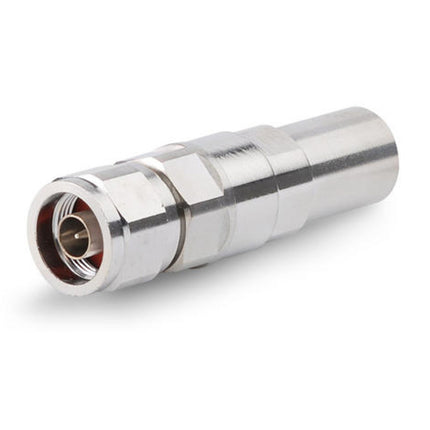

The CommScope L4TNM-PSA is a high-quality N-Male Positive Stop Connector designed specifically for 1/2" AL4RPV-50, LDF4-50A, and HL4RPV-50 cables. It features a straight body style with a Harmonized System (HS) Code of 854420. The inner contact is captivated and plated with silver, while the outer contact is attached by ring-flare and plated with trimetal.

Product Features:

• The typical insertion loss coefficient is 0.05, and the average power at 900 MHz is 0.6 kW.
• Both the cable and connector have an impedance of 50 ohms.
• The DC test voltage is 2000 V, with a maximum RF operating voltage of 707 V (vrms).
• The maximum inner contact resistance is 2 mOhm, and the maximum outer contact resistance is 0.3 mOhm.
• The minimum insulation resistance is 5000 MOhm and shielding effectiveness is -130 dB.
• The operating frequency band ranges from 0 to 8800 MHz, with a peak power of 10 kW.
• The attachment durability is 25 cycles, and the interface durability is 500 cycles.
• The connector retention tensile force is 889.64 N, and the retention torque is 5.42 N-m.
• The coupling nut proof torque is 4.52 N-m, and the retention force is 444.82 N.

Application Areas:

• Ideal for use in telecom networks and infrastructure.
• Suitable for broadcasting applications requiring reliable signal transmission.
• Perfect for industrial environments where robust connectivity is crucial.
• Ensures reliable connections in data center applications.

In the Box:

• 1 x CommScope L4TNM-PSA N-Male Positive Stop Connector for 1/2" AL4RPV-50, LDF4-50A, HL4RPV-50 Cables

Documents:

CommScope L4TNM-PSA Connector - Datasheet CommScope Positive Stop Connector - Installation Guide

Videos:

L4 series style connector installation for HELIAX LDF4 50A cable Positive Stop Series Connectors Installation using an Manual Cable Preparation Tool Positive Stop Series Connectors Installation using an Automated Cable Preparation Tool
