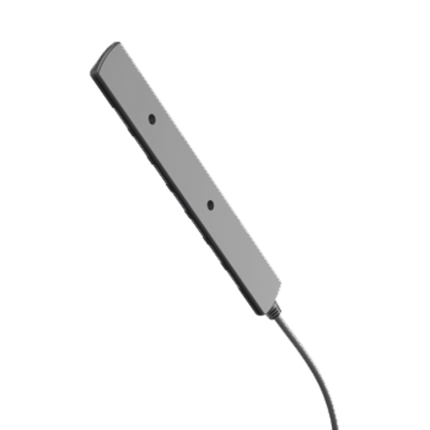

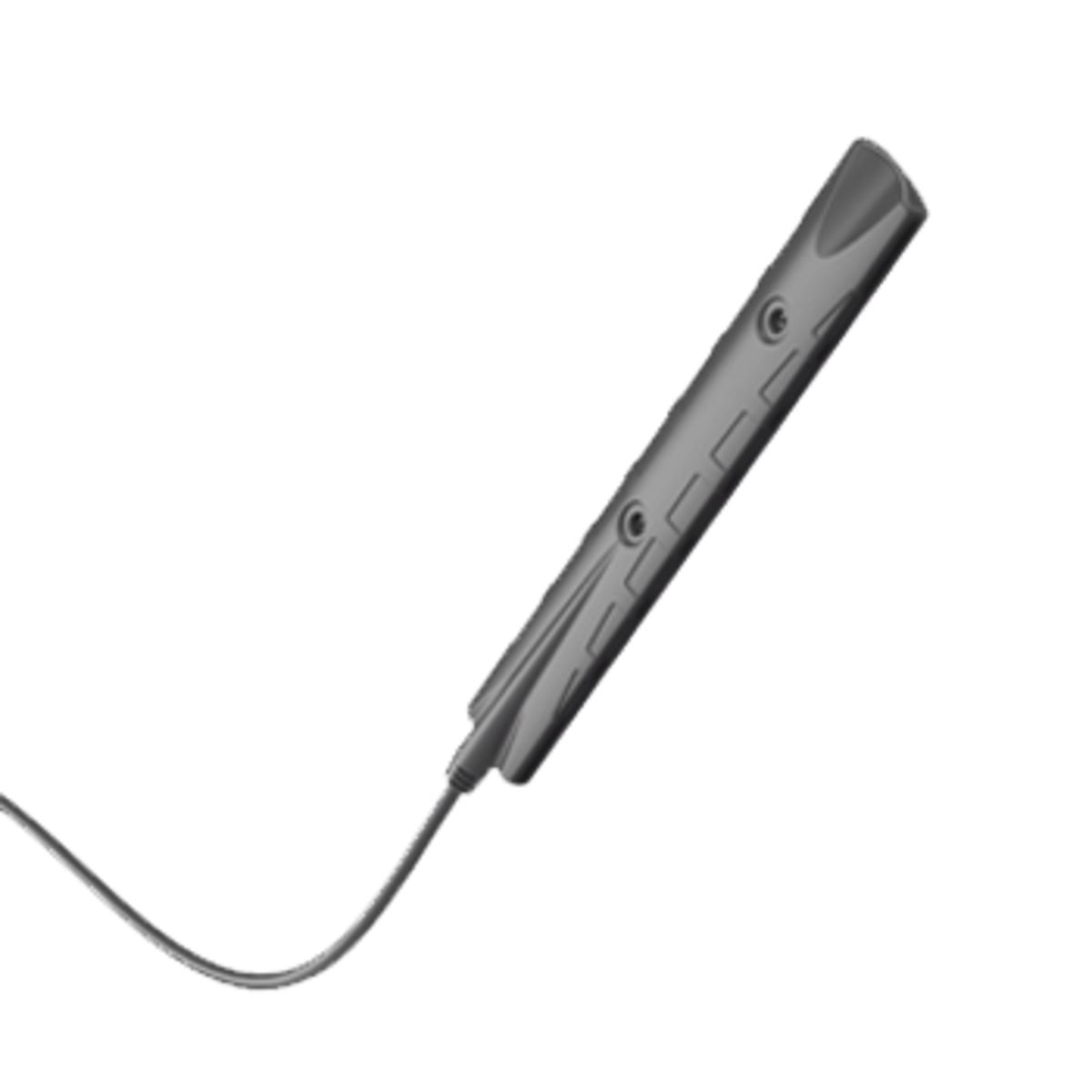

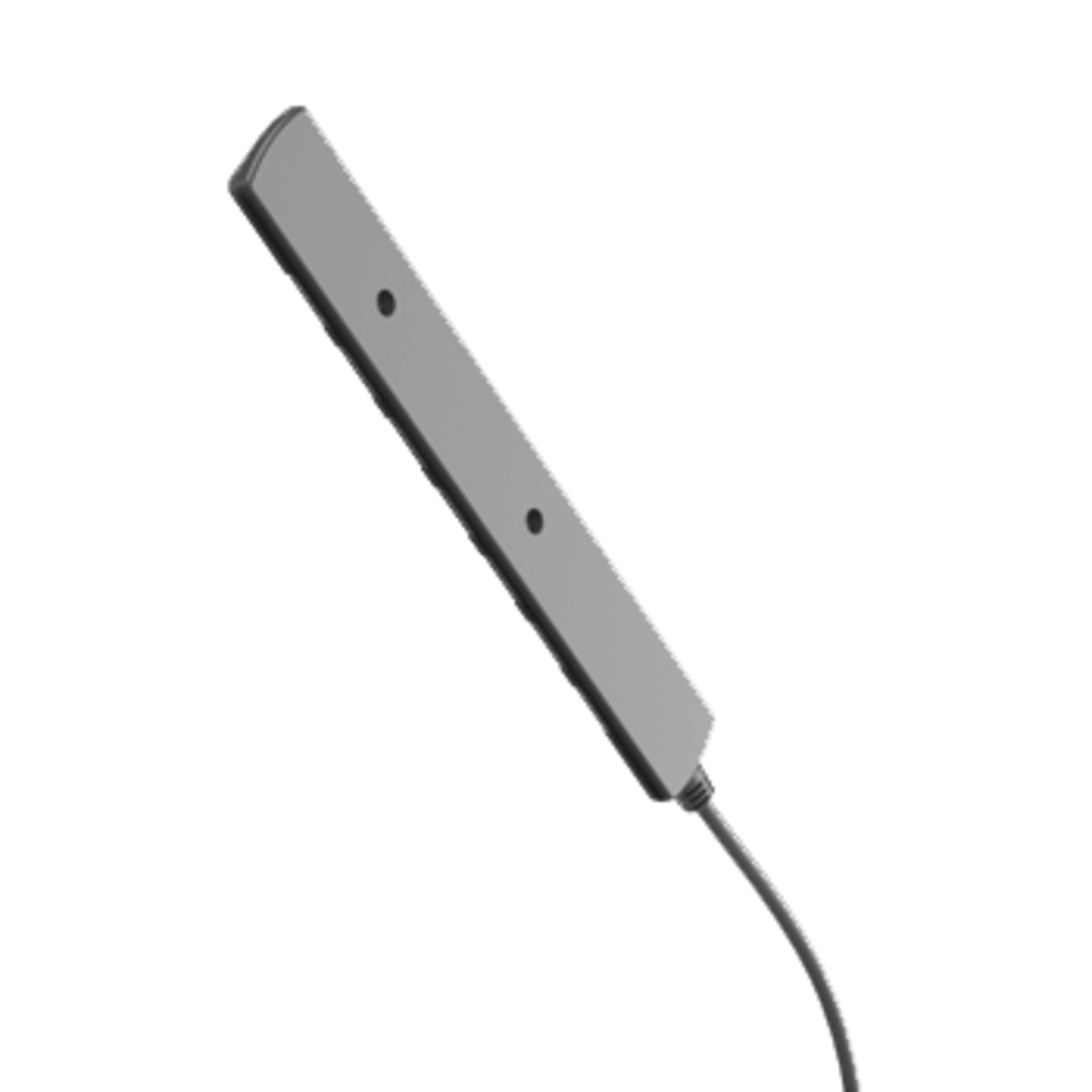

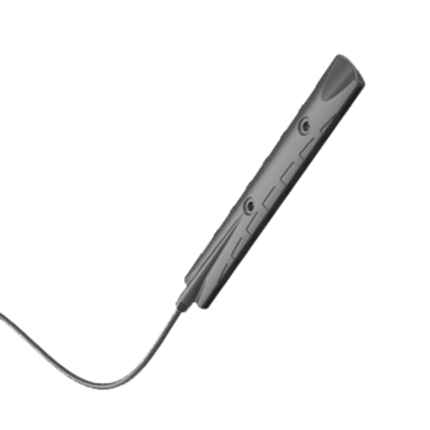

The Poynting OMNI-510 Wi-Fi/Cellular Antenna is engineered for seamless integration into smart meter boxes, providing reliable 360° coverage both indoors and outdoors. It features an omni-directional radiation pattern. Covering the full 698-2700 MHz 4G/LTE band with a constant omni-directional pattern, its robust IP68 enclosure and stylish design ensure long-term performance in utility, building, digital signage, environmental systems, and industrial automation.

Product Features:

• The OMNI-510 provides true omni-directional radiation, ensuring consistent 360° signal coverage around smart meter installations.
• It operates across the 698-2700 MHz wideband range, supporting all major 4G/LTE frequencies.
• Quick installation is enabled via double-sided tape or screw mounting to simplify deployment.
• The stylish, UV-stable housing resists corrosion and maintains its appearance over time.
• The IP68-rated enclosure protects against dust and water ingress for reliable outdoor performance.

Application Areas:

• It is ideal for smart-utility networks including power, gas, and water metering where compact, flush-mounted antennas are required.
• The antenna supports smart-building systems for HVAC monitoring, access control, security, and irrigation automation.
• It provides robust cellular backhaul for digital signage and kiosk installations.
• It is suitable for industrial factory automation and M2M systems operating in harsh environmental conditions.
• It enables farming and agricultural IoT applications on tractors, combines, and remote sensors.
• It supports connectivity for marine vessels and coastal craft requiring reliable wideband coverage near shorelines.

Technologies Supported:

• It supports Zigbee networking for low-power, short-range IoT devices.
• It is compatible with Z-Wave protocols for home automation and sensor grids.
• It enables LoRaWAN connectivity for long-range, low-power IoT applications.
• It works with Sigfox networks to extend the lifetimes of battery-powered devices.
• It provides dual-band Wi-Fi and Wi-Fi HaLow support for robust local networking.
• It supports all cellular bands from 2G/3G through 4G/LTE to ensure broad mobile coverage.
• The antenna operates in the 698-960 MHz and 1710-2700 MHz frequency ranges.

In the Box:

• 1x Poynting OMNI-510 Antenna (MPN: A-OMNI-0510-V1-02).
• Double-sided adhesive pad for tape mounting (mounting bracket not included).
• Hardware for screw mounting (antenna base pre-drilled for fast installation).

Documents:

Poynting OMNI-510 Antenna - Datasheet

Videos:

Specialised Antennas for IoT
