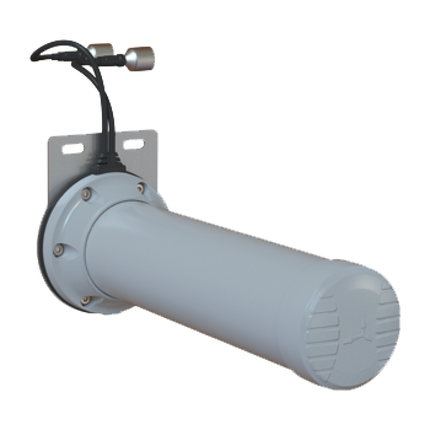

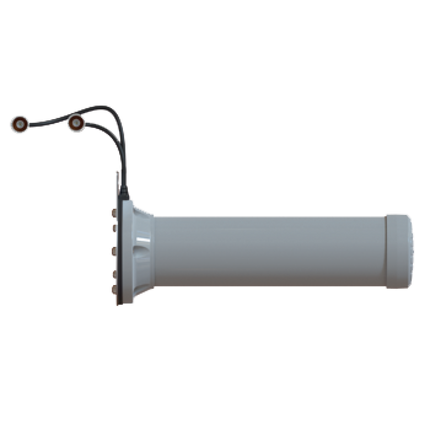

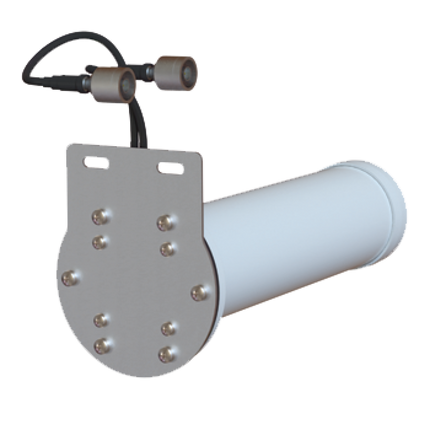

The Poynting HELI-13-RH is a rugged, uni-directional tunnel antenna designed for high-performance wireless communication in mining and tunnel environments. Operating across the 2.4 GHz and 5 GHz bands, this antenna uses circular polarisation to enhance signal propagation and stability in complex, non-line-of-sight conditions.
Product Features:
- The Poynting HELI-13-RH antenna operates in both the 2.4 GHz and 5 GHz Wi-Fi bands, supporting a wide range of wireless applications.
- It features right-hand circular polarisation (RHC), with a left-hand circular (LHC) variant also available for MIMO deployments.
- This antenna is uni-directional, radiating in a single direction, making it ideal for tunnel and corridor coverage.
- It is designed to maintain signal strength and stability around tunnel bends and in the presence of obstructions like machinery or vehicles.
- The circular polarisation helps reduce signal degradation caused by reflections and interference in confined spaces.
- It is housed in a rugged enclosure with IP65 protection, offering resistance to dust and water ingress.
- The antenna is purpose-built for industrial environments, ensuring reliable performance in harsh conditions.
Application Areas:
- The antenna is ideal for mining tunnels requiring stable Wi-Fi connectivity for telemetry and automation.
- It is suitable for underground transport systems and other tunnel-based communication networks.
- This device is effective in M2M and IoT deployments within confined or obstructed environments.
- It is also applicable in industrial corridors and enclosed spaces where directional and robust signal coverage is needed.
In the Box:
- 1x Poynting HELI-13-RH Circular Polarised Tunnel Antenna, N-Type Male Connector
Datasheet:
Poynting HELI-13 Antenna - Datasheet
