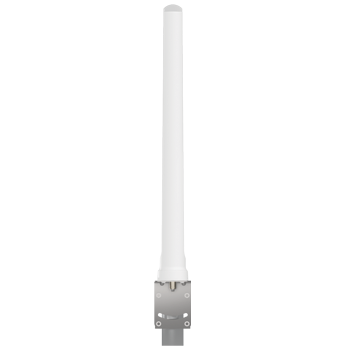

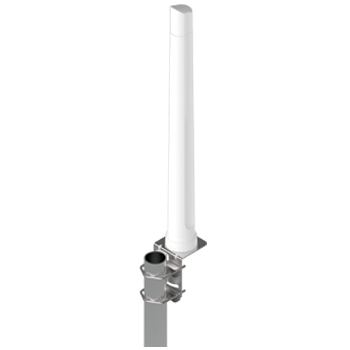

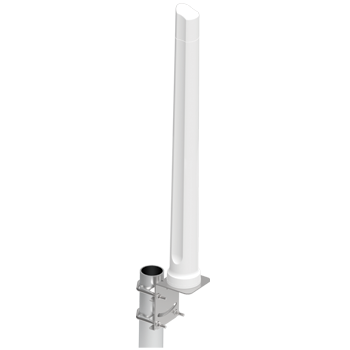

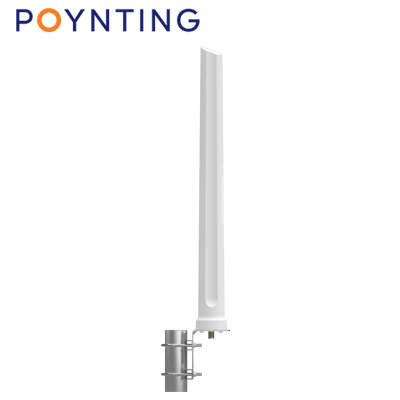

Poynting OMNI-293 Wideband LTE/5G Antenna, 617-3800 MHz, 9 dBi, N-Female

Poynting OMNI-293 Wideband LTE/5G Antenna, 617-3800 MHz, 9 dBi, N-Female

Available

Brand:
Item ID:
165022202
Export:
Accepted
Shipping:
Ships out in 3-4 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-OMNI-0293-V1-01
Send Request for Quote (RFQ) Discount Offers
Poynting OMNI-293 Antenna Omni-Directional Wideband LTE High gain omni-directional antennaOperates from 617 to 3800 MHz peak gain of 9 dBi
Regular price $356.50
Regular price $0.00 Sale price $356.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting OMNI-293 is a high-performance omni-directional antenna designed to support wideband LTE and 5G frequencies. With a peak gain of 9 dBi and coverage from 617 to 3800 MHz, this antenna delivers consistent and balanced performance across all major 4G and 5G bands. Its robust design and advanced internal structure make it suitable for both urban and rural deployments.

Product Features:

  • The Poynting antenna operates across a wide frequency range from 617 to 3800 MHz, covering both current LTE and future 5G bands.
  • It features a high peak gain of 9 dBi, ensuring strong and stable signal reception in various environments.
  • This antenna is omni-directional, offering 360-degree coverage with superior pattern control across the entire frequency range.
  • It is designed using multiple dipoles and a patented feed network, enhancing performance and reliability.
  • The wideband operation makes the antenna future-proof and compatible with global network standards.
  • It is purpose-built for both urban and rural applications, providing flexibility in deployment.
  • The enclosure is dust and water-resistant with an IP65 rating, ensuring durability in outdoor conditions.

Application Areas:

  • The antenna is ideal for urban installations requiring consistent LTE/5G performance across multiple bands.
  • It is suitable for rural and remote areas where wideband coverage and high gain are essential.
  • This device is effective in fixed wireless access systems and mobile broadband deployments.
  • It is also applicable in industrial and commercial environments needing robust and reliable wireless connectivity.

In the Box:

  • 1x Poynting OMNI-293 Wideband LTE/5G Antenna, N-Type Female Connector

Documents:

Poynting OMNI-293 Antenna - Datasheet

Videos:

Poynting OMNI-293 Antenna - Product Overview

Product Specifications

MPN A-OMNI-0293-V1-01
Antenna port connectors N (F)
Brands Poynting
Coverage type Omni-directional
Height 63.5
Ingress protection ip IP65
Installation type External mounting
GTIN/EAN 6009710922347
Length 7.1
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 9
Mimo support No
Min frequency mhz 617
Min gain dbd dbi 6
Mount supported Wall mount, Pole mount
Mount supported detailed Wall mount, Pole mount
No of antenna ports 1
Power w 10
Technologies supported 2G, 3G, 4G, 5G
Width 7.1
Wind gust km h <160
