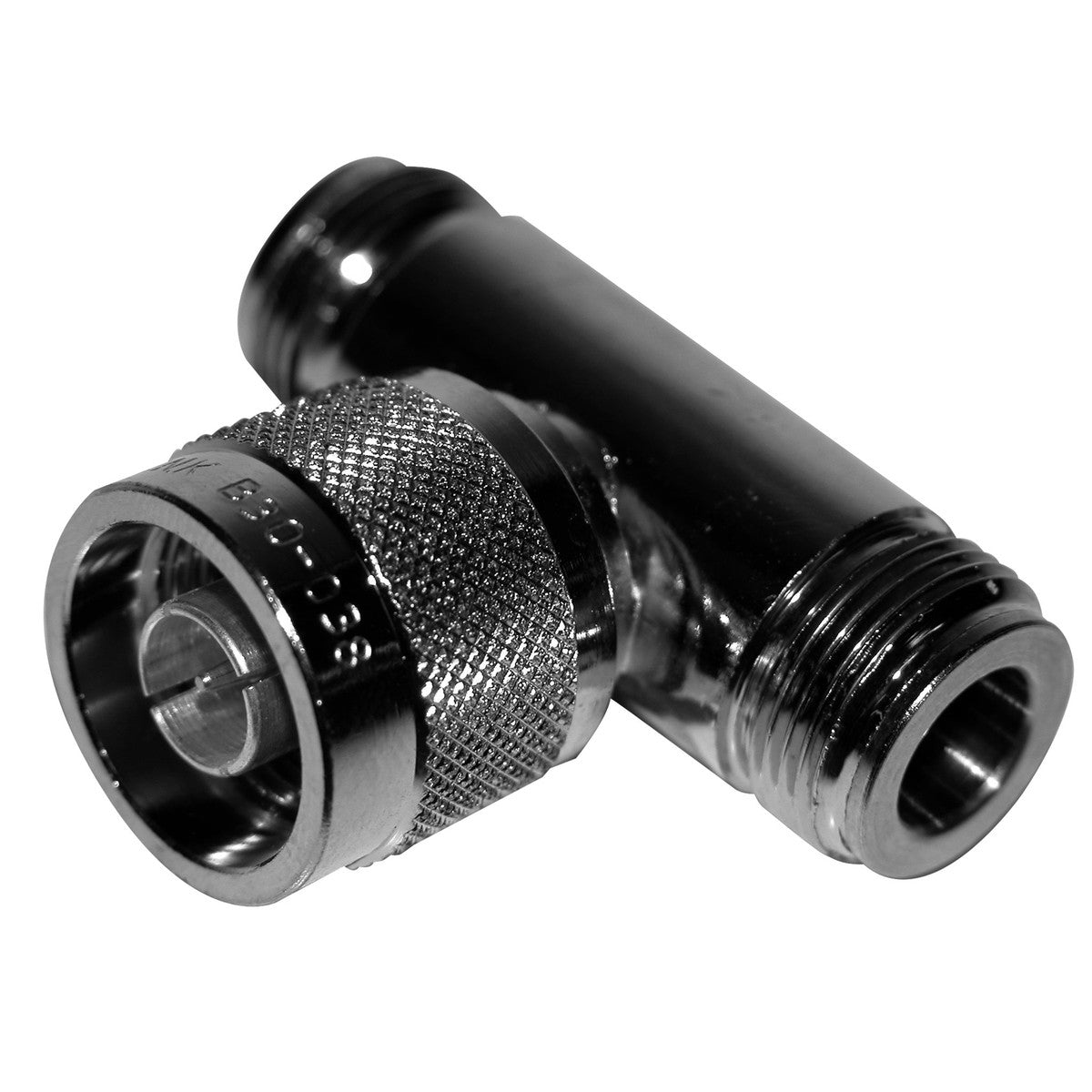

Pulse N-49 N Tee Adaptor - F/F/M

Pulse N-49 N Tee Adaptor - F/F/M

Low stock

Brand:
Item ID:
168018392
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-S473N-K61
Send Request for Quote (RFQ) Discount Offers
Pulse N-49 N Tee Adaptor is designed for high-frequency RF applications, providing a reliable connection between two N-Female interfaces and one N-Male interface.
Regular price $47.50
Regular price $0.00 Sale price $47.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-49 N Tee Adaptor is designed for high-frequency RF applications, providing a reliable connection between two N-Female interfaces and one N-Male interface. This within-series tee adaptor ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

Product Features:

  • This adaptor operates over a wide frequency range from 0 MHz to 11000 MHz.
  • It has an impedance of 50 ohms, ensuring compatibility with standard RF systems.
  • The connector ends are N-Female and N-Male, providing a secure and stable connection.
  • The mounting angle is tee, facilitating easy integration into various setups.
  • This component is classified as a within-series adapter, making it versatile for various applications.

Application Areas:

  • This adaptor is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The adaptor can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections between N-Female and N-Male interfaces.

In the Box:

  • 1 x N-49 N Tee Adaptor - F/F/M.
Please note that when specifying adaptors the specification of the lower frequency series connector over rides that of the higher frequency connector. eg; N Male – SMA Male, the N-type is used as the reference for the specification.

Documents:

Pulse N-49 Tee Adaptor, F/F/M - Datasheet

Product Specifications

MPN N-S473N-K61
Brands Pulse
Component type Within Series Adapter
Connector end a N (F)
Connector end b N (F)
Height 2
Impedance ohm 50
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Tee
Width 2
