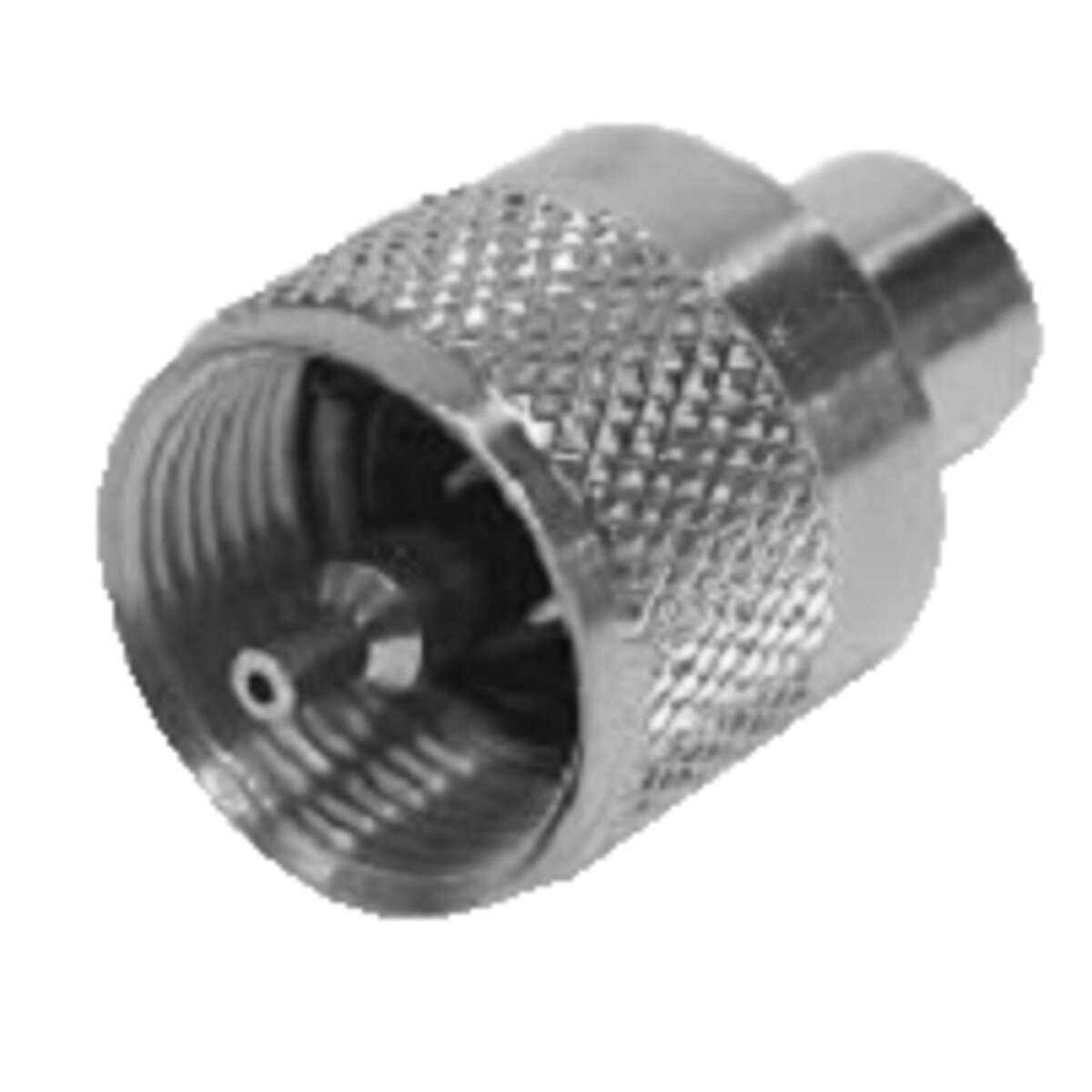

Pulse UHF-104 UHF-Male Connector, Crimp - RG58 Cable

Pulse UHF-104 UHF-Male Connector, Crimp - RG58 Cable

Available

Brand:
Item ID:
168018344
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
UHF-104
Send Request for Quote (RFQ) Discount Offers
The Pulse UHF-104 UHF-Male Connector is designed for versatile RF applications, providing a reliable connection for RG58 cables.
Regular price $7.75
Regular price $0.00 Sale price $7.75
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse UHF-104 UHF-Male Connector is designed for versatile RF applications, providing a reliable connection for RG58 cables. This crimp connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features a UHF-Male interface.
  • It is compatible with RG58 cables.
  • Frequency range: DC to 600 MHz.
  • Impedance: 50 Ohms.
  • The 5/8”-24 thread coupling supports clamp, crimp, twist-on, and solder termination.
  • Temperature range: -55 to +155ËšC.
  • Body: Nickel plated Brass.
  • Contact: Gold plated Brass.
  • Insulator: PTFE.
  • The connector ensures optimal signal transmission with minimal loss.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for antenna connections for CB radios, public address systems, audio, video, mobile radio, and test equipment.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG58 cables.

In the Box:

  • 1 x UHF-104 UHF-Male Connector, Crimp

Documents:

Pulse UHF-104 UHF-Male Connector - Datasheet

Product Specifications

MPN UHF-104
Brands Pulse
Cable supported RG58/U
Cable type RG58
Cable type connectors RG58
Centre conductor Captive, Crimp
Component type Connector
Connector UHF(M)
Connector end a UHF (M)
Crimp set or tool A
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Max frequency mhz 600
Min frequency mhz 0
Mounting angle Straight
Prep toolset RCT-58S
Width 2
