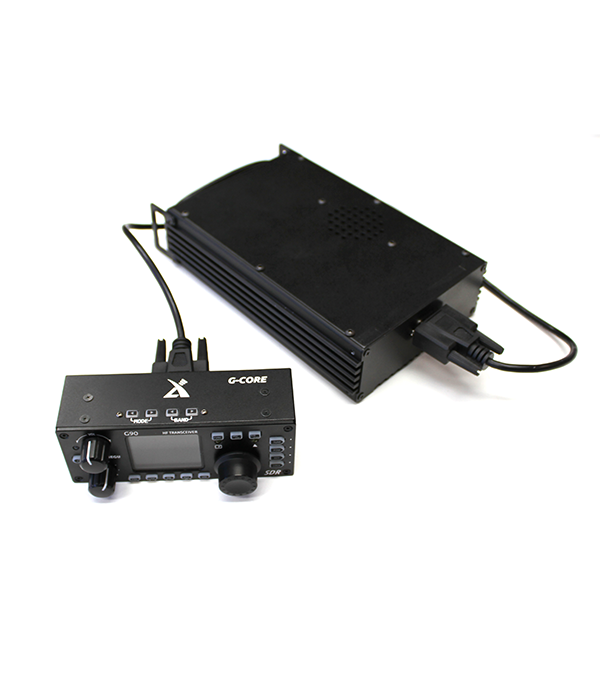

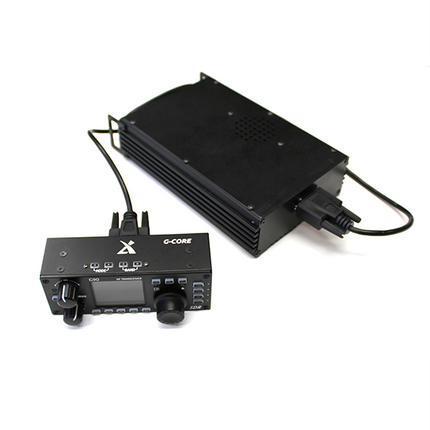

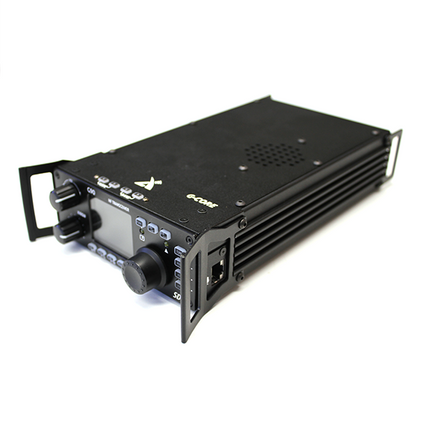

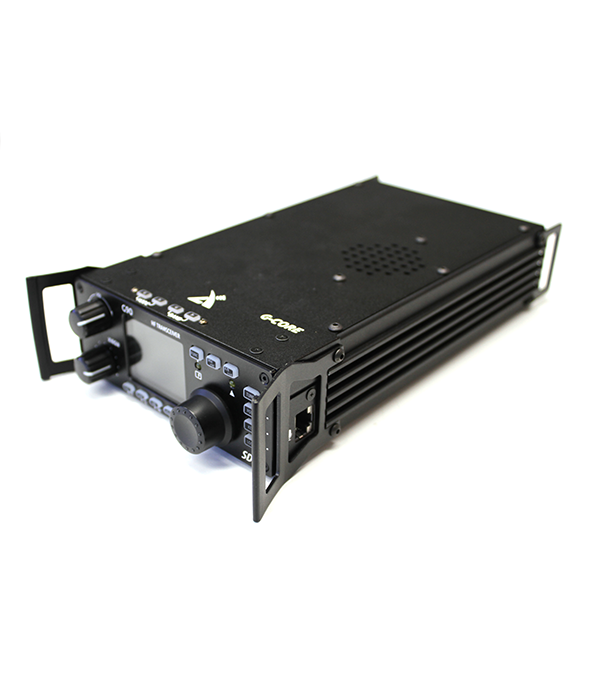

The XIEGU G90 HF Transceiver is a compact and versatile portable amateur radio designed for operators who need reliable HF performance in the field or at home. Built on a 24-bit SDR architecture, the G90 delivers excellent transmit and receive quality across 0.5-30 MHz general coverage with full 10-160 metre amateur band Tx/Rx support and up to 20W RF output power.

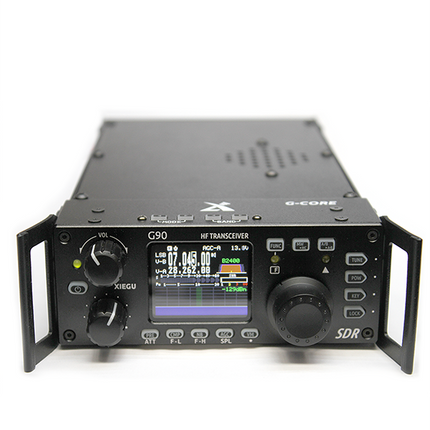

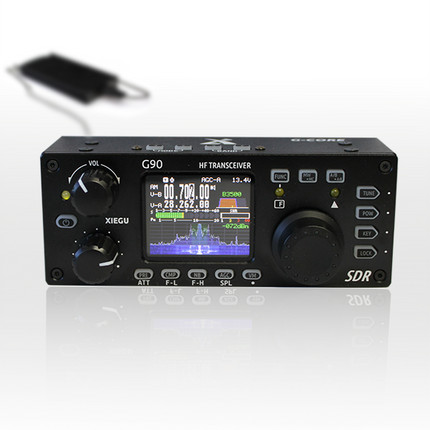

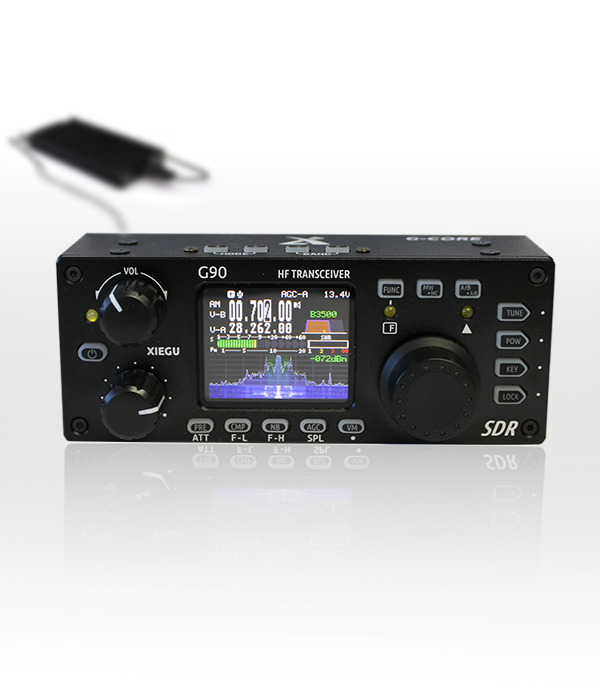

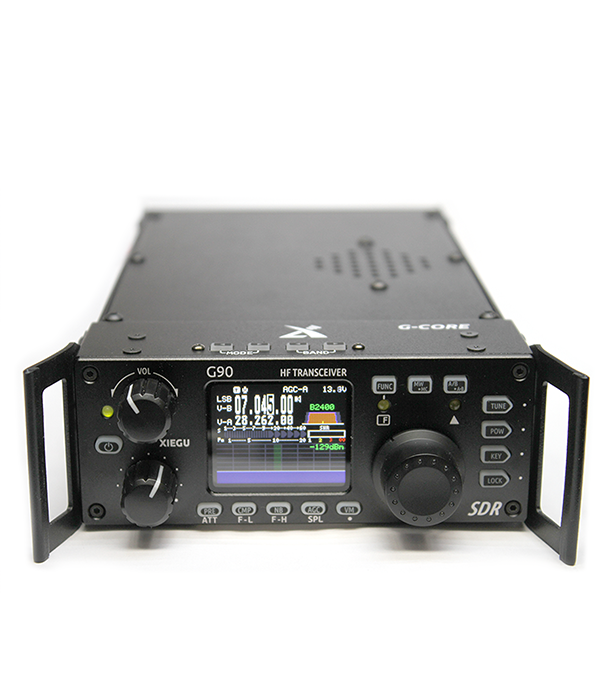

Equipped with a wide-range automatic antenna tuner (ATU), the XIEGU G90 ensures your antenna impedance is always optimised, providing maximum efficiency on every band. A bright 1.8-inch TFT colour display with waterfall and spectrum scope offers clear, real-time signal visibility.
For digital enthusiasts, the G90 supports I/Q output for PC or panadapter connection, and the optional CE-19 interface allows safe integration with external linear amplifiers and digital modes. (Note: only available to licensed amateur radio operators).
Product Features:
Technical Specifications:
-
Receive range: 0.5-30 MHz
-
Transmit coverage: 1.8–2.0, 3.5-4.0, 7.0-7.3, 10.1-10.15, 14.0-14.35, 18.068-18.168, 21.0-21.45, 24.89-24.99, 28.0-29.7 MHz
- Operating modes: SSB, CW, AM
- Sensitivity: 0.25 μV @12dB SINAD (Preamp ON)
- Selectivity: SSB 2.4 kHz, CW 300 Hz
- Dynamic range: 90 dB
- Frequency stability: ±2 ppm (after 30 minutes)
- Supply voltage: 11-16V DC
- Current draw: 750 mA standby, 8A max Tx
- RF output: 20W
- Suppression: Carrier ≥40 dB, Spurious ≥50 dB, Sideband ≥55 dB
- Audio output: 0.5W @ 4Ω
- Dimensions: 120 x 45 × 210 mm
- Weight: 2.4 kg
ATU Specifications:
- Initial tuning time: ≤10s
- Memory re-tune time: ≤50ms
- Impedance matching: 15Ω–250Ω
⚠️ Note: An appropriate amateur radio license is required to operate the XIEGU G90 HF Transceiver. Please ensure you meet all licensing requirements before use. If you need license from ACMA in Australia, please contact us.
