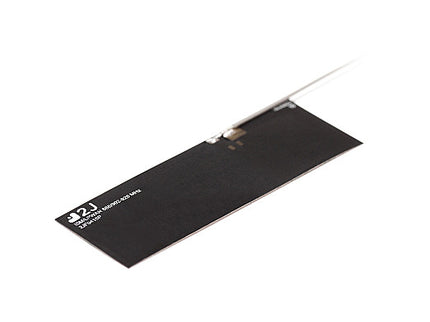

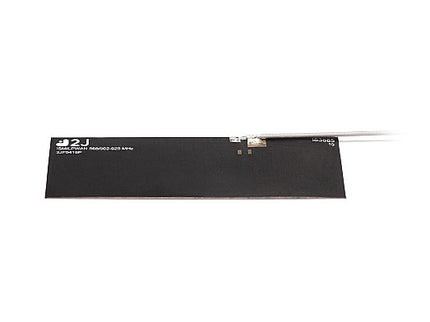

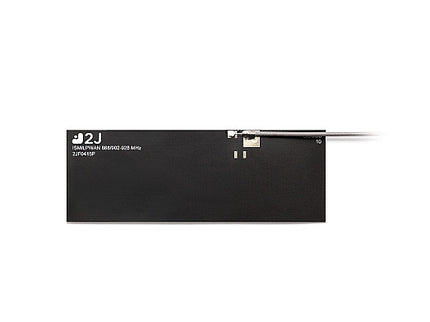

2J 2JF0415P ISM Antenna, 863-928 MHz, 3.6 dBi, Adhesive Mount

2J 2JF0415P ISM Antenna, 863-928 MHz, 3.6 dBi, Adhesive Mount

Item ID:
165021903
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
2JF0415P
Send Request for Quote (RFQ)
2JF0415P ISM Antenna being only 0.2mm thick, ultra-thin, high efficiency, flexible PCB antenna that has been designed for NB-IoT applications where device available space is at a premium.
Regular price $19.55
Regular price $0.00 Sale price $19.55
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

2J 2JF0415P ISM Antenna 868-915 MHz LPWAN being of compact design, comes with a self-adhesive peel-and-stick backside, making installations simplistic in even very space-challenged designs. Integrating an omnidirectional design, this antenna provides a 360° coverage for all implementations where a dedicated frequency is needed.

Product Features:

  • The 2JF0415P ISM Antenna is a dual-band antenna designed to support both 868 MHz and 915 MHz ISM frequencies.
  • This high-performance antenna is built with flexible internal materials, providing adaptability for compact and embedded system designs.
  • It is ground plane independent, ensuring consistent performance regardless of installation surface or surrounding materials.
  • With a peak gain of 3.6 dBi at 868/948 MHz ISM bands, the antenna delivers strong signal strength for reliable wireless communication.
  • The 2JF0415P ISM Antenna features a self-adhesive peel-and-stick backing, allowing for quick and hassle-free installation.
  • It supports customizable cable lengths and connector options, enabling integration into various device configurations.

Application Areas:

  • This 2J ISM Antenna is ideal for LPWAN applications, such as LoRa, Sigfox, and other narrowband IoT systems.
  • It's well-suited for space-constrained devices including wireless sensors, tracking units, and smart meters.
  • This antenna is commonly used in industrial IoT, smart city solutions, and asset management applications.
  • It integrates easily into enclosures where traditional antennas may be difficult to install.

In the Box:

  • 1 x 2JF0415P ISM Antenna
  • 1x Self-Adhesive Backing

Documents:

2JF0415P IoT Antenna - Datasheet
