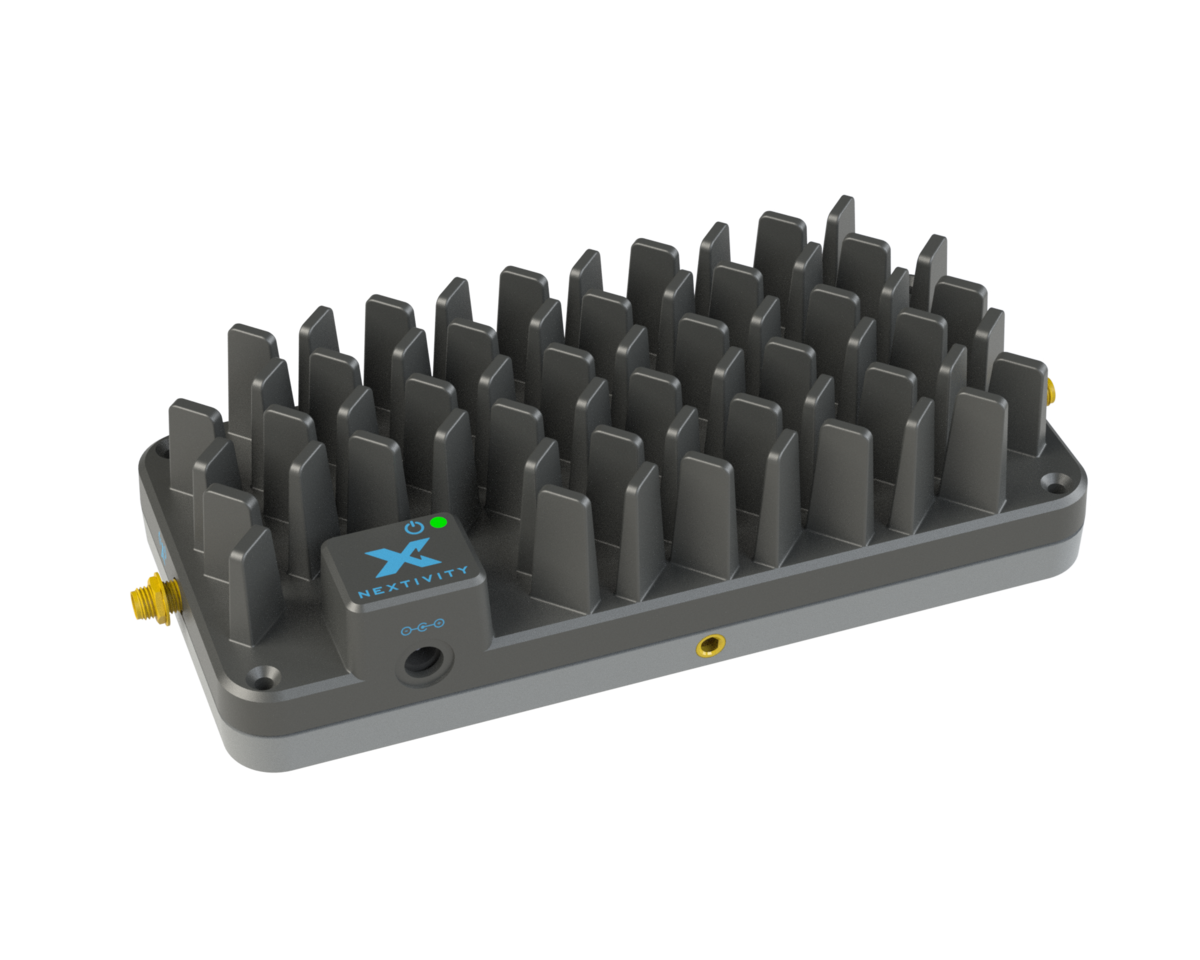

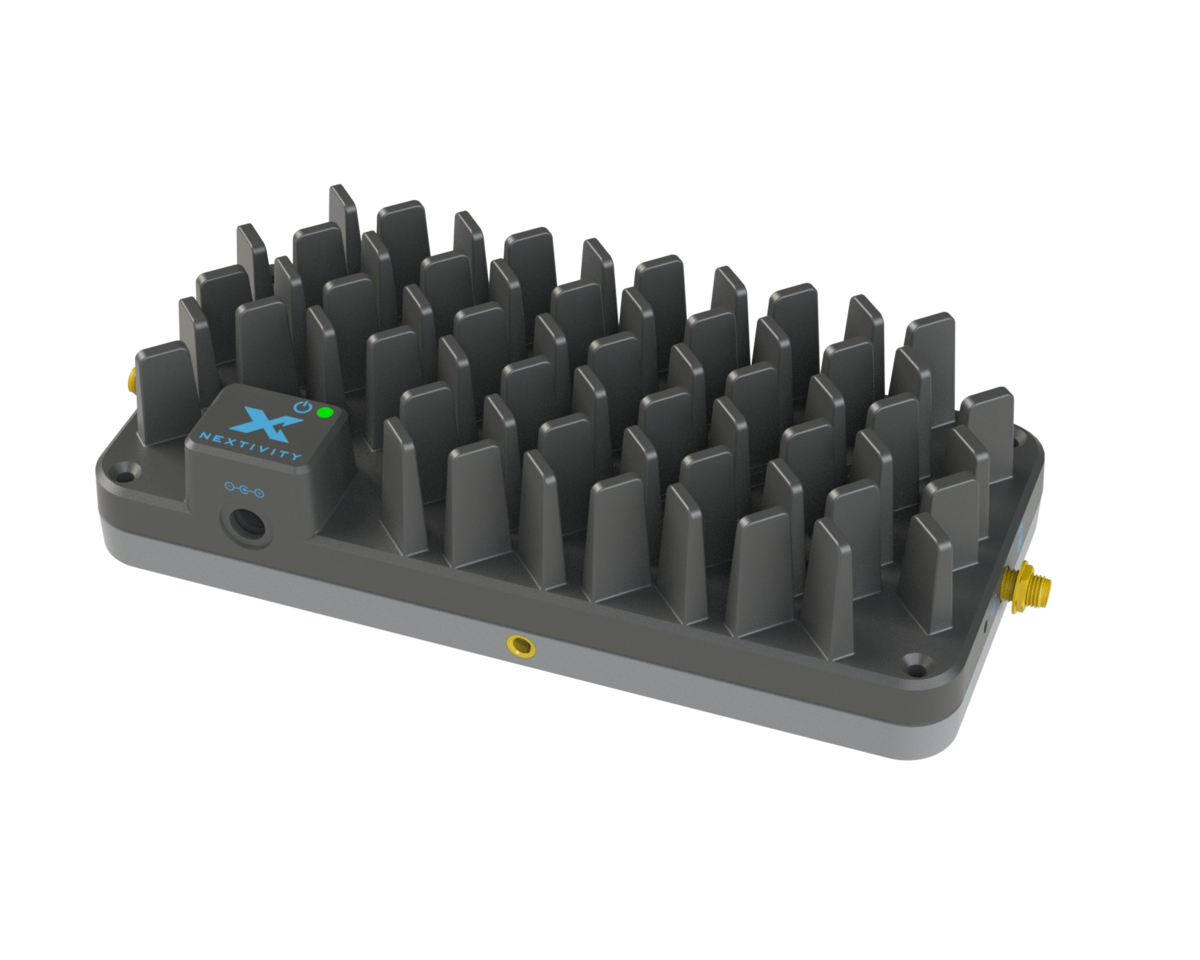

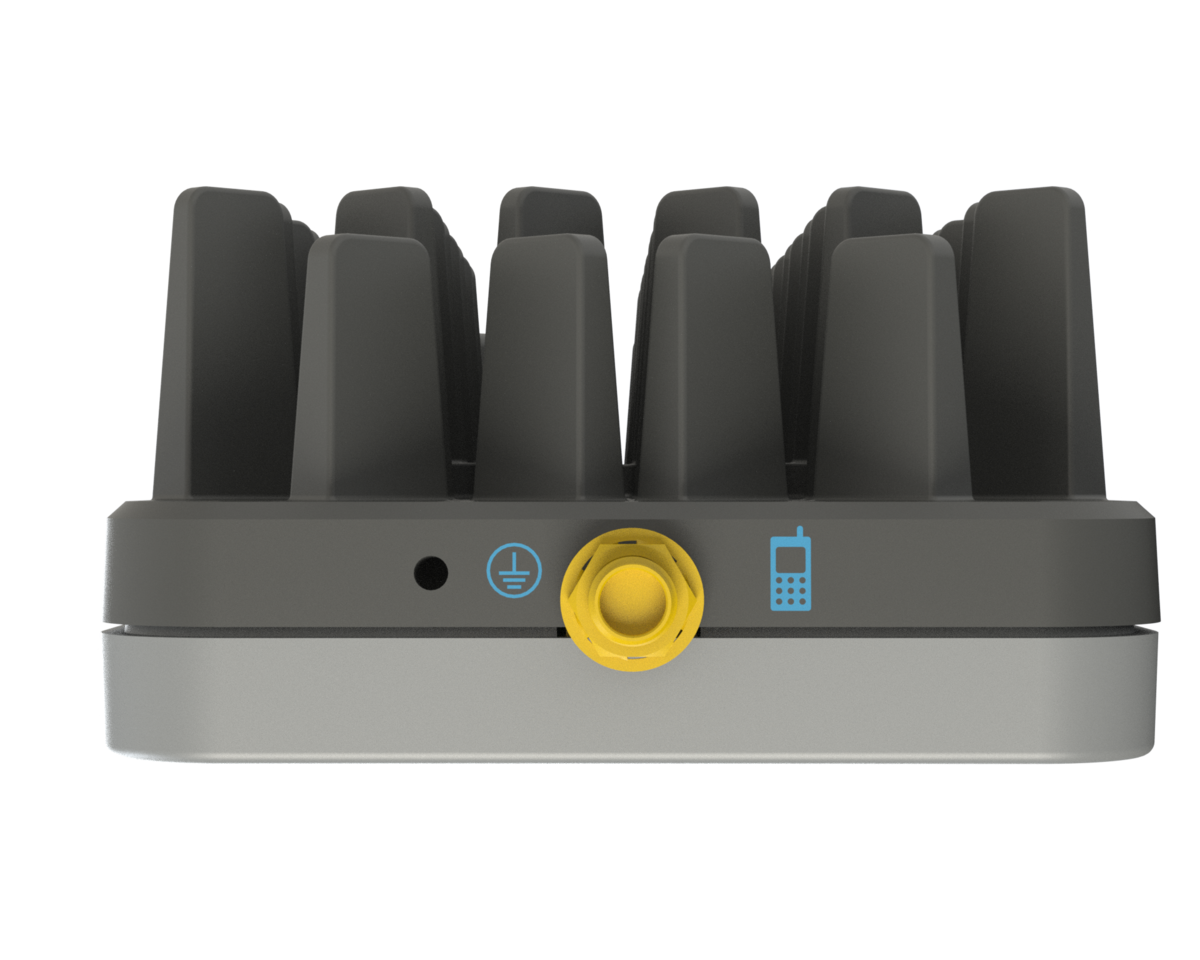

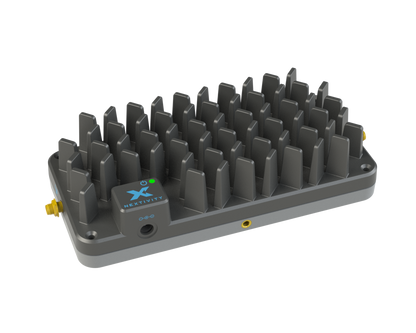

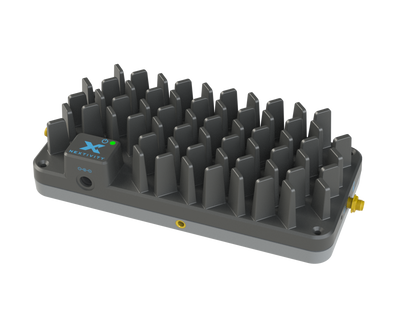

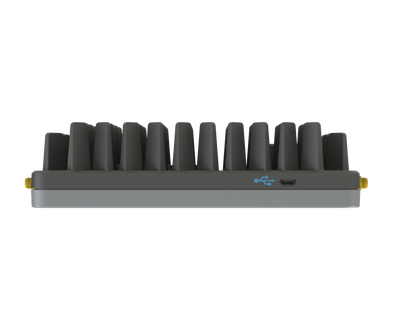

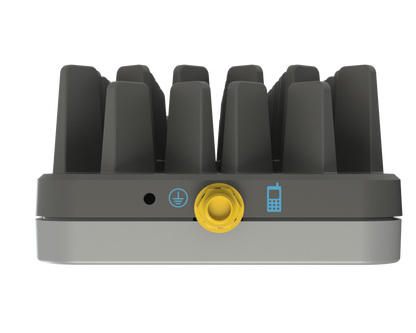

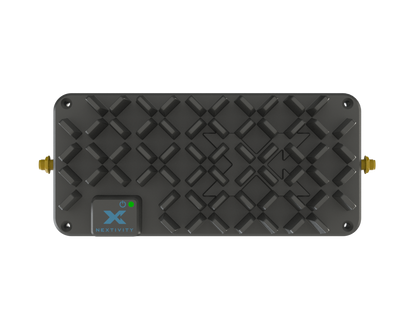

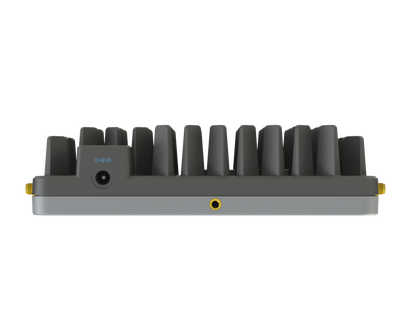

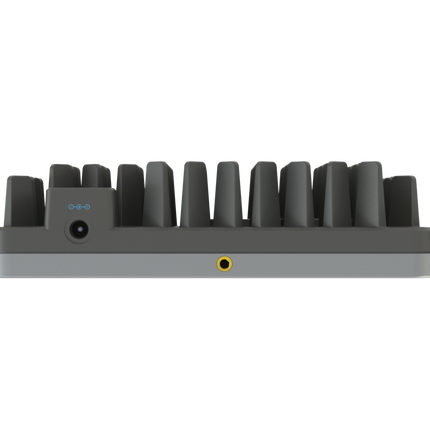

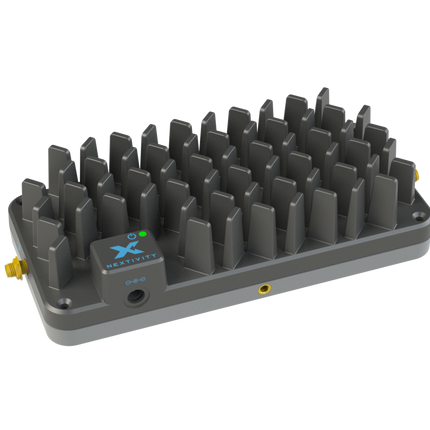

Cel-Fi ROAM R41 is an ACMA approved signal repeater that boosts signals for all three mobile operators in Australia - namely Telstra, Optus and Vodafone. This device is primarily a coverage improvement solution for mobility, e.g. vehicles and boats. However, it can also be used as a stationary signal booster. Based on Nextivity's proprietary 4th Gen IntelliBoost technology, Cel-Fi ROAM R41 enables calling, texting and streaming on the go in areas with poor cellular coverage, thanks to the stunning 100 dBm gain (max). This device is easy to install and improves connectivity in cars, trucks, RVs and boats in minutes. It can be controlled using a phone through the WAVE App, which is available to download for both Apple and Android devices. Cel-Fi ROAM R41 supports one operator at a time. Switching between operators can be done using the WAVE App. Cel-Fi ROAM R41 supports the following 3GPP bands: 700MHz, 850 MHz, 1800 MHz, 2100 MHz, 2600 MHz. 5G-NR support is available on these bands via Dynamic Spectrum Sharing (DSS) with 4G-LTE.

Device Limitations:

• 5G-3500 MHz SA/NSA operation is not supported.
• Optus 2300 MHz LTE TDD band is not supported.

Only 1 band can be relayed by R41, up to a maximum of 20 MHz bandwidth.

Australian Operator Support:

Package Details:

This pack comes with RFI CD/CDR/CDQ819x series antennas, which are known for their quality and durability and support for the entire frequency range of R41. You can choose the antenna of your choice, or choose R41 unit only.

Antenna Options Available:

• RFI CD8194-B Antenna
• RFI CD8195-B Antenna
• RFI CD8197-B Antenna
• RFI CDQ8194-B Antenna
• RFI CDQ8195 Marine Antenna
• RFI CDQ8195-B Antenna
• RFI CDQ8197-B Antenna
• RFI CDR8194-B Antenna
• RFI CDR8195-B Antenna
• RFI CSM700 Antenna

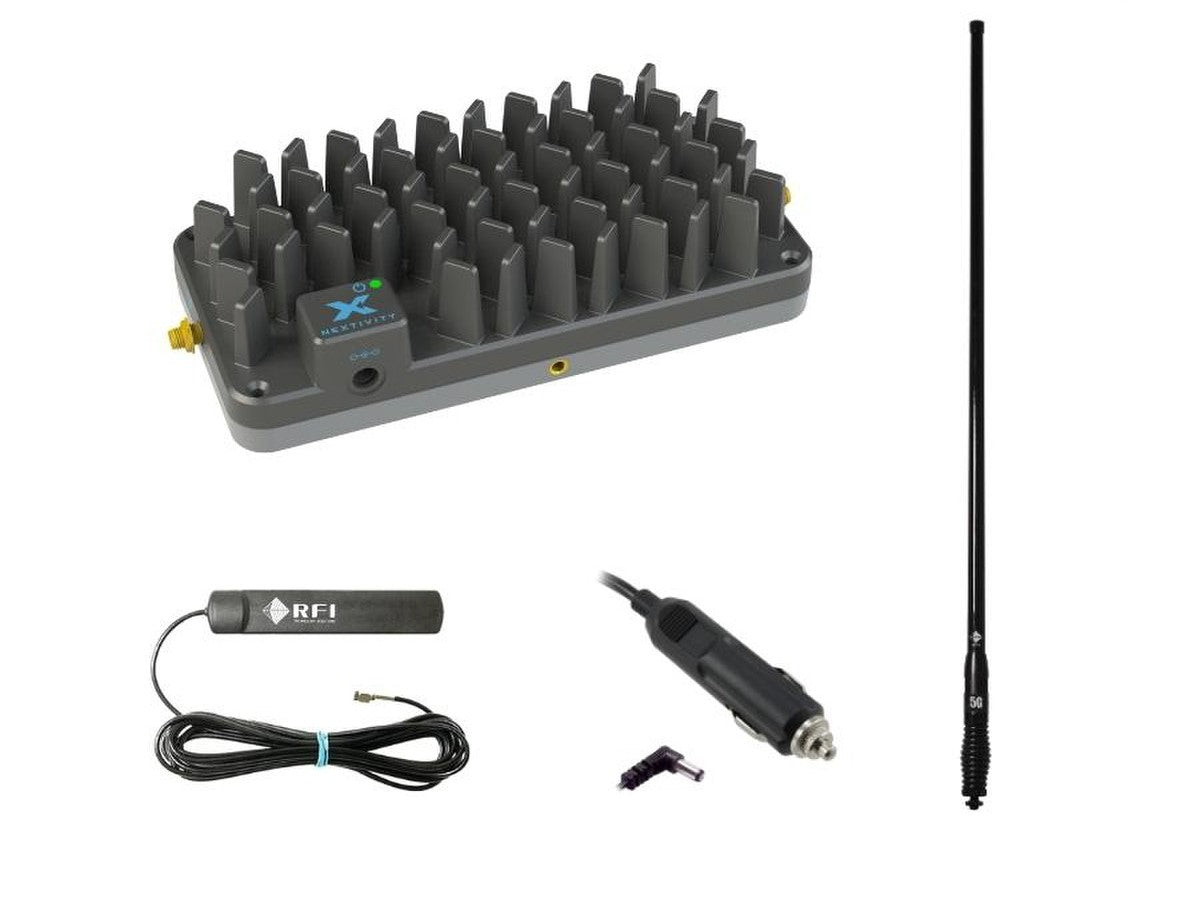

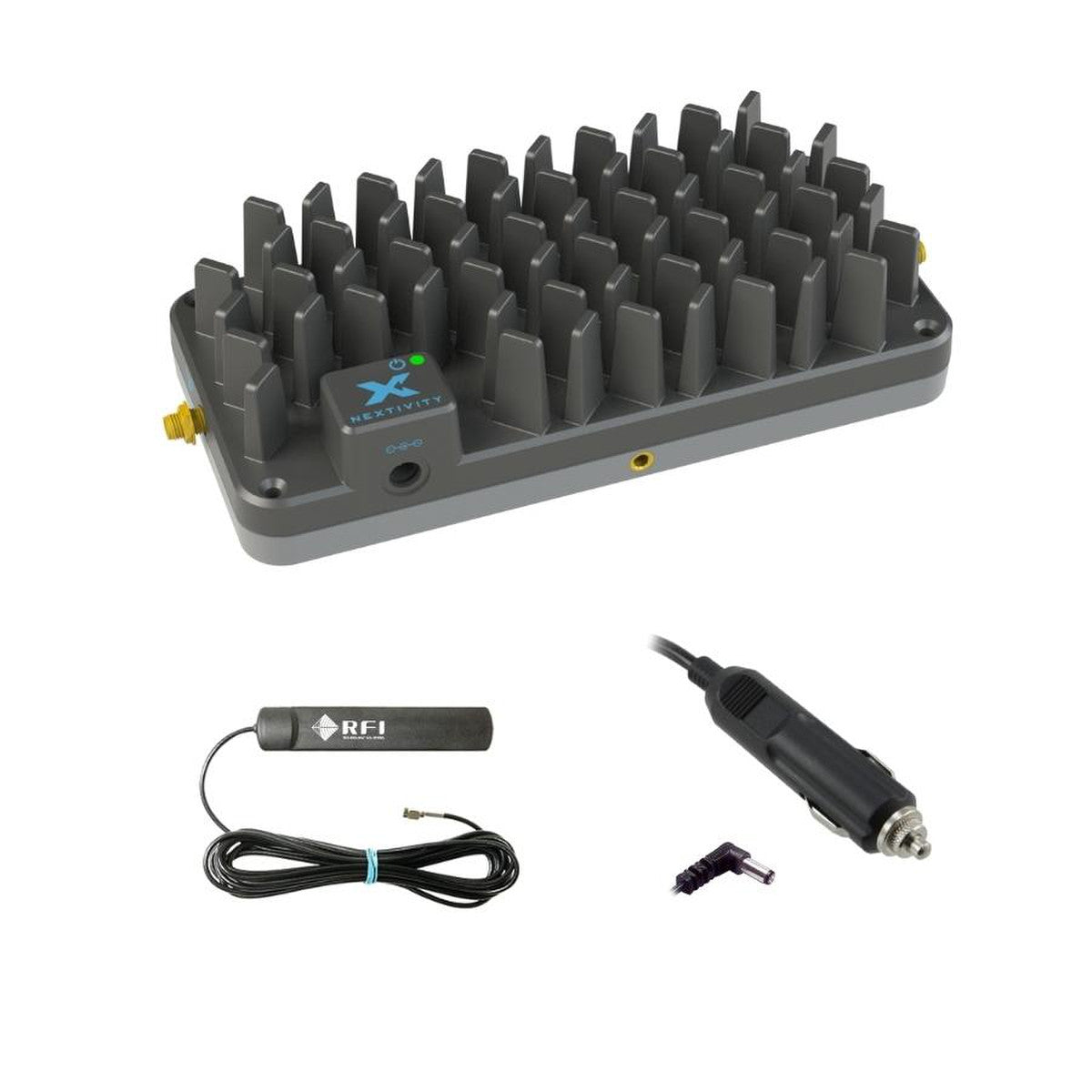

In the Box:

• 1x CEL-Fi ROAM R41 Device
• DC Cigarette Lighter Power Lead
• External antenna: as chosen
• Internal Antenna: T5 antenna with SMA connector

Documents:

Cel-Fi ROAM R41 - Brochure Cel-Fi ROAM R41 - Datasheet Cel-Fi ROAM R41 - Quick Start Guide

Videos:

Cel-Fi ROAM R41 - Mobile Cellular Coverage Solution

Operator Switching Instructions:

Before using the Cel-Fi ROAM R41, it's crucial to select your preferred operator using the WAVE App from Nextivity.
