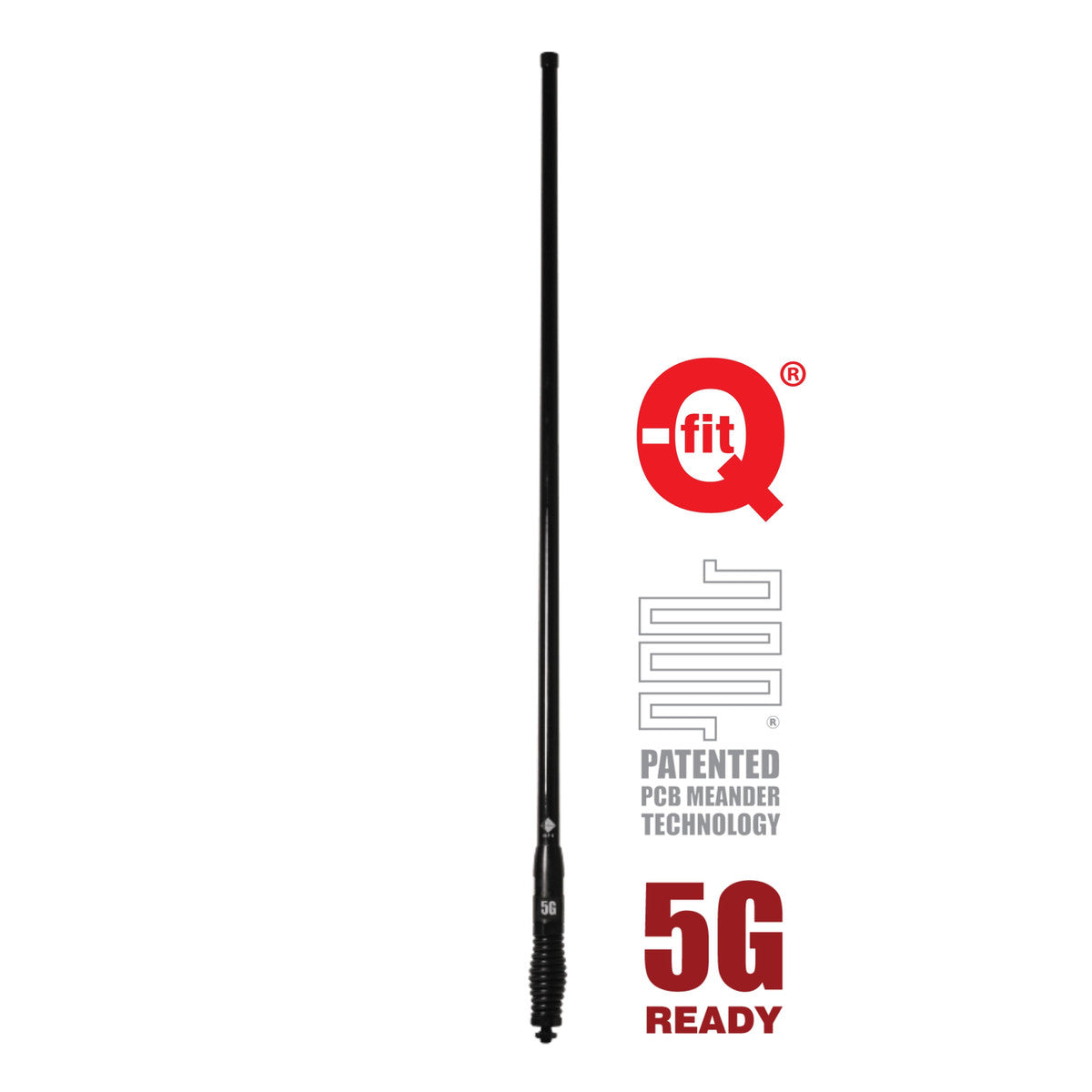

CDQ8195-B is a collinear antenna very popular for use on vehicles and routers. This Australia-made antenna from RFI is part of the CDQ8100 antennas series and is known for its exceptional gain performance across all bands over the frequency range 698-3800 MHz, thanks to the patented Meander technology then enables efficient radiating elements. CDQ8195-B supports 3GPP technologies 2G, 3G, 4G & 5G over 698-3800 MHz. The antenna has a gain of 6.5 dBi on low band 698-960 MHz and 6.5 dBi on the latest 5G band 3400-3800 MHz. CDQ8195 has a slightly better low-band gain than CDQ8194. CDQ8195 comes in black color with a 5m low loss RG58 cable with SMA(M) termination. This high-quality antenna is perfect for harsh environment like that of Australia, when you're looking for same excellent performance all-round the year. This antenna is designed as SISO. To achieve MIMO operation (better performance), for example 2x2 MIMO, two antennas can be installed separated by 43cm.

Product Features:

• The antenna utilizes Meanderâ„¢ circuits to ensure ultimate pattern and gain stability.
• It is ideal for new 5G and LTE networks, offering comprehensive frequency coverage.
• The design is suited for fringe and rural applications where signal strength is often limited.

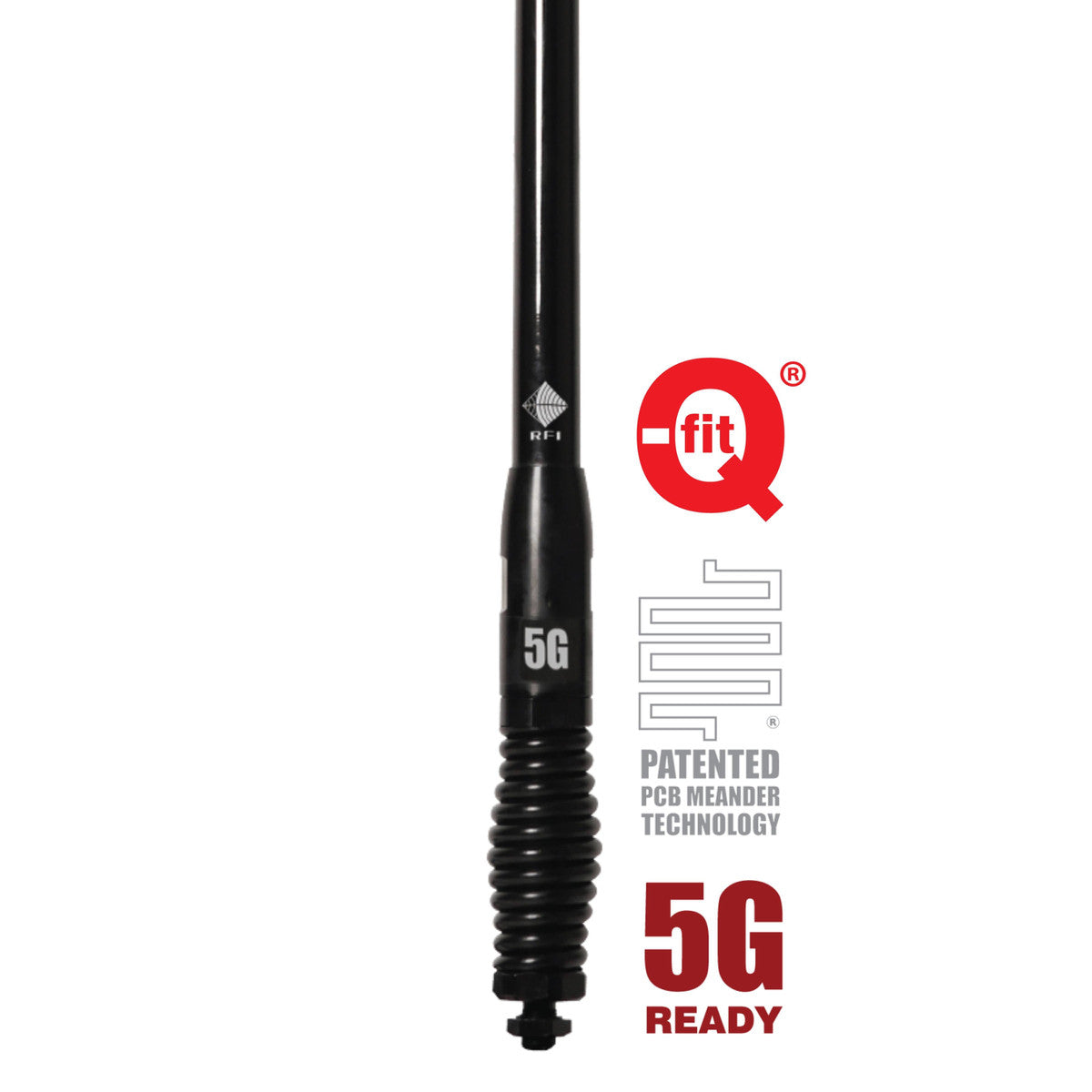

• Engineered for harsh Australian conditions, the antenna includes an integrated spring with a threaded stud and nut for easy vehicle installation.
• The Q-Fit® removable whip system allows for quick removal in low-height environments.
• It features integrated N-male and N-female connectors to support various cable configurations.

Application Areas:

• The CDQ8195 is widely used on vehicles to improve cellular coverage in remote and mobile settings.
• Because of its excellent low-band gain, the antenna is highly recommended for use with the Cel-Fi ROAM R41 signal repeater.
• It is also commonly paired with in-car cellular routers, such as Teltonika RUTX50, in a MIMO configuration for enhanced data performance.

In the Box:

• 1 x Removeable CDQ8195 whip in black colour
• 1 x Spring assembly with 5m RG58 low loss cable terminated with SMA male connector
• 1x Spring assembly cap

Installation Guide:

• The antenna comes with an integrated spring with threaded stud/nut that makes antenna installation as easy as ABC.
• The antenna assembly is based on Q-Fit® technology, allowing easy removal of the whip when not required. The whips of the CDQ8100 Series can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
• The antenna can be mounted on a vehicle guard, boot, bull bar or other locations using an appropriate mounting bracket, however in the case of the CDQ8100 Series, we recommend mounting on a bull bar only.
• When choosing a mounting location, try to ensure that the whole antenna (in particular, the fibreglass whip section itself) is as high as possible and as far away as practical from metallic obstructions (roof racks or vehicle pillars). This will minimise reflection or shadowing of the signal.
• Ensure there are no other antennas installed within 0.6 metre of the antenna when installed to minimise signal interference.
• This antenna has been factory terminated with an SMA male connector to simplify installation and comes complete with 5m of RG58 low loss cable. In most cases no further cable termination should be required.
• CDQ8100 antenna is supplied with the whip not installed. If this is the case, please remove (& keep) the protective cap and screw the antenna onto the spring assembly and tighten as necessary.

Documents:

CDQ8195-B Antenna - Datasheet CDQ8195-B Antenna - Specifications CDQ8195-B Antenna - Installation Guide
