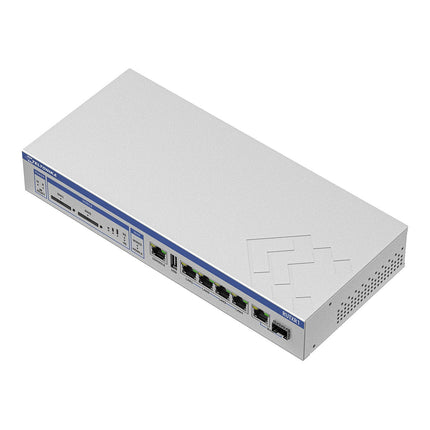

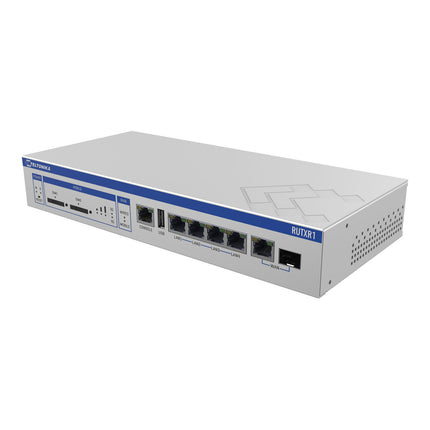

The Teltonika RUTXR1 Router is a feature-rich enterprise-grade 4G LTE CAT-6 rack mount router designed for server cabinets and small/home offices. Powered by RutOS, this router is engineered for speed and ultra-reliable connections, supporting LTE Cat6 speeds up to 300 Mbps with Carrier Aggregation. It features dual SIM slots, providing automatic failover for uninterrupted connectivity. Equipped with five Gigabit Ethernet ports, the RUTXR1 offers versatile connectivity options. The router includes Wave-2 802.11ac dual-band Wi-Fi, ensuring seamless wireless connectivity. It also boasts unique ports such as an SFP port for long-range fiber-optic communication and dedicated console ports for easy management. The RUTXR1 is designed with redundant power supplies, ensuring uninterrupted performance even in case of power failure. It integrates seamlessly with Teltonika's Remote Management System (RMS), allowing for effortless monitoring and management. The router comes with a rack-mounting kit, standing pads, and all necessary accessories for easy installation.

Product Features:

• This device supports LTE Cat6 speeds up to 300 Mbps with Carrier Aggregation, ensuring fast and reliable data transfer.
• It is equipped with five Gigabit Ethernet ports, dual SIM slots, and a USB port, providing diverse connection options.
• The Wave-2 802.11ac dual-band Wi-Fi ensures seamless wireless connectivity.
• Redundant power supplies provide uninterrupted performance.

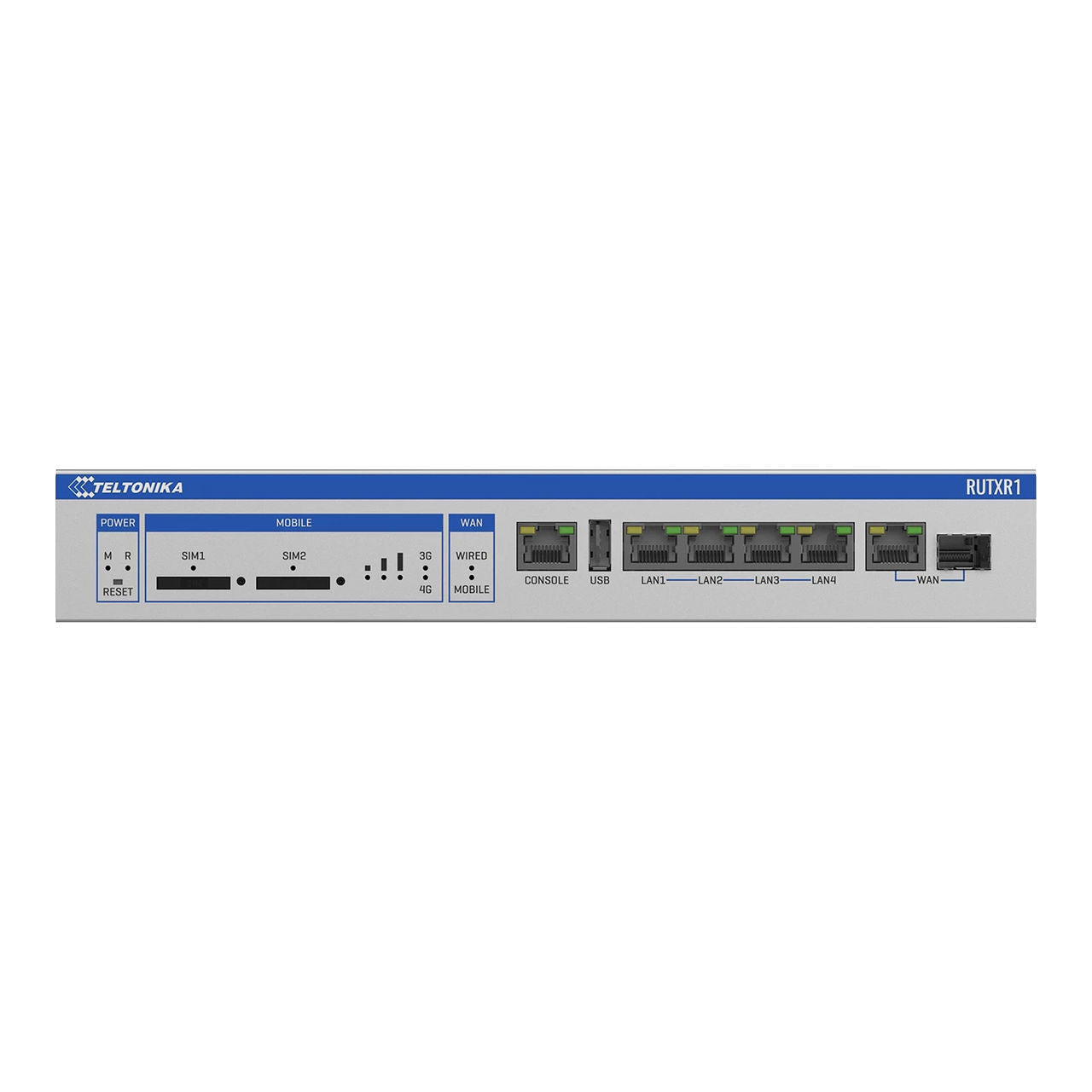

• The device includes an SFP port for long-range fiber-optic communication and dedicated console ports for easy management.
• It is compatible with Teltonika's Remote Management System (RMS) for effortless monitoring and management.
• Easy installation is facilitated with a rack-mounting kit, standing pads, and all necessary accessories.
• This device features dual SIM support, dual-band Wi-Fi, WAN and LAN support, with 1 WAN port and 4 LAN ports.

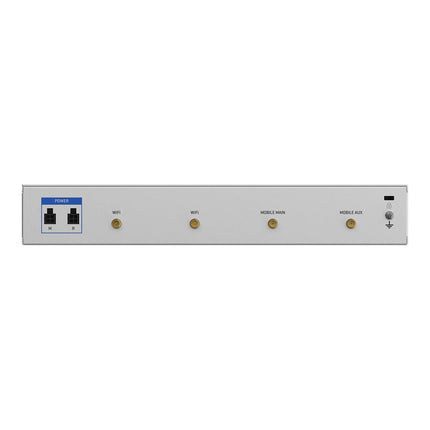

• It supports MIMO, VPN, SMS, and includes 2 cellular antenna ports (SMA connectors), 1 RS232 port, and 1 USB port.
• The input voltage range is 9-50 VDC, and it offers flat surface or rack mounting options.

Application Areas:

• Ideal for server cabinets and small/home offices, providing reliable LTE backup and robust Wi-Fi connectivity.
• Supports smart city infrastructure, powering surveillance cameras and smart traffic systems to improve urban management and security.
• Provides secure internet for POS systems, ATMs, and kiosks in the retail sector, ensuring smooth and safe transactions.
• Enhances transportation and fleet management by offering reliable internet for tracking and monitoring vehicles.
• Widely used in energy and utilities, supporting power stations and renewable energy sites with stable and secure internet connections.
• Enables precision farming and remote equipment monitoring in agriculture, improving efficiency and productivity.

In the Box:

• RUTXR1 Router
• 18 W PSU
• 2 x LTE Antennas (Magnetic Mount, SMA Male, 3 m cable)
• 2 x WiFi Antennas (Magnetic Mount, RP-SMA Male, 1.5 m cable)
• Rack-mounting Kit
• 4 x Standing Pads
• 8 x Screws
• SIM Adapter Kit
• Ethernet Cable (1.5 m)
• Quick Start Guide (QSG)
• RMS Flyer
• Packaging Box

Documents:

Videos:

Teltonika RUTXR1 Router - Quick Start Guide
