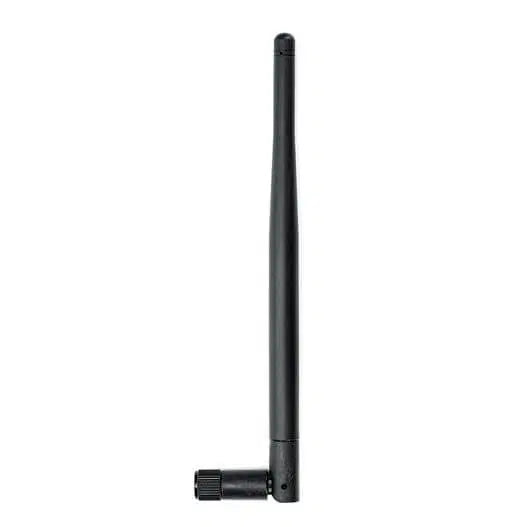

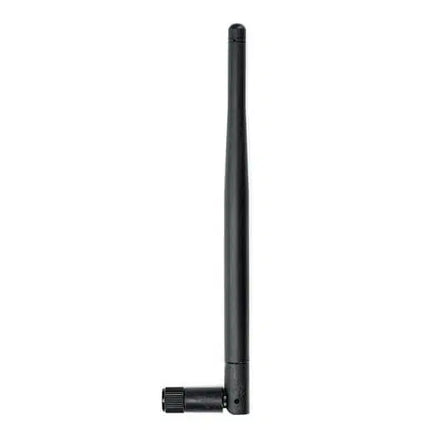

The 2J 2JW0515-915-C952B is a high-performance narrowband dipole antenna designed for ISM and LPWAN applications operating in the 902–928 MHz range. Its rugged housing is constructed from UV-resistant PC/ABS material, making it highly durable and suitable for both indoor and outdoor deployments. The antenna features a hinged SMA Male connector and operates reliably in extreme temperatures from -40°C to +85°C, ensuring consistent performance in challenging environments.
Product Features:
- This antenna is built using a dipole design, providing stable and efficient signal reception for narrowband communications.
- It is ground plane independent, allowing for flexible installation without the need for grounding considerations.
- The antenna offers a peak gain of 2.0 dBi within the 915 MHz ISM band, ensuring robust performance across the 902–928 MHz frequency range.
- Its hinged SMA Male connector enables adjustable positioning, offering improved adaptability in space-constrained installations.
- Constructed from durable PC/ABS UV-stable material, the housing is rated for use in extreme weather conditions.
- The compact design supports multiple mounting angles including straight (135 x 19 x 10 mm), 90° right-angle (110 x 42 x 10 mm), and 45° angled (88 x 112 x 10 mm).
- The product is manufactured in compliance with REACH and RoHS standards, free from hazardous materials.
Application Areas:
- Ideal for LPWAN (Low Power Wide Area Network) systems operating within the 902–928 MHz ISM band.
- Suitable for smart metering, asset tracking, agricultural sensors, and other IoT applications requiring reliable long-range communication.
- Designed for both indoor and outdoor deployments, including harsh environments due to its wide operating temperature range and weather-resistant housing.
- Recommended for compact enclosures or control panels where antenna angle flexibility is required for optimal signal positioning.
In the Box:
- 1x 2J 2JW0515-915-C952B ISM LPWAN Antenna
- Hinged SMA(M) Connector
Documents:
2JW0515-915-C952B ISM LPWAN Antenna - Datasheet
