2J 915MHz LPWAN Dipole Antenna, 902-928 MHz, 3 dBi, Wall Mount

2J 915MHz LPWAN Dipole Antenna, 902-928 MHz, 3 dBi, Wall Mount

On backorder

Item ID:
165021900
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
2J2115B-915-B05H
Send Request for Quote (RFQ) Discount Offers
2J 915MHz LPWAN Narrowband Dipole Antenna has coverage for the LoRa 915, ZigBee, SIGFOX and ISM spectrums. The frequency range is 902-928 MHz. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
Regular price $57.45
Regular price $0.00 Sale price $57.45
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The 2J 915MHz antenna housing is manufactured from a PC/ABS UV protective material, allowing it to withstand extreme temperatures ranging between -40C to +85C and making it ideal for outdoor applications. The design dimensions are 325 x 36 x 155 mm (220 x 16 mm). This antenna is ground plane independent. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Product Features:

  • The 2J 915MHz antenna is designed to be ground plane independent, regardless of mounting surface.
  • It delivers a peak gain of 3.1 dBi within the 915 MHz ISM band, providing enhanced signal strength and transmission quality.
  • This high-performance antenna is engineered for reliable operation in demanding environments.

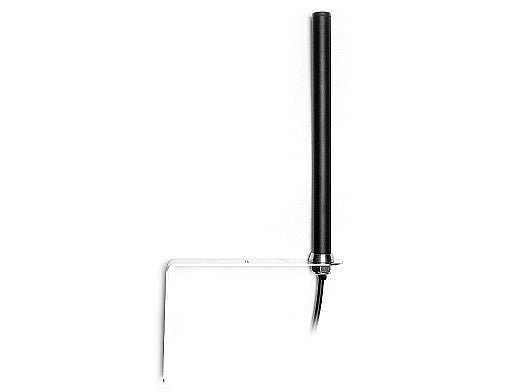

  • An antenna bracket is included to simplify installation and ensure secure mounting.
  • The waterproof design offers excellent resistance to moisture, making it suitable for harsh weather conditions.
  • Customizable cable and connector options are available to meet specific deployment requirements.

Application Areas:

  • The 2J antenna is ideal for LPWAN applications operating in the 902 to 928 MHz narrowband frequency range.
  • Its robust and UV-protected housing makes it well-suited for long-term outdoor deployments in smart agriculture, remote monitoring, and industrial IoT systems.
  • With ground plane independence and waterproof features, this antenna can be reliably used in transportation, environmental sensing, and asset tracking solutions.

In the Box:

  • 1 x 2J 2J2115B-915-B05H 915 MHz LPWAN Antenna
  • 1 x Antenna Bracket

Documents:

2J2115B-915-B05H ISM Antenna - Datasheet

Product Specifications

MPN 2J2115B-915-B05H
Antenna cable type RG58
Antenna port connectors SMA (M)
Brands 2J Antennas
Cable length m 3
Coverage type Omni-directional
Height 15.5
Ingress protection ip IP67
Installation type External mounting
Length 32.5
Low pim No
Max frequency mhz 928
Max gain dbd dbi 3.1
Mimo support No
Min frequency mhz 902
Min gain dbd dbi 3.1
Mount supported Wall mount
Mount supported detailed Wall mount
No of antenna ports 1
Power w 25
Technologies supported ISM
Width 3.6
