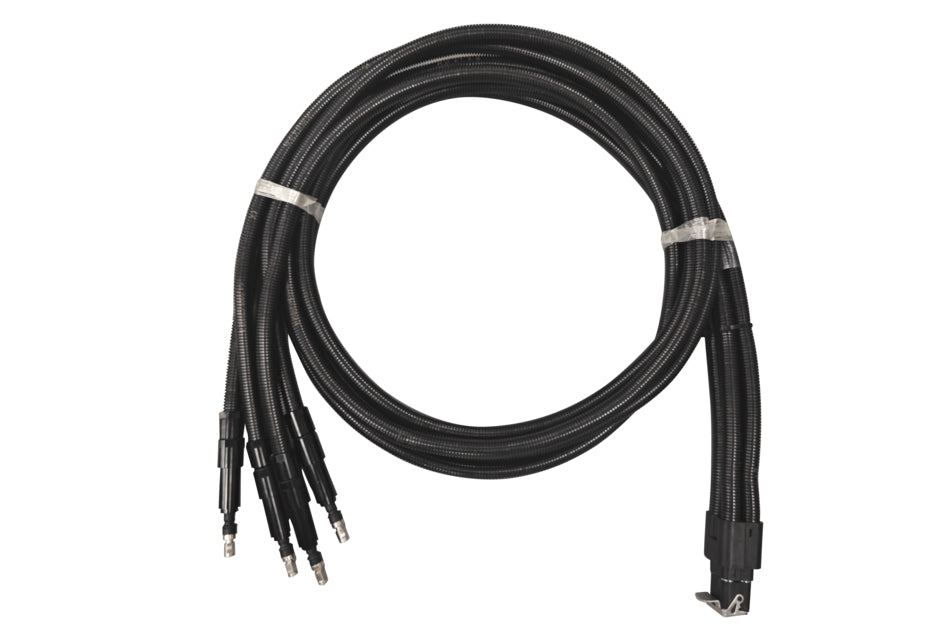

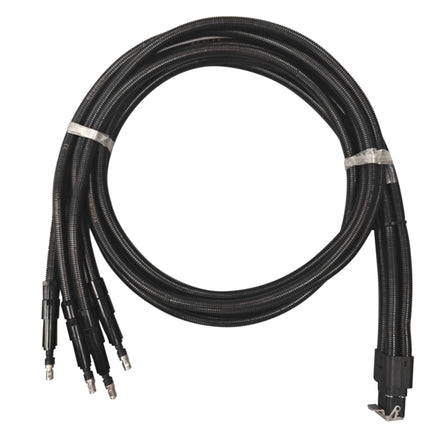

The Andrew HELIAX M-LOC4-LS2BNXMW-5M is a four-port multiport cluster cable assembly from the SureFlex range, designed to simplify RF connections at base station and antenna sites. It terminates in an M-LOC latching male connector on one end and a Nex10 male connector on the other, combining four separate RF paths into a single, manageable cable run. A conduit shield covers the assembly for added mechanical protection, making it suited to demanding outdoor and tower installations.

Product Features:

• Combines four RF ports into a single 3/8 inch SureFlex cable assembly for simplified cable management.
• Terminates with an M-LOC latching male connector at one end and a Nex10 male connector at the other.
• Measures 5 metres in length, suited to typical jumper runs between antennas and equipment.
• Is covered by a conduit shield for additional mechanical protection in exposed installations.

Application Areas:

• Connecting base station antennas to radio equipment in cellular network deployments.
• Running RF jumper connections at tower or rooftop sites where multiport cable management is needed.
• Use in outdoor wireless installations requiring a protected, multiport SureFlex cable run.

Selection & Installation Notes:

• Confirm that connected equipment uses matching M-LOC and Nex10 interfaces before ordering.
• Check that the 5 metre length suits the planned route between antenna and radio equipment.
• The conduit shield provides extra protection, useful where the cable is exposed to the elements or physical contact.

In the Box:

• 1 x Andrew HELIAX M-LOC4-LS2BNXMW-5M SureFlex multiport cable assembly

Documents:

MLOC4-LS2BNXMW-5M Datasheet
