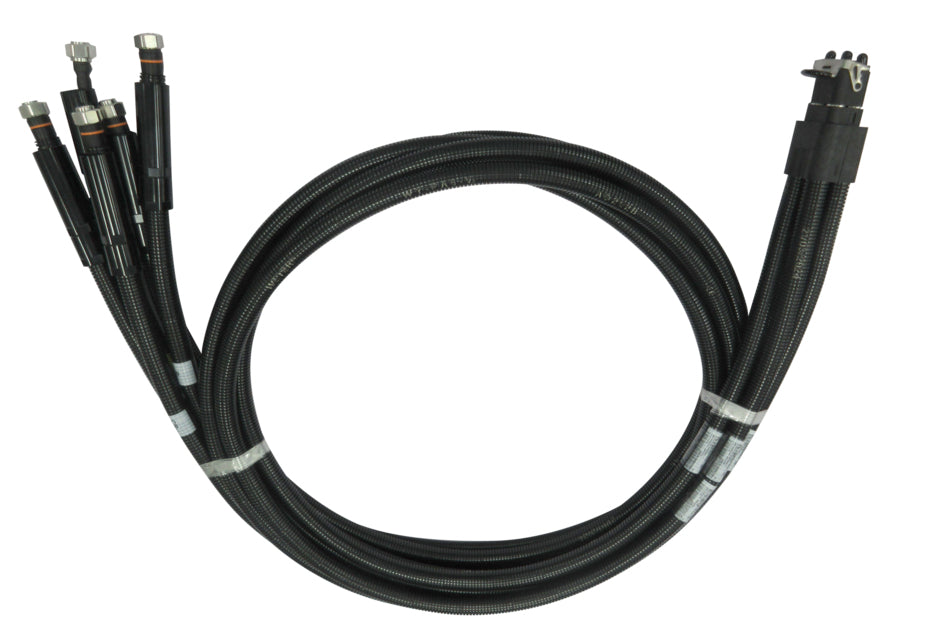

The Andrew HELIAX M-LOC Multiport cluster 5-port SureFlex cable assembly, part number MLOC5-LS2BNHMW-5M, is a factory-made jumper that links a 5-port M-LOC multiport cluster to equipment fitted with 4.3-10 male connectors. It uses 3/8 inch SureFlex coaxial cable in a 5 metre length, with each cable covered by a conduit shield for added protection. This pre-terminated assembly speeds up and simplifies multiple RF connections at a base station or antenna site.

Product Features:

• M-LOC latching male connectors at the multiport end allow quick, tool-free connection to the 5-port cluster.
• 4.3-10 male connectors at the equipment end suit radios and other equipment fitted with 4.3-10 female interfaces.
• SureFlex 3/8 inch coaxial cable construction is used for each of the five jumpers in the assembly.
• A conduit shield covers each cable in the assembly for extra mechanical and environmental protection.
• The assembly is supplied as a complete 5-port cluster, pre-terminated at a fixed 5 metre length.

Application Areas:

• Connecting multiport M-LOC cluster systems to base station radios or remote radio units at cell sites.
• Outdoor wireless installations where several RF connections must be made quickly between an antenna cluster and equipment.

Selection & Installation Notes:

• Confirm the equipment-end connector type, 4.3-10 male, matches the mating port on the radio or equipment before ordering.
• Check that the fixed 5 metre length suits the physical run between the multiport cluster and the connected equipment.
• Make sure a 5-port M-LOC cluster interface is what the installation requires, as the port count on this assembly is fixed.

Documents:

MLOC5-LS2BNHMW-5M Datasheet
