Cel-Fi GO G41 is a cellular repeater to boost 4G and 5G signals by up to 100 dB and can cover up to 3,000 sq. meters of area. Cel-Fi GO G41 part number G41-NE-003 is an ACMA approved signal repeater specifically for Vodafone operations on 700 MHz upper band on top of other cellular bands. Our DIY included ultra low-low CommScope CNT400 cables and Pulse connectors. Due to their high quality standard, you can draw maximum performance out of the Cel-Fi G41 unit. CNT400 is a very flexible cable and makes installation very easy. Need our help for a desktop study? Contact us for a quote.

Band Support:

• 3G: 850
• 4G/5G: 700L (G41-JE) or 700U (G41-NE)/850/900/1800/2100/2300/2600

• Click here to check Telstra coverage.
• Click here to check Optus coverage.
• Click hereto check Vodafone coverage.

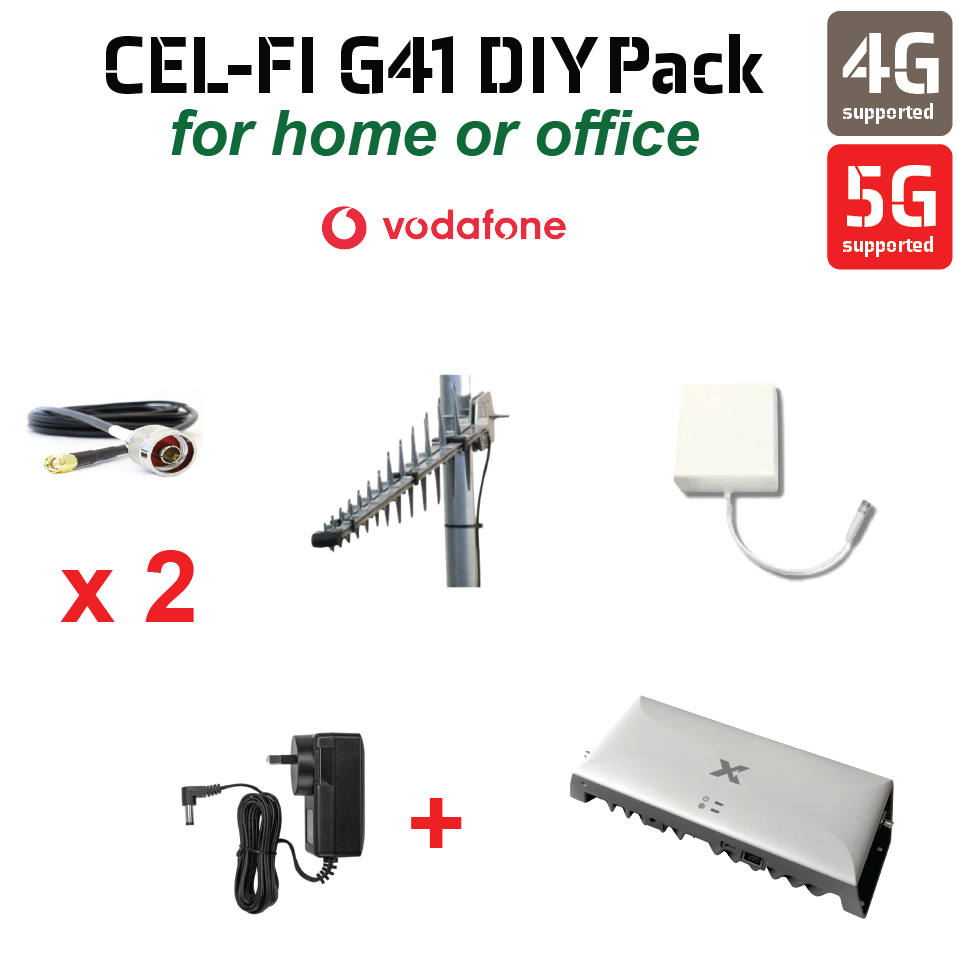

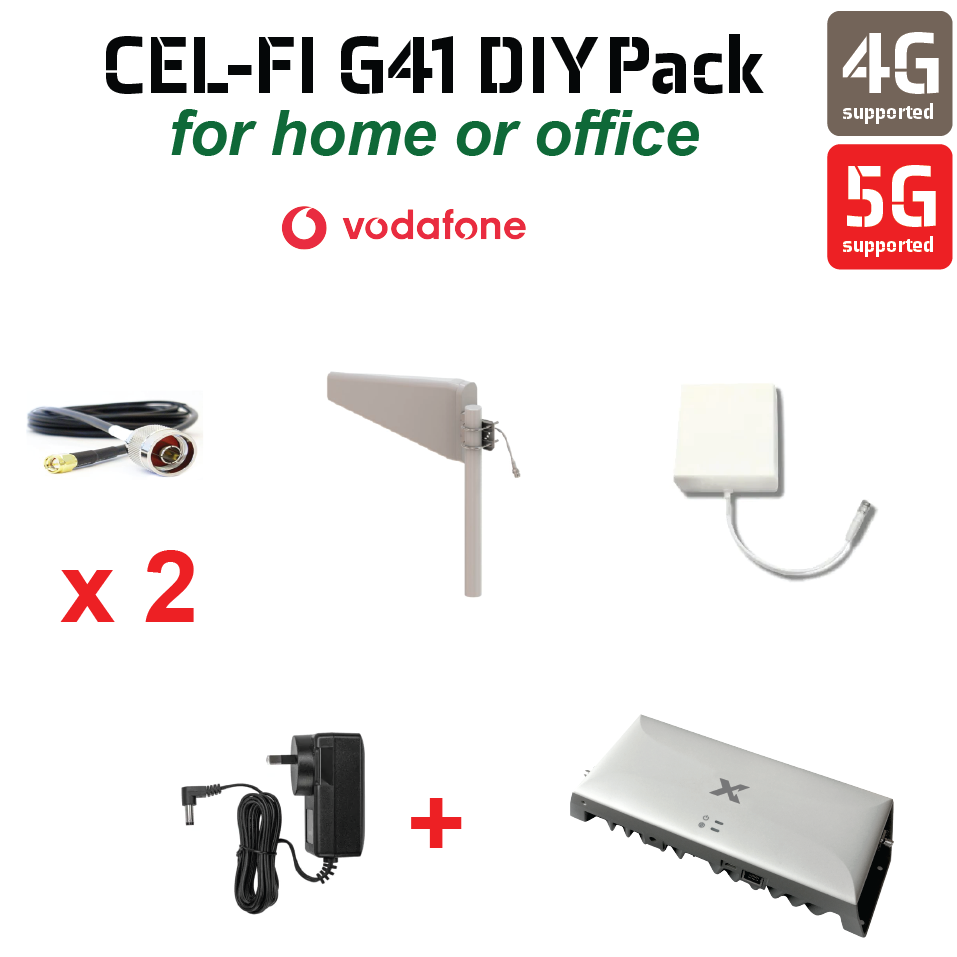

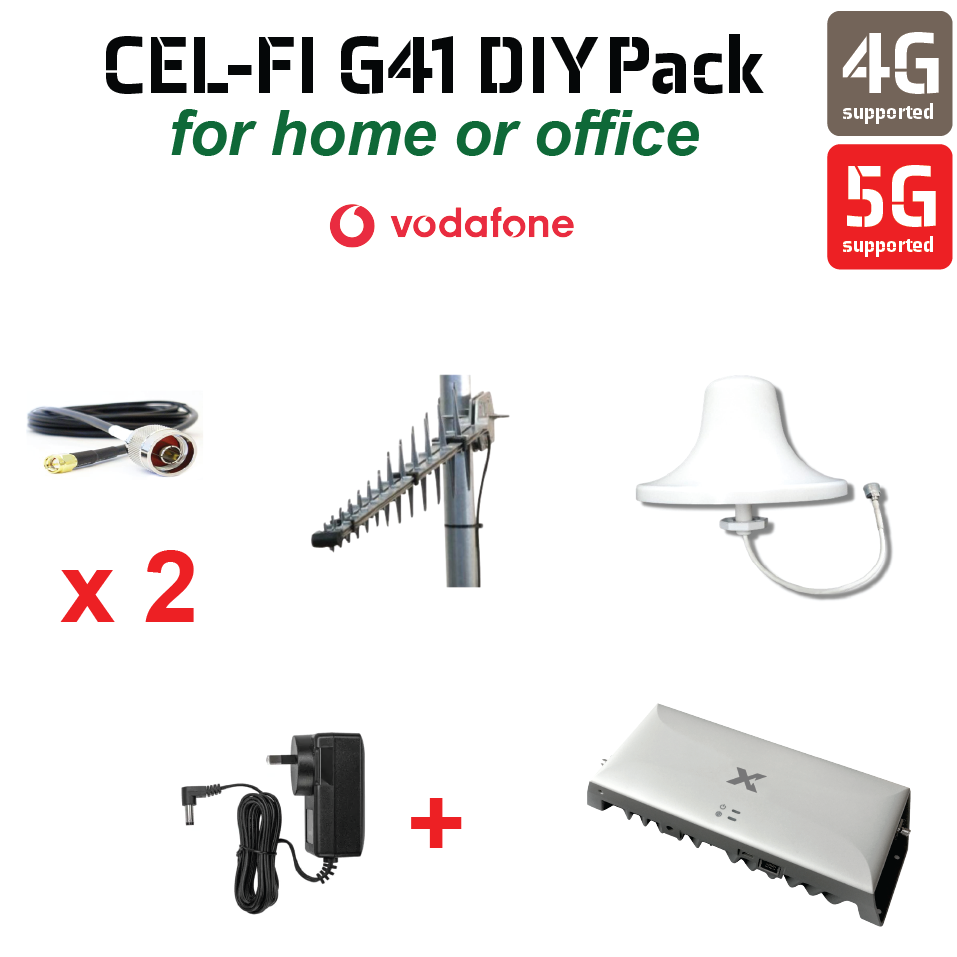

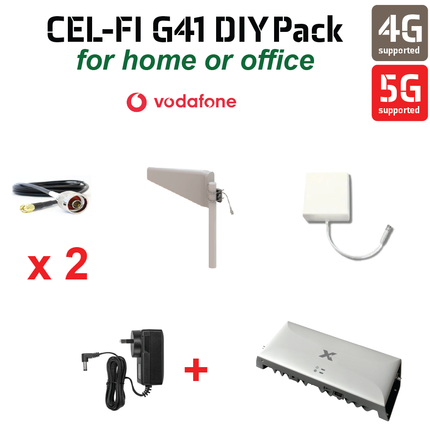

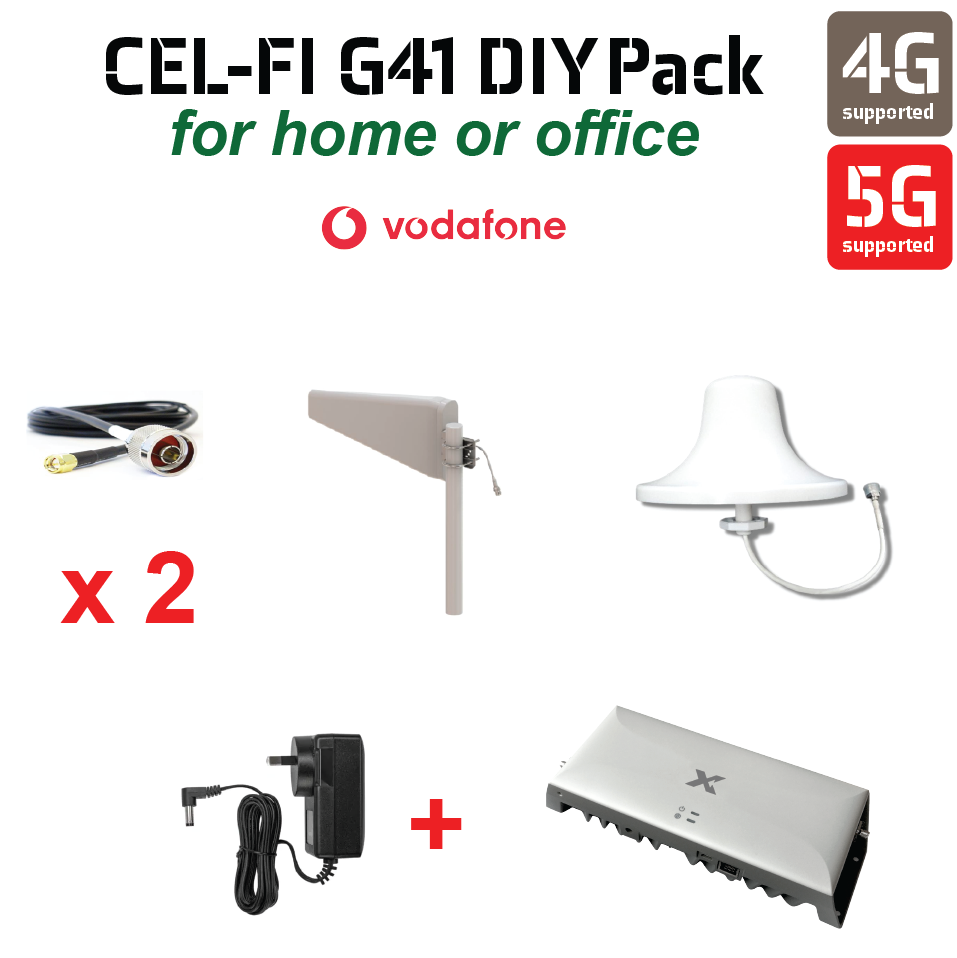

What's Shipped with the DIY Kit:

• 1x Nextivity Cel-Fi GO G41 model G41-NE-003 for Vodafone
• 1x 240V AC Power Supply to power up Cel-Fi G41
• 1x 1m Ethernet cable to optionally control Cel-Fi G41 using WAVE desktop app

Add-ons (as selected):

• 1x RFI 4G-5G Ceiling Dome or Wall Mount Panel antenna. This antenna will provide coverage inside your home or small office.
• 1x RFI 4G-5G enclosed mini LPDA or tough directional LPDA, bracket included. This antenna will be installed on pole of roof.
• 2x Pulse CNT400 N(M) to N(M) cables. These cables connect antennas to Cel-Fi G41 unit
• 2x Pulse SMA(F) to N(F) adaptors. These adaptors make installation easy. Connect one end to the SMA(F) connector on the G41 unit and the other to the cable.

G41 DIY Installation Guide:

Installation & configuration is easy with our DIY pack that comes will components you need (except external antenna pole & mount etc.). Plus you can refer to the Quick Start Guide is also available to guide you through the setup process. Nextivity's WAVE app can be downloaded free on iOS and Android phone to configure G41. We recommend reading Cel-Fi Installation Guide and FAQs (Cel-Fi ) section for more information & getting answers to questions.

Cel-Fi G41 Installation Guide - Plumbing diagram

G41 for Telstra/Optus and Vodafone:

G41's version G41-JE is suitable for lower Band-28 operation (700 MHz) which is used by Telstra & Optus, whereas G41-NE is suitable is suitable for upper Band-28 operation (700 MHz), which is used by Vodafone. Make sure you select the right unit before confirming your order. If you have 5G coverage on 3500 MHz band in your area, consider installing Cel-Fi G51 solution instead. Please contact us via phone, chat or email if you need any assistance with selecting the right product.

Product Features:

• Supports Telstra, Optus and Vodafone, one operator at a time, switchable via WAVE app.
• Support for Dynamic Spectrum Sharing (DSS) 4G & 5G operation.
• Relay two channels simultaneously, each 20 MHz maximum, on 3G, 4G or 5G band (5/10/15/20 MHz).
• Total system relay bandwidth is 40 MHz max, and it supports multiple channels per band.
• Supports in-band and guard-band IoT deployments.
• Coverage of up to 3000 sq. meters with a gain up to 100 dB
• Both voice and data supported on 4G and 5G networks.
• Ethernet port monitoring through the Nextivity WAVE Portal.

Application Areas:

• Government buildings
• Agricultural settings
• Parking garages
• IoT and M2M (machine to machine)
• Small manufacturing operations
• Business in single / multi-level commercial properties
• Remote or rural locations
• Large home

Operator Switching Instructions:

Before using the Cel-Fi Go G51, it's crucial to select your preferred operator using the WAVE App from Nextivity.

Documents:

Cel-Fi GO G41 - Datasheet Cel-Fi GO G41 - Quick Start Guide

Videos:

Cel-Fi GO: How to Switch Operators with Cel-Fi WAVE app? Cel-Fi GO: Solves Cellular Coverage in Buildings, Remote Places, or on the Go

Cel-Fi Wave App Download

CEL-FI WAVE is available on both smartphones and tablets from the following app stores:
