Combination Array Binary Lower Section 400-520 MHz is designed for unparalleled flexibility in UHF communication. It is delivered in two sections for easy shipping and handling. This array allows on-site assembly. The lower section, featuring a larger diameter mast stock, accommodates various configurations. It is including a standard UHF upper array, collinear antenna option, or external couplings for higher gain. This array provides unrestricted gain, pattern, and beamtilt combinations, with options for mounting additional arrays and telescoping capabilities.
Product Features:
-
Two-Section Design: Allows ease of shipping and on-site assembly for simplified installation.
-
Versatile Configurations: Lower section accommodates a standard UHF upper array or collinear antenna option for customized setups.
-
Telescoping Capability: Upper array or collinear antenna can telescope into the lower section for added flexibility.
-
Phasing Options: External phasing harness (e.g., PH42-67-P) enables phased configurations for enhanced performance.
-
Stacking Options: UHF or 800 MHz meander (COL40 series and COL80 series) can be stacked on top via the COL-Kit mounting adaptor kit.
-
Unrestricted Combinations: Enables unrestricted gain, pattern, and beamtilt combinations for optimal coverage.
-
Expanded Bandwidth: RFI UHF dipole arrays offer expanded bandwidth, high power ratings, and unmatched performance in gain, pattern, and intermodulation.
Application Areas:
- Ideal for UHF communication in scenarios with limited antenna positions on prime sites.
- Provides a flexible solution for system engineers and site owners to reduce the overall number of antennas.
In the Box:

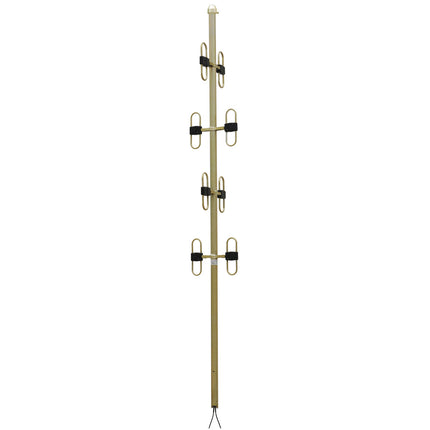

- RFI BA80-67L-P UHF Dipole Array
Documents:
RFI BA80-67L-P Binary Array - Datasheet
RFI Dipole Array - Installation Guide
