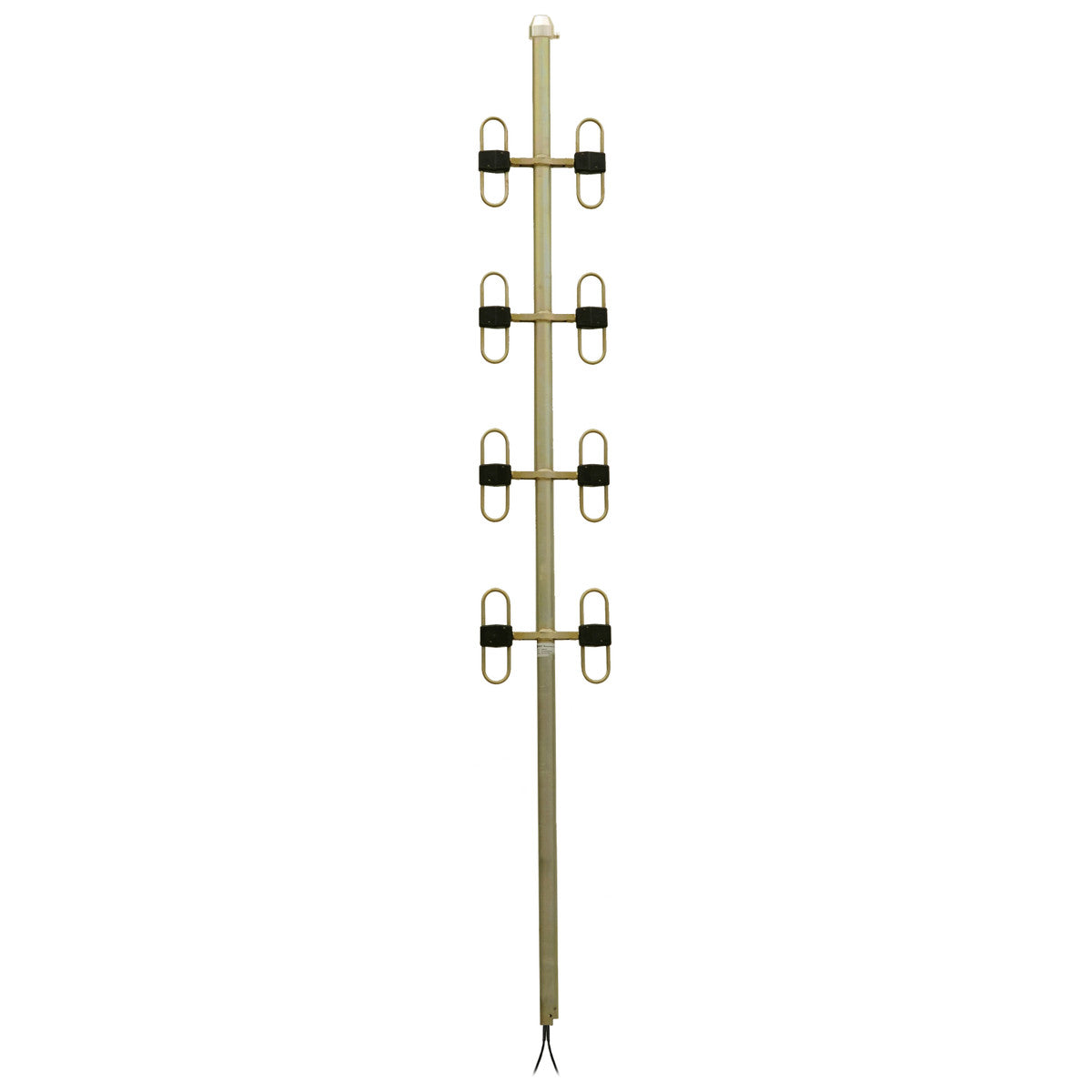

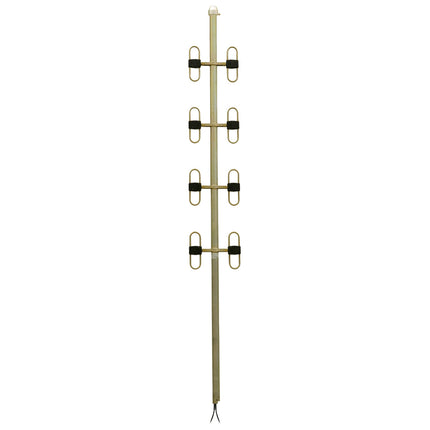

EA80-67L-P is the lower section of the Combination Elliptical Array from RFI. The RFI range of UHF dipole arrays provide expanded bandwidth, high power ratings and unequalled performance in gain, pattern and intermodulation performance. Ever increasing costs and site density requirements are reducing availability of antenna positions on prime sites. In order to reduce the overall number of antennas the RFI dipole array series provides system engineers and site owners with a flexible solution to reduce antenna numbers. The Dual Section Combination Dipole Array Arrays are provided in two sections for ease of shipping and handling and can be assembled on site. The lower section array is made on a larger diameter mast stock, an upper array or collinear antenna option can telescope into the lower section. Using the lower only option part number EA80-67L-P, the following can be considered:

• A standard UHF upper array can be mounted on top, and even phased together using an appropriate external phasing harness (PH42-67-P for example)
• A UHF or 800MHz meander (COL40 series and COL80 series) can be stacked on top via our COL-Kit mounting adaptor kit.

A different gain or pattern option on the standard upper array may be used. Both upper and lower arrays can be any one of RFI's standard UHF arrays or be externally coupled for even higher gain using a PH42-67 phasing harness. This type of configuration provides unrestricted gain, pattern and beamtilt combinations.
