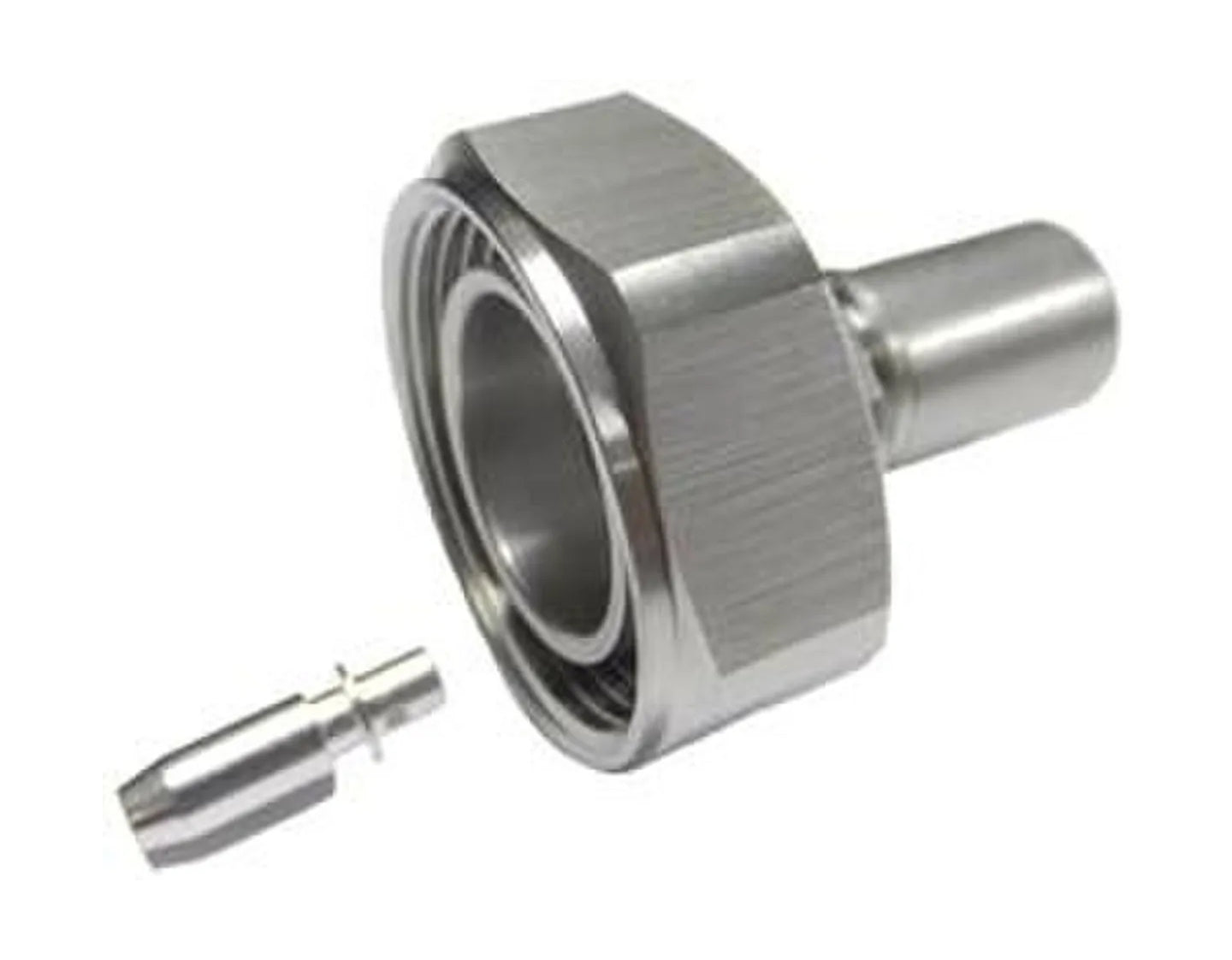

The CommScope 7-16 DIN-Male Braided Cable connector is a high-quality 400BPDM-CR designed for CNT-400 and CNT-400-Flex braided cables. The typical insertion loss is 0.05 dB, and the operating frequency band ranges from 0 to 6000 MHz.
Product Features:
- This CommScope 7-16 DIN-Male Braided Cable connector has a straight body style with 3.8 cm length.
- The inner contact is attached by soldering and is plated with silver.
- The outer contact is attached by crimping and is plated with trimetal.
- Both the cable and connector have an impedance of 50 ohms.
- The DC test voltage is 2500 V, with a maximum RF operating voltage of 894 V (vrms).
- The maximum inner contact resistance is 1.5 mOhm, and the maximum outer contact resistance is 0.4 mOhm.
- The minimum insulation resistance is 10000 mOhm.
- The attenuation is measured at an ambient temperature of 20 °C.
Application Areas:
- Ideal for use in telecom networks and infrastructure.
- Suitable for broadcasting applications requiring reliable signal transmission.
- Perfect for industrial environments where robust connectivity is crucial.
- Ensures reliable connections in data center applications.
In the Box:
- 1 x CommScope 400BPDM-CR 7-16 DIN-Male Connector
Documents:
CommScope 400BPDM-CR Connector - Datasheet
CommScope 400BPDM-CR Connector - Installation Guide
