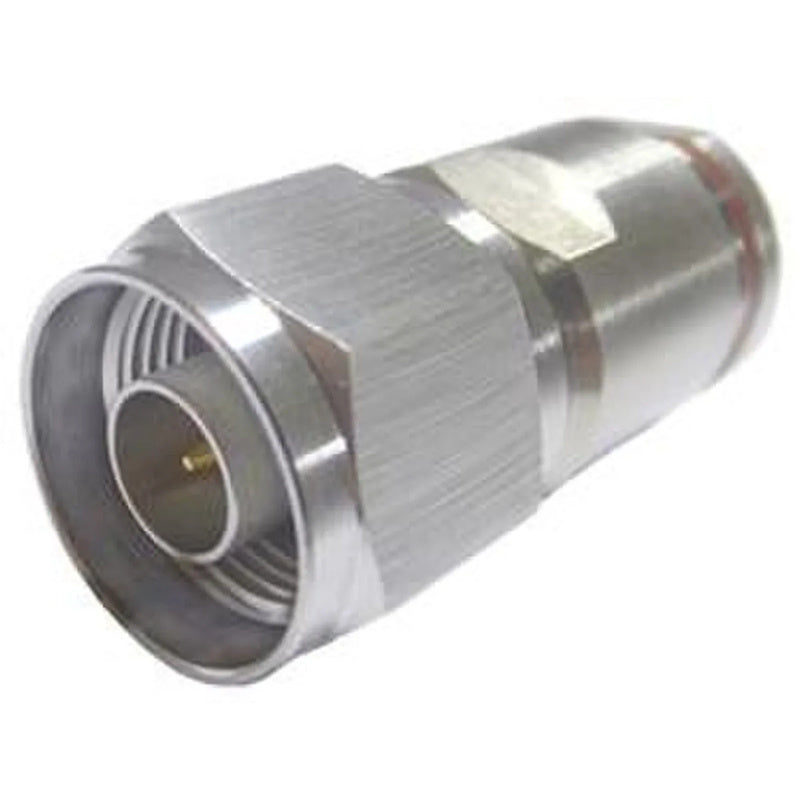

CommScope 400BPNM-C-G N-Male Connector, Captive/Crimp, Gold Pin - for CNT-400 Braided Cable

CommScope 400BPNM-C-G N-Male Connector, Captive/Crimp, Gold Pin - for CNT-400 Braided Cable

Available

Item ID:
168018276
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
400BPNM-C-G
Send Request for Quote (RFQ)
The CommScope 400BPNM-C-G is a high-quality Captive/Crimp Type N Male Connector with a Gold Pin, designed specifically for CNT-400 braided cable. It features a straight body style with Type-N male interface.
Regular price $12.65
Regular price $0.00 Sale price $12.65
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope 400BPNM-C-G is a high-quality Captive/Crimp Type N Male Connector with a Gold Pin, designed specifically for CNT-400 braided cable. It features a straight body style with Type-N male interface. The inner contact is captivated and plated with gold. The outer contact is attached by clamping and plated with trimetal.

Product Features:

  • Both the cable and connector have an impedance of 50 ohms.
  • The DC test voltage is 2500 V, with a maximum RF operating voltage of 707 V (vrms).
  • The maximum inner contact resistance is 1 mOhm, and the maximum outer contact resistance is 0.25 mOhm.
  • The minimum insulation resistance is 5000 mOhm.
  • The operating frequency band ranges from 0 to 6000 MHz, with a peak power of 10 kW.
  • The connector retention tensile force is 330 N, and the retention torque is 0.56 N-m.
  • The coupling nut proof torque is 1.7 N-m, and the retention force is 450 N.
  • The operating temperature range is from -40 °C to +85 °C, and the storage temperature range is from -65 °C to +125 °C.
  • The attenuation is measured at an ambient temperature of 20 °C, and the average power is measured at 40 °C.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1 x CommScope 400BPNM-C-G N-Male Connector, Captive/Crimp, Gold Pin - for CNT-400 Braided Cable

Documents:

CommScope 400BPNM-C-G Connector - Datasheet CommScope 400BPNM-C-G Connector - Installation Guide

Product Specifications

MPN 400BPNM-C-G
Brands CommScope
Cable supported CNT-400
Cable type connectors CNT400
Centre conductor Captivated, Gold Pin
Component type Braided cable connector
Connector end a N (M)
Durability 500 cycles
Height 2.025
Impedance ohm 50
Inner attachment Crimp
Insertion loss db 0.05
GTIN/EAN 646444352055
Length 3.548
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Straight
Nominal size 0.405 in
Operating temperature c -40 to +85
Prep toolset CTBC
Torque nm 1.7
Width 2.025
