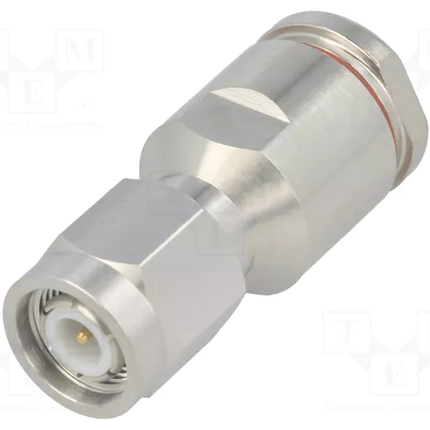

CommScope 400BPTM-C TNC-Male Connector for CNT-400 Braided Cable

CommScope 400BPTM-C TNC-Male Connector for CNT-400 Braided Cable

Available

Item ID:
168018575
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
400BPTM-C
Send Request for Quote (RFQ)
The CommScope 400BPTM-C is a high-quality, straight body type TNC-Male Connector designed specifically for CNT-400 braided cable.
Regular price $18.95
Regular price $0.00 Sale price $18.95
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope 400BPTM-C is a high-quality TNC-Male Connector designed specifically for CNT-400 braided cable. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the 400BPTM-C connector guarantees dependable connectivity and signal integrity.

Product Features:

  • This connector has a straight body style and features a TNC Male interface.
  • The inner contact is attached using a captivated method and has gold plating.
  • The outer contact is attached using a clamp method and has trimetal plating.
  • The typical insertion loss is 0.05 dB.
  • The cable and connector impedance are both 50 ohms.
  • It can handle a DC test voltage of 1500 V.
  • This connector operates in the frequency band of 0 – 6000 MHz.
  • The maximum RF operating voltage is 500 V (vrms).
  • The interface durability is 500 cycles.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope 400BPTM-C TNC-Male Connector

Documents:

CommScope 400BPTM-C Connector - Datasheet CommScope 400BPTM-C Connector - Installation Guide
