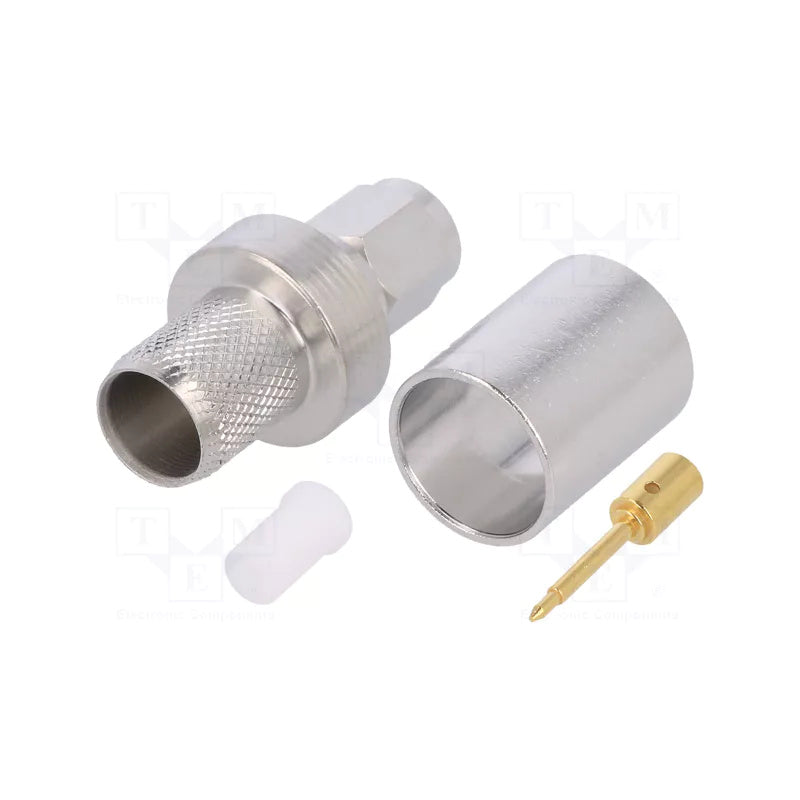

CommScope 400PSM-CR SMA-Male Connector for CNT-400 Braided Cable

CommScope 400PSM-CR SMA-Male Connector for CNT-400 Braided Cable

Available

Item ID:
168018583
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
400PSM-CR
Send Request for Quote (RFQ) Discount Offers
The CommScope 400PSM-CR is a high-quality, straight body style SMA-Male Connector designed specifically for CNT-400 braided cable.
Regular price $32.85
Regular price $0.00 Sale price $32.85
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope 400PSM-CR is a high-quality SMA-Male Connector designed specifically for CNT-400 braided cable. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the 400PSM-CR connector guarantees dependable connectivity and signal integrity.

Product Features:

  • This connector has a straight body style and features an SMA Male interface.
  • The inner contact is attached using a solder method and has gold plating.
  • The outer contact is attached using a crimp method and has trimetal plating.
  • This connector is not pressurizable and has a typical insertion loss of 0.05 dB.
  • The cable and connector impedance are both 50 ohms.
  • This connector operates in the frequency band of 0 – 6000 MHz.
  • It can handle a peak power of up to 5 kW and the maximum RF operating voltage is 500 V (vrms).
  • The interface durability is 500 cycles.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope 400PSM-CR SMA-Male Connector

Documents:

CommScope 400PSM-CR Connector - Datasheet CommScope 400PSM-CR Connector - Installation Guide

Product Specifications

MPN 400PSM-CR
Brands CommScope
Cable supported CNT-400
Cable type CNT-400
Cable type connectors CNT400
Centre conductor Solder
Component type Connector
Connector SMA(M)
Connector end a SMA (M)
Height 1.4
Impedance ohm 50
Inner attachment Solder, Crimp
Length 3.232
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Straight
Prep toolset CTBC
Width 1.4
