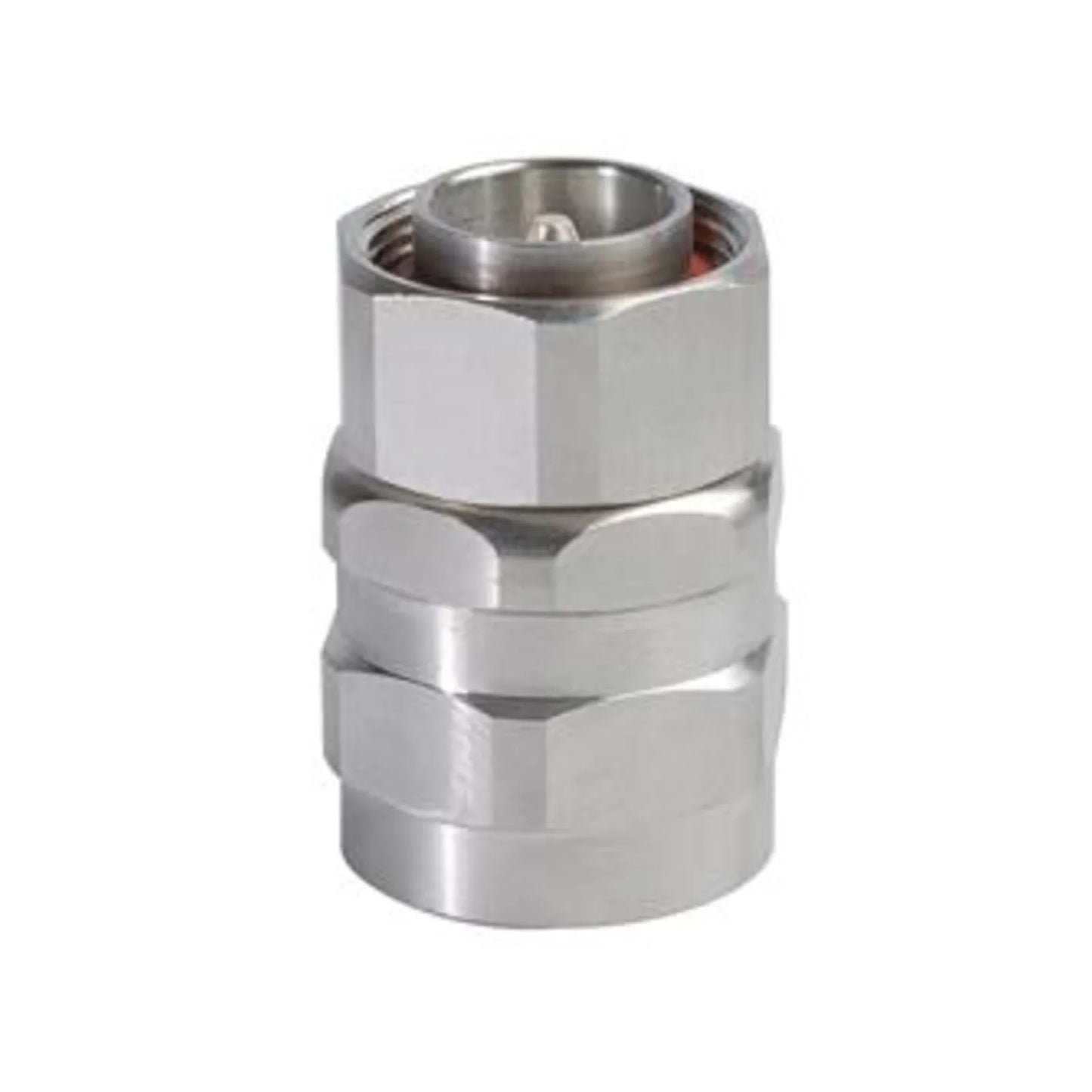

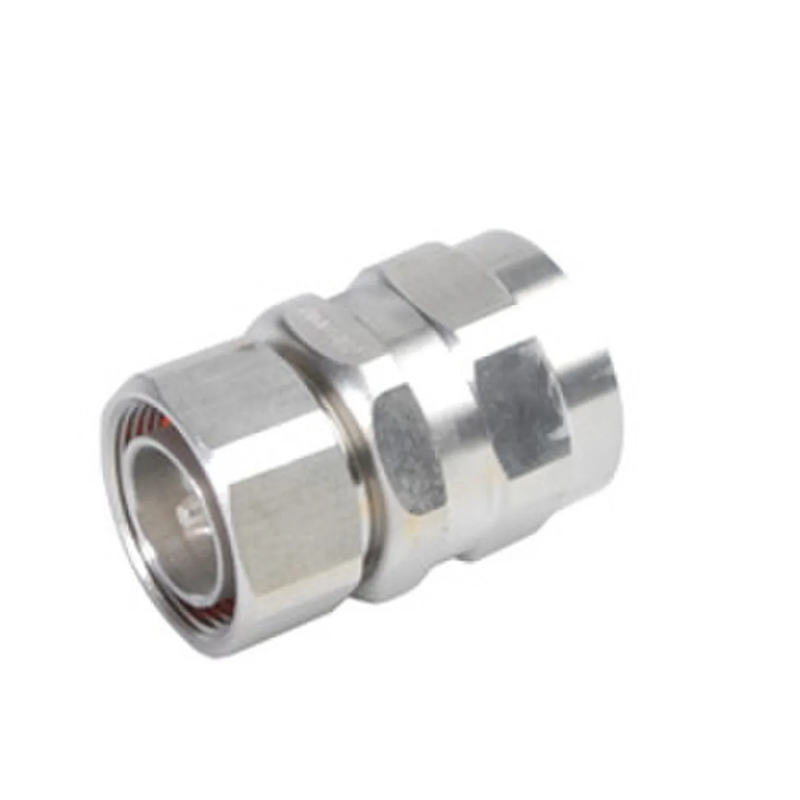

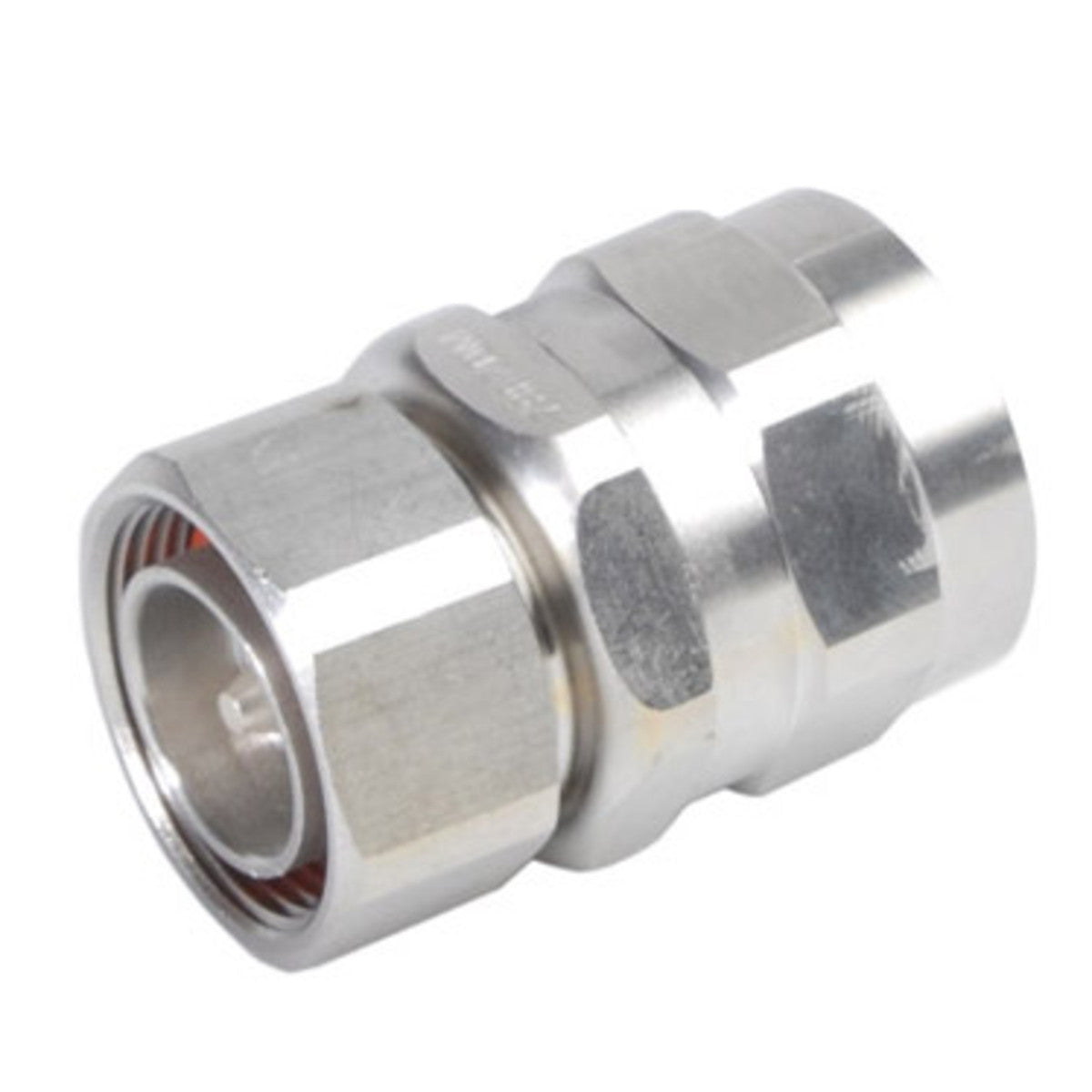

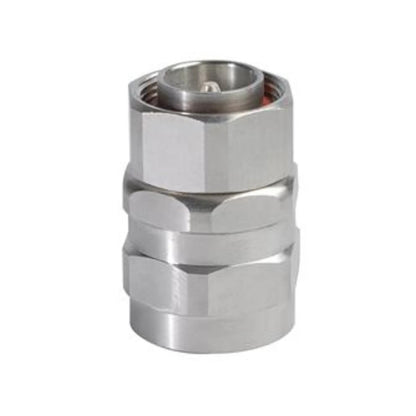

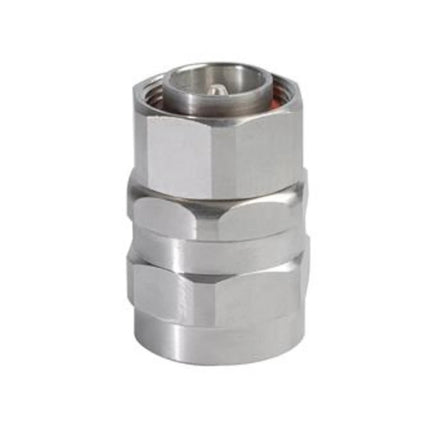

CommScope 78EZDM 7-16 DIN-Male Ezfit Connector for 7/8'' FXL-780, AVA5-50 and AVA5-50FX Cables

CommScope 78EZDM 7-16 DIN-Male Ezfit Connector for 7/8'' FXL-780, AVA5-50 and AVA5-50FX Cables

Available

Item ID:
168018591
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
78EZDM
Send Request for Quote (RFQ)
The CommScope 78EZDM is a high-quality 7-16 DIN-Male Ezfit Connector designed specifically for 7/8'' FXL-780, AVA5-50, and AVA5-50FX cables.
Regular price $29.05
Regular price $0.00 Sale price $29.05
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope 78EZDM is a high-quality 7-16 DIN-Male Ezfit Connector designed specifically for 7/8'' FXL-780, AVA5-50, and AVA5-50FX cables. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the 78EZDM connector guarantees dependable connectivity and signal integrity.

Product Features:

  • This connector has a straight body style and is designed for the AVA5-50, AVA5-50FX, and FXL-780 cable families.
  • The inner contact is attached using a captivated method and has silver plating.
  • It features a 7-16 DIN Male interface with a straight mounting angle.
  • The outer contact is attached using a clamp method and has trimetal plating.
  • This connector is not pressurizable.
  • The cable and connector impedance are both 50 ohms.
  • It can handle a peak power of up to 40 kW.
  • The attachment durability is 25 cycles.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope 78EZDM 7-16 DIN-Male Ezfit Connector

Documents:

CommScope 78EZDM Connector - Datasheet EZfit Series Connectors Installation Using Drill Tool EZfit Series Connectors Installation Using Hand Tool

Videos:

EZfit Series Connectors Installation Using Automated Drill Tool EZfit Series Connectors Installation Using Manual Tool
