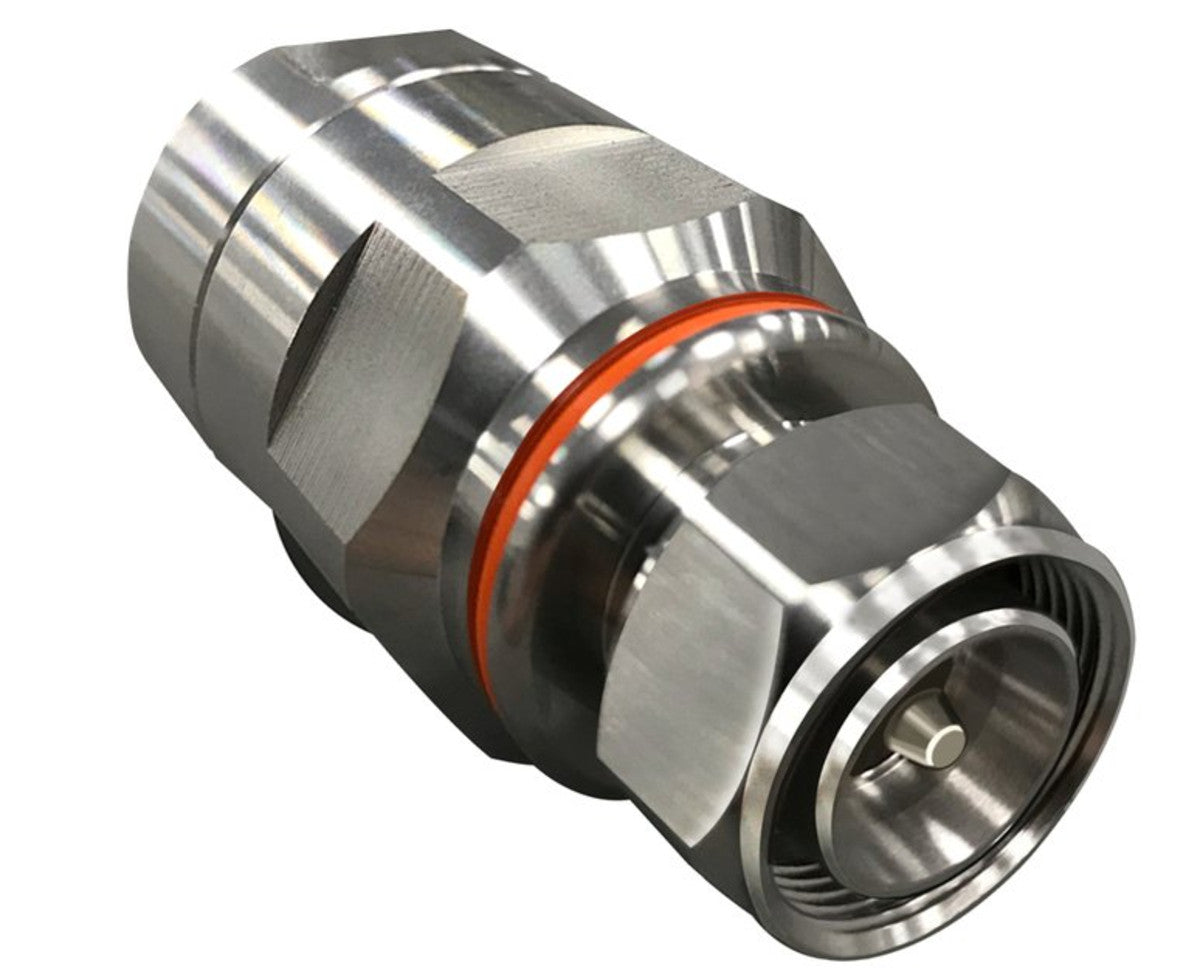

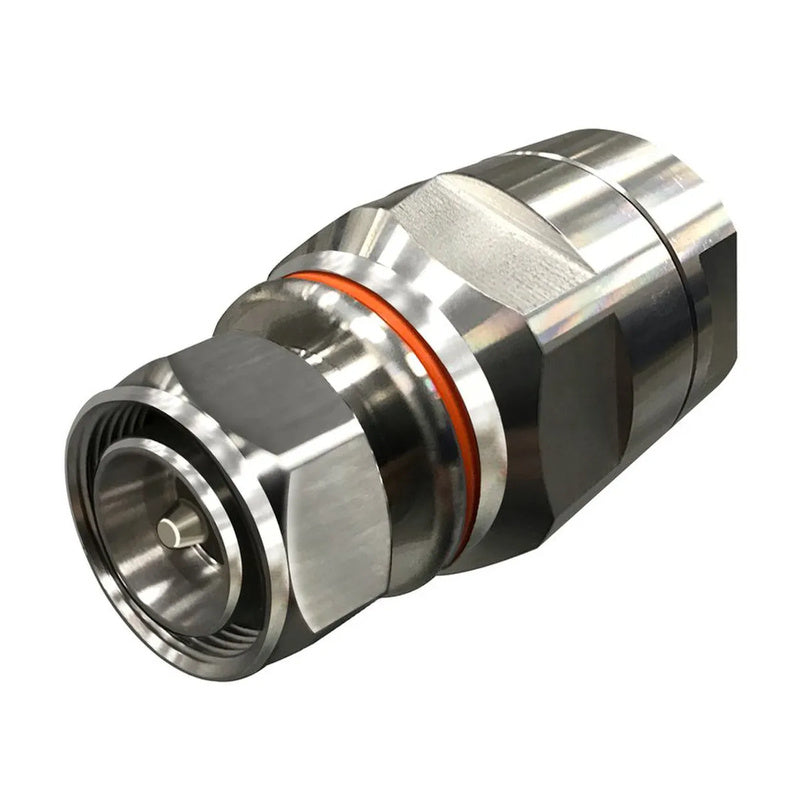

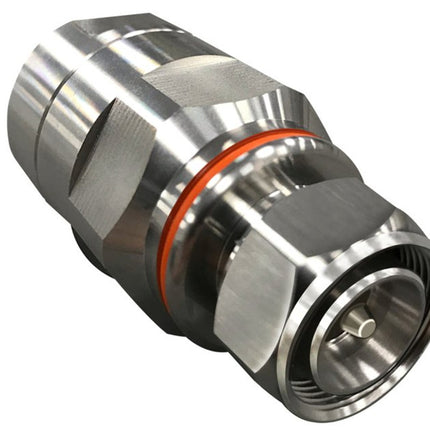

CommScope 78EZHM 4.3-10-Male EZfit Connector for 7/8'' AVA5-50 and AVA5-50FX Cables

CommScope 78EZHM 4.3-10-Male EZfit Connector for 7/8'' AVA5-50 and AVA5-50FX Cables

Available

Item ID:
168018259
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
78EZHM
Send Request for Quote (RFQ)
The CommScope 4.3-10-Male EZfit Connector is a high-quality RF connector engineered for seamless compatibility with 7/8'' AVA5-50 and AVA5-50FX cables. Featuring an 4.3-10-Male interface with a straight mounting angle, this connector offers easy integration into various RF applications.
Regular price $44.30
Regular price $0.00 Sale price $44.30
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope 4.3-10-Male EZfit Connector is a high-quality RF connector engineered for seamless compatibility with 7/8'' AVA5-50 and AVA5-50FX cables. Featuring an 4.3-10-Male interface with a straight mounting angle, this connector offers easy integration into various RF applications.

Product Features:

  • The body style is straight, and the cable family includes AVA5-50 and AVA5-50FX.
  • The inner contact is captivated and plated with silver.
  • The outer contact is attached by clamping and plated with trimetal.
  • The interface is a 4.3-10 Male connector with a straight mounting angle.
  • The connector impedance is 50 ohms, and the operating frequency band ranges from 0 to 5000 MHz.
  • The peak power is a maximum of 15 kW.
  • The coupling nut proof torque is 10 N-m.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1 x CommScope 78EZHM 4.3-10-Male EZfit Connector for 7/8'' AVA5-50 and AVA5-50FX Cables

Documents:

CommScope 78EZHM Connector - Datasheet CommScope 78EZHM Connector - Installation Guide

Product Specifications

MPN 78EZHM
Brands CommScope
Cable supported AVA5-50, AVA5-50FX
Cable type AVA5-50, AVA5-50FX
Cable type connectors FXL780
Centre conductor Captive
Component type Wireless and radiating connector
Connector end a 4.3-10 (M)
Crimp set or tool 780-EZPT/78HPT
Height 3.7
Impedance ohm 50
Inner attachment Other
Insertion loss db 0.05
GTIN/EAN 888063908057
Length 5.199
Max frequency mhz 5000
Min frequency mhz 0
Mounting angle Straight
Nominal size 7/8 in
Operating temperature c -40 to +85
Prep toolset A5FX-EZPT, 78-HPT
Torque nm 10
Width 3.7
