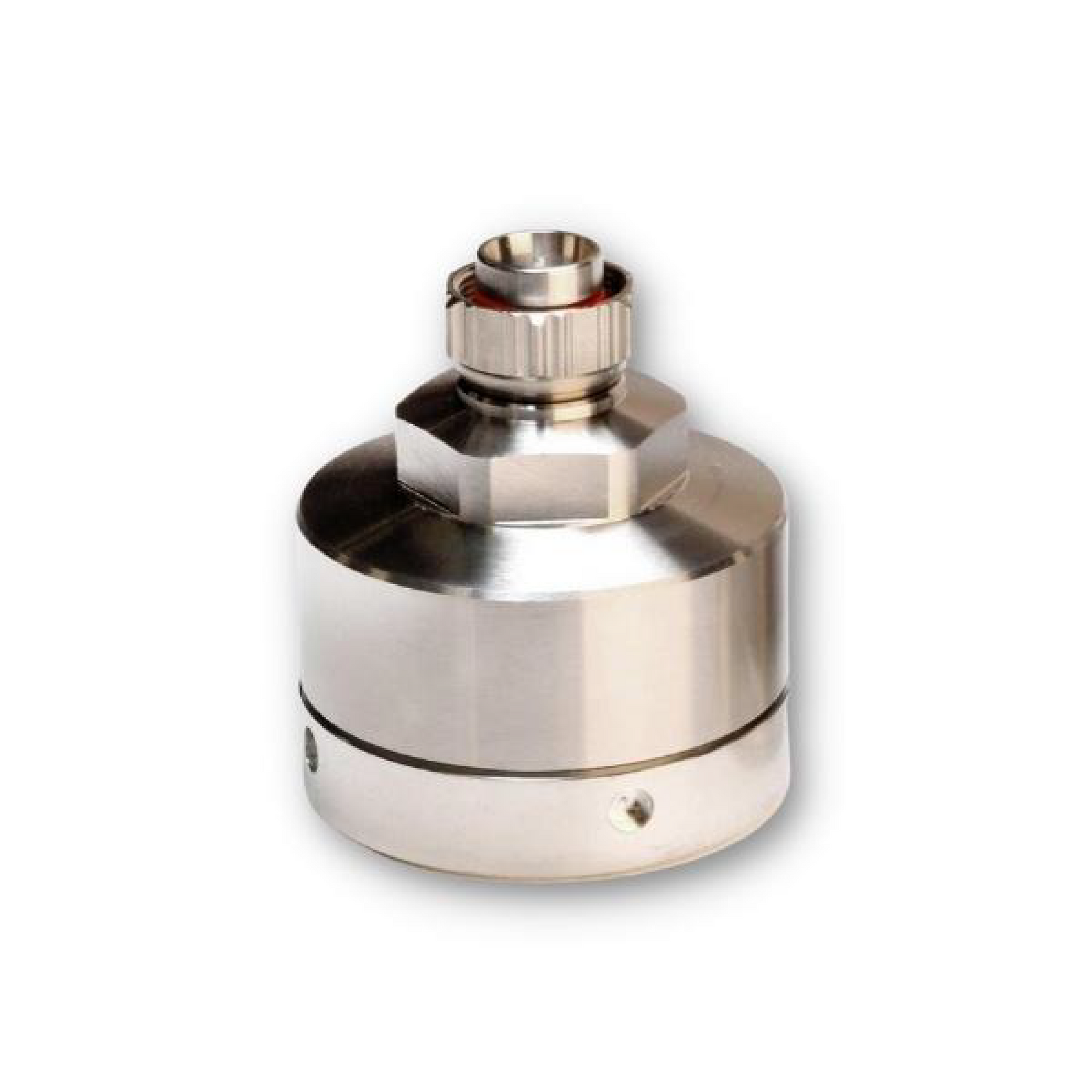

CommScope A6HM-S 4.3-10-Male Connector for 1-1/4'' AVA6-50 Cable

CommScope A6HM-S 4.3-10-Male Connector for 1-1/4'' AVA6-50 Cable

Available

Item ID:
168018270
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A6HM-S
Send Request for Quote (RFQ)
The CommScope A6HM-S is a high-quality 4.3-10 Male connector specifically designed for use with 1-1/4'' AVA6-50 cables. It features a straight body style, a 4.3-10 Male interface, and a straight mounting angle.
Regular price $139.50
Regular price $0.00 Sale price $139.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope A6HM-S is a high-quality 4.3-10 Male connector specifically designed for use with 1-1/4'' AVA6-50 cables. It features a straight body style, a 4.3-10 Male interface, and a straight mounting angle.

Product Features:

  • The inner contact is captivated and plated with silver.
  • The outer contact is attached by clamping and plated with trimetal.
  • The 3rd order IMD at 1800 MHz is -117 dBm, tested with two +43 dBm carriers.
  • The typical insertion loss is 0.05 dB and coupling nut proof torque is 10 N-m.
  • Both the cable and connector have an impedance of 50 ohms.
  • The operating frequency band ranges from 0 to 4000 MHz.
  • The operating temperature range is from -55 °C to +85 °C.
  • The attenuation is measured at an ambient temperature of 20 °C, and the average power is measured at 40 °C.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1 x CommScope A6HM-S 4.3-10-Male Connector for 1-1/4'' AVA6-50 Cable

Documents:

CommScope A6HM-S Connector - Datasheet CommScope A6HM-S Connector - Installation Guide

Product Specifications

MPN A6HM-S
Brands CommScope
Cable supported AVA6-50
Component type Wireless and radiating connector
Connector end a 4.3-10 (M)
Height 4.8
Impedance ohm 50
Inner attachment Other
Insertion loss db 0.05
Length 6.02
Max frequency mhz 4000
Min frequency mhz 0
Mounting angle Straight
Nominal size 1-1/4 in
Operating temperature c -55 to +85
Prep toolset MCPT-114158-S
Torque nm 10
Width 4.8
