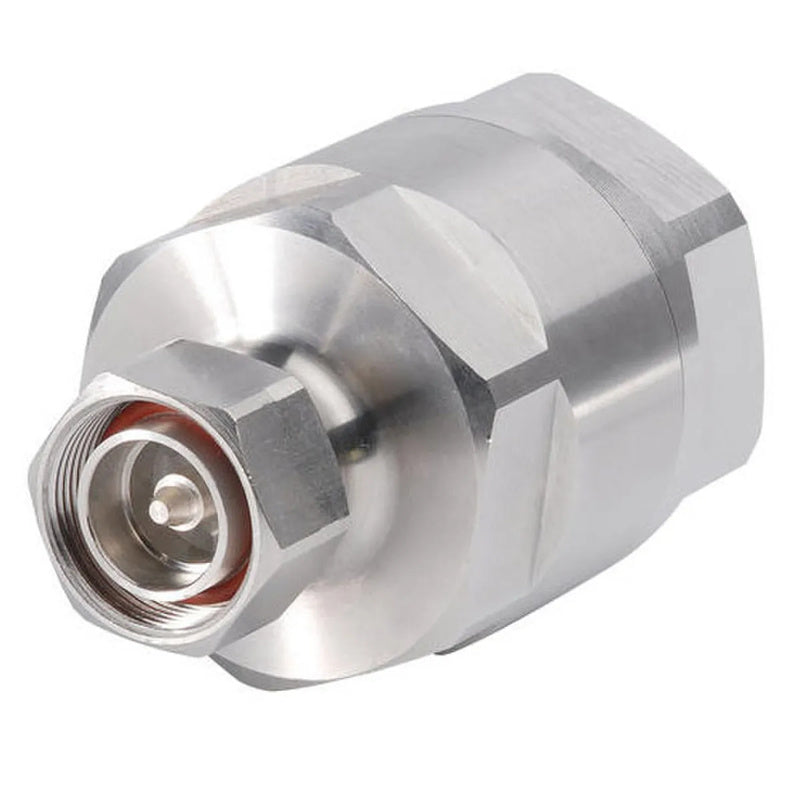

The CommScope AL7DM-PSA is a high-quality 7-16 DIN-Male Positive Stop Connector designed specifically for 1-5/8'' cables. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the AL7DM-PSA connector guarantees dependable connectivity and signal integrity.

Product Features:

• The connector has a straight body style and a straight mounting angle.
• The inner contact is captivated and has silver plating.
• This connector features a 7-16 DIN Male interface.
• The outer contact is attached using a ring-flare method and has trimetal plating.
• It is not pressurizable.
• The cable and connector both have a 50-ohm impedance.
• It can handle a DC test voltage of 4000 V.
• This connector has an attachment durability of 25 cycles and an interface durability of 500 cycles.

Application Areas:

• This connector is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This connector ensures reliable connections in data center applications.

In the Box:

• 1x CommScope AL7DM-PSA 7-16 DIN-Male Positive Stop Connector

Documents:

CommScope AL7DM-PSA Connector - Datasheet CommScope 1 5/8 Inch Positive Stop Connectors - Installation Guide

Videos:

CommScope AL7DF-PSA Connector - Installation Guide
