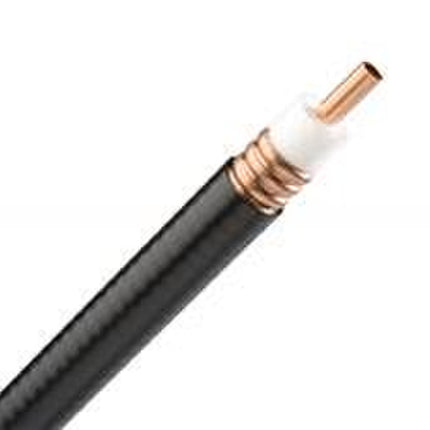

The CommScope AVA5RK-50FX Heliax Virtual Air Coaxial Cable is a high-quality, corrugated copper cable designed for a wide range of applications. With its robust construction and superior electrical properties, this 7/8" black cable, featuring a non-halogenated, fire-retardant polyolefin jacket, ensures reliable and efficient performance. It is an ideal choice for telecom networks, broadcasting, industrial environments, and data centers.

Product Features:

• This cable has standard flexibility and a black jacket.
• The nominal size is 7/8 inches.
• The insulation resistance is 100000 MOhms-km.
• The jacket spark test voltage is 8000 V.
• The operating frequency band is 1 – 5000 MHz.
• The peak power is 91 kW and the velocity is 90%.
• The dielectric material is foam PE, and the jacket material is non-halogenated, fire-retardant polyolefin.
• The inner conductor is made of copper, and the outer conductor is made of corrugated copper.

Application Areas:

• This cable is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This cable ensures reliable connections in data center applications.

In the Box:

• CommScope AVA5RK-50FX Heliax Virtual Air Coaxial Cable - Custom length

Documents:

CommScope AVA5RK-50FX Cable - Datasheet
