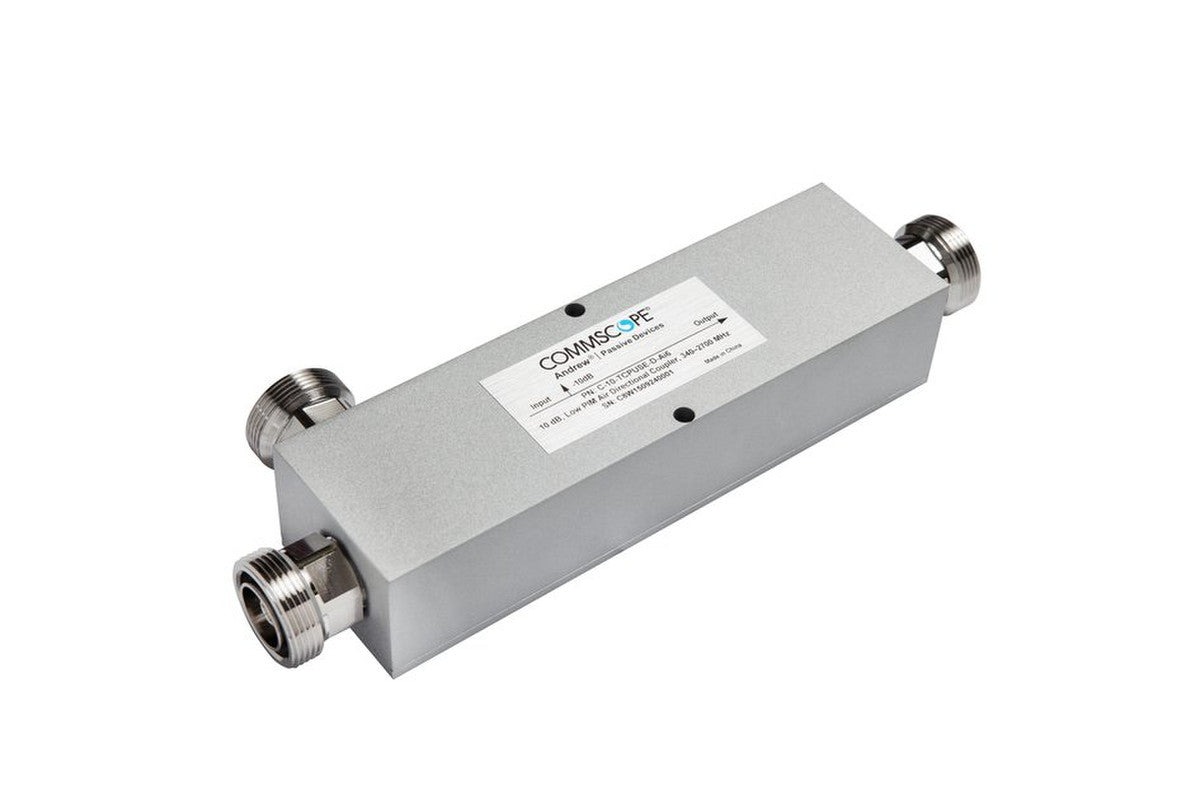

CommScope C-10-TCPUSE-D-AI6 Low PIM Directional Coupler, 340-2700 MHz, 10 dB, 7-16 DIN-Female

CommScope C-10-TCPUSE-D-AI6 Low PIM Directional Coupler, 340-2700 MHz, 10 dB, 7-16 DIN-Female

Sold out

Item ID:
168021450
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
C-10-TCPUSE-D-AI6
Send Request for Quote (RFQ) Discount Offers

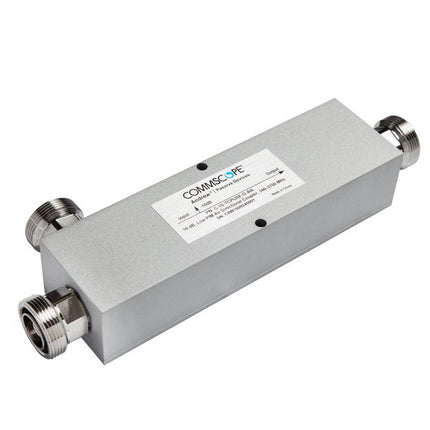

CommScope C-10-TCPUSE-D-AI6 Low PIM Air Directional Coupler is a high-performance RF component designed for precise signal distribution across a broad frequency range of 340-2700 MHz.
Regular price $324.50
Regular price $0.00 Sale price $324.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

CommScope C-10-TCPUSE-D-AI6 Low PIM Air Directional Coupler is a high-performance RF component designed for precise signal distribution across a broad frequency range of 340-2700 MHz with a 10 dB coupling value.

Product Features:

  • This low PIM Air Directional Coupler is designed for efficient signal splitting.
  • It delivers optimal performance across a 340–2700 MHz frequency range.
  • With a coupling value of 10 dB, it provides precise signal attenuation and balanced distribution.
  • The device features a 7-16 DIN-Female connector.
  • The inner contact is silver-plated, while the outer contact is trimetal-plated.
  • Finished in silver, it presents a clean, professional design suitable for high-performance installations.

Application Areas:

  • Distributed Antenna Systems (DAS).
  • Cellular network applications, including LTE, 5G, and legacy networks.
  • Public safety and private wireless communication networks.
  • Indoor and outdoor RF signal distribution systems.

In the Box:

  • 1 × CommScope C-10-TCPUSE-D-AI6 Low PIM Air Directional Coupler.

Documents:

CommScope Low PIM Directional Coupler - Datasheet

Product Specifications

MPN C-10-TCPUSE-D-AI6
Brands CommScope
Colour Silver
Component type Directional Coupler
Connector 7-16 DIN Female
Coupled loss db 10
Frequency band UHF, Cellular
Height 5.3
Impedance ohm 50
Inner contact plating Silver
Length 25.5
Operating temperature c -25 to +85
Outer contact plating Trimetal
Power w 300
Return loss db 20.8
Technology type 5G, 4G, UMTS
Vswr 1.2
Width 7.6
