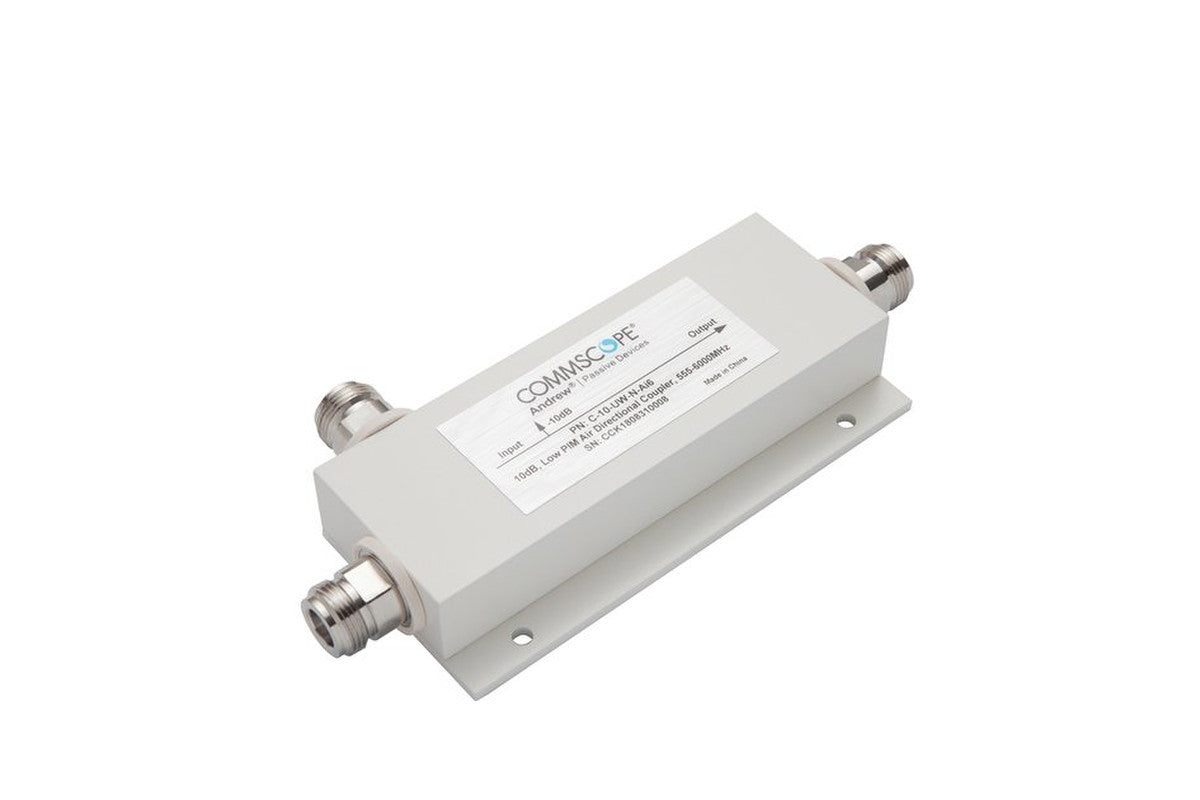

CommScope C-10-UW-N-AI6 Air Directional Coupler, 555-6000 MHz, 10 dB, N-Female

CommScope C-10-UW-N-AI6 Air Directional Coupler, 555-6000 MHz, 10 dB, N-Female

Available

Item ID:
168021447
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
C-10-UW-N-AI6
Send Request for Quote (RFQ) Discount Offers

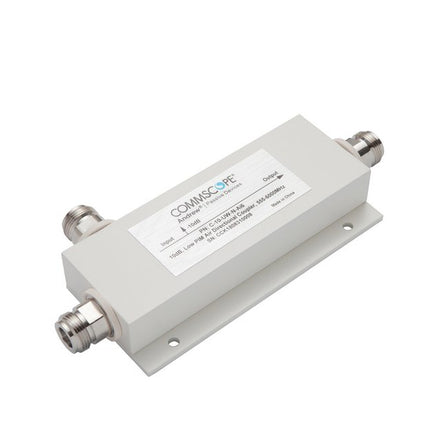

CommScope C-10-UW-N-AI6 Air Directional Coupler is a high-performance RF component designed for precise signal distribution across a broad frequency range of 555-6000 MHz with a 10 dB coupling value.
Regular price $171.50
Regular price $0.00 Sale price $171.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

CommScope C-10-UW-N-AI6 Air Directional Coupler is a high-performance RF component designed for precise signal distribution across a broad frequency range of 555-6000 MHz with a 10 dB coupling value.

Product Features:

  • This Air Directional Coupler is designed for efficient signal splitting.
  • It delivers optimal performance across a 555–6000 MHz frequency range.
  • With a coupling value of 10 dB, it provides precise signal attenuation and balanced distribution.
  • The device features a N-Female connector.
  • The inner contact is silver-plated, while the outer contact is trimetal-plated.
  • Finished in white, it presents a clean, professional design suitable for high-performance installations.

Application Areas:

  • Distributed Antenna Systems (DAS) for enhanced indoor coverage.
  • Cellular network applications, including LTE, 5G, and legacy networks.
  • Public safety and private wireless communication networks.
  • Indoor and outdoor RF signal distribution systems.

In the Box:

  • 1 × CommScope C-10-UW-N-AI6 Directional Coupler.

Documents:

CommScope Air Directional Coupler - Datasheet

Product Specifications

MPN C-10-UW-N-AI6
Brands CommScope
Colour White
Component type Directional Coupler
Connector N (F)
Coupled loss db 10
Frequency band UHF, Cellular
Height 2.2
Impedance ohm 50
Inner contact plating Silver
GTIN/EAN 646444829779
Length 15.9
Operating temperature c -35 to +85
Outer contact plating Trimetal
Power w 200
Technology type 5G, 4G, UMTS
Vswr at frequency band 1.25:1 @ 2700–3800 MHz, 1.2:1 @ 555–2700 MHz, 1.3:1 @ 3800–6000 MHz
Width 7.2
