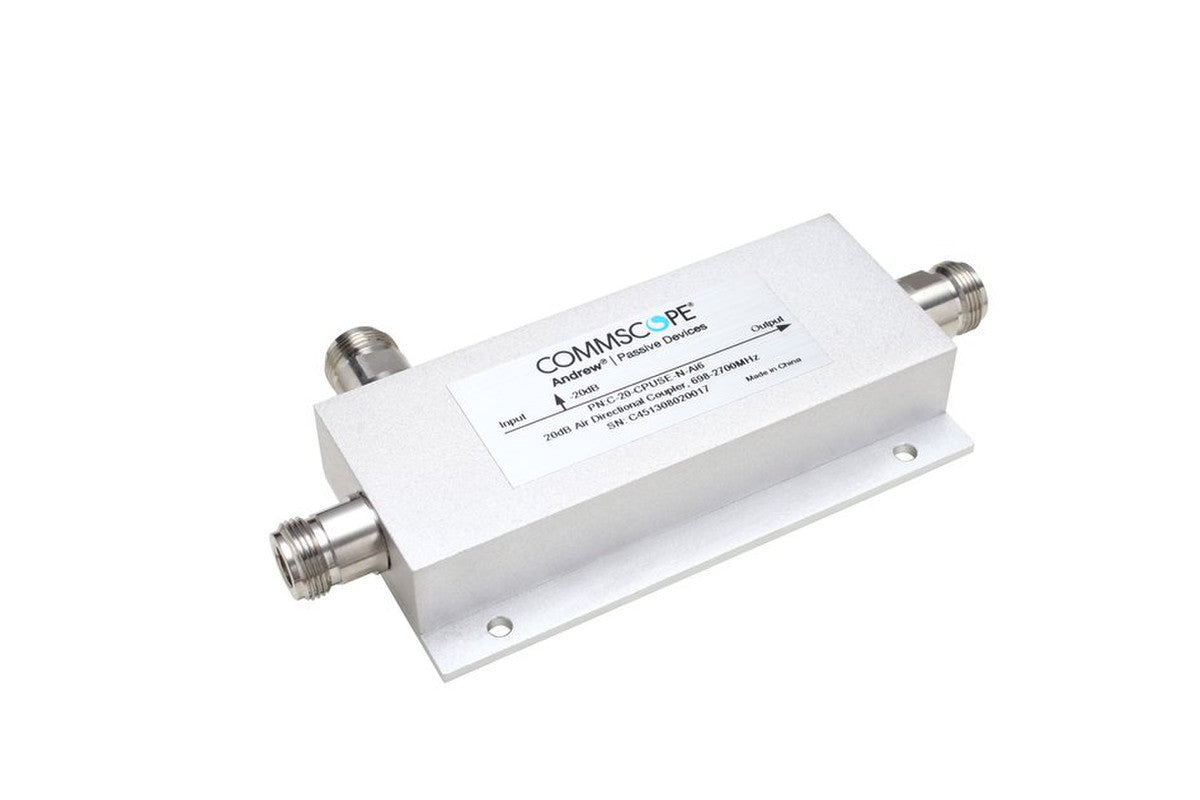

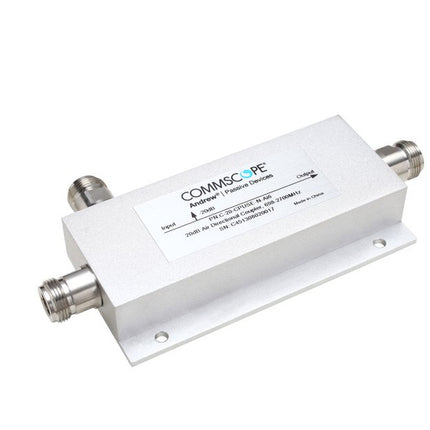

CommScope C-20-CPUSE-N-AI6 Air Directional Coupler, 3-Port, 555-2700 MHz, 20 dB, N-Female

CommScope C-20-CPUSE-N-AI6 Air Directional Coupler, 3-Port, 555-2700 MHz, 20 dB, N-Female

Sold out

Item ID:
168021481
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
C-20-CPUSE-N-AI6
Send Request for Quote (RFQ) Discount Offers
CommScope C-20-CPUSE-N-AI6 Air Directional Coupler is engineered for efficient RF signal distribution, covering a broad frequency range of 555-2700 MHz.
Regular price $506.00
Regular price $0.00 Sale price $506.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

CommScope C-20-CPUSE-N-AI6 Air Directional Coupler is engineered for efficient RF signal distribution, covering a broad frequency range of 555-2700 MHz. With a 20 dB coupling value, it ensures low insertion loss, high isolation, and superior performance in both indoor and outdoor environments.

Product Features:

  • The CommScope Directional Coupler is designed for efficient signal distribution.
  • It delivers optimal performance across a 555–2700 MHz frequency range.
  • With a coupling value of 20 dB, it provides precise signal attenuation and balanced distribution.
  • The device features a N Female connector for secure, stable, and reliable connections.
  • The inner contact is silver-plated, while the outer contact is trimetal-plated.
  • Finished in silver, it presents a clean, professional design suitable for high-performance installations.

Application Areas:

  • Distributed Antenna Systems (DAS).
  • Cellular network applications, including LTE, 5G, and legacy networks.
  • Public safety and private wireless communication networks.
  • RF signal distribution in indoor and outdoor environments.

In the Box:

  • 1 × CommScope C-20-CPUSE-N-AI6 Air Directional Coupler.

Documents:

CommScope Air Directional Coupler - Datasheet

Product Specifications

MPN C-20-CPUSE-N-AI6
Brands CommScope
Colour Silver
Component type Directional Coupler
Connector N (F)
Coupled loss db 20
Frequency band UHF, Cellular
Height 2.2
Impedance ohm 50
Inner contact plating Silver
Length 15.5
Operating temperature c -35 to +85
Outer contact plating Trimetal
Power w 200
Return loss db 20.8
Technology type 5G, 4G, UMTS
Torque nm 4.5
Vswr 1.2
Width 7.5
