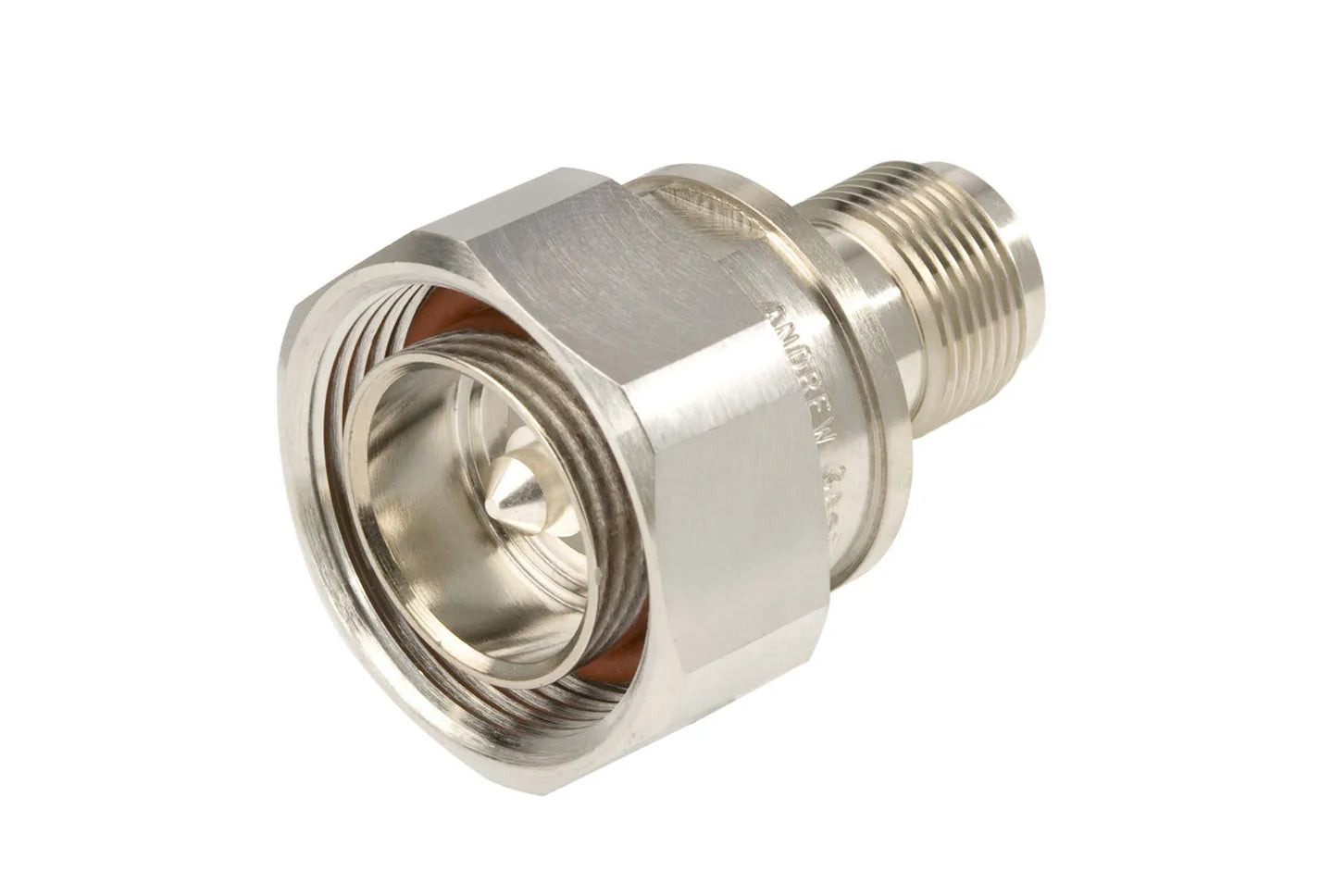

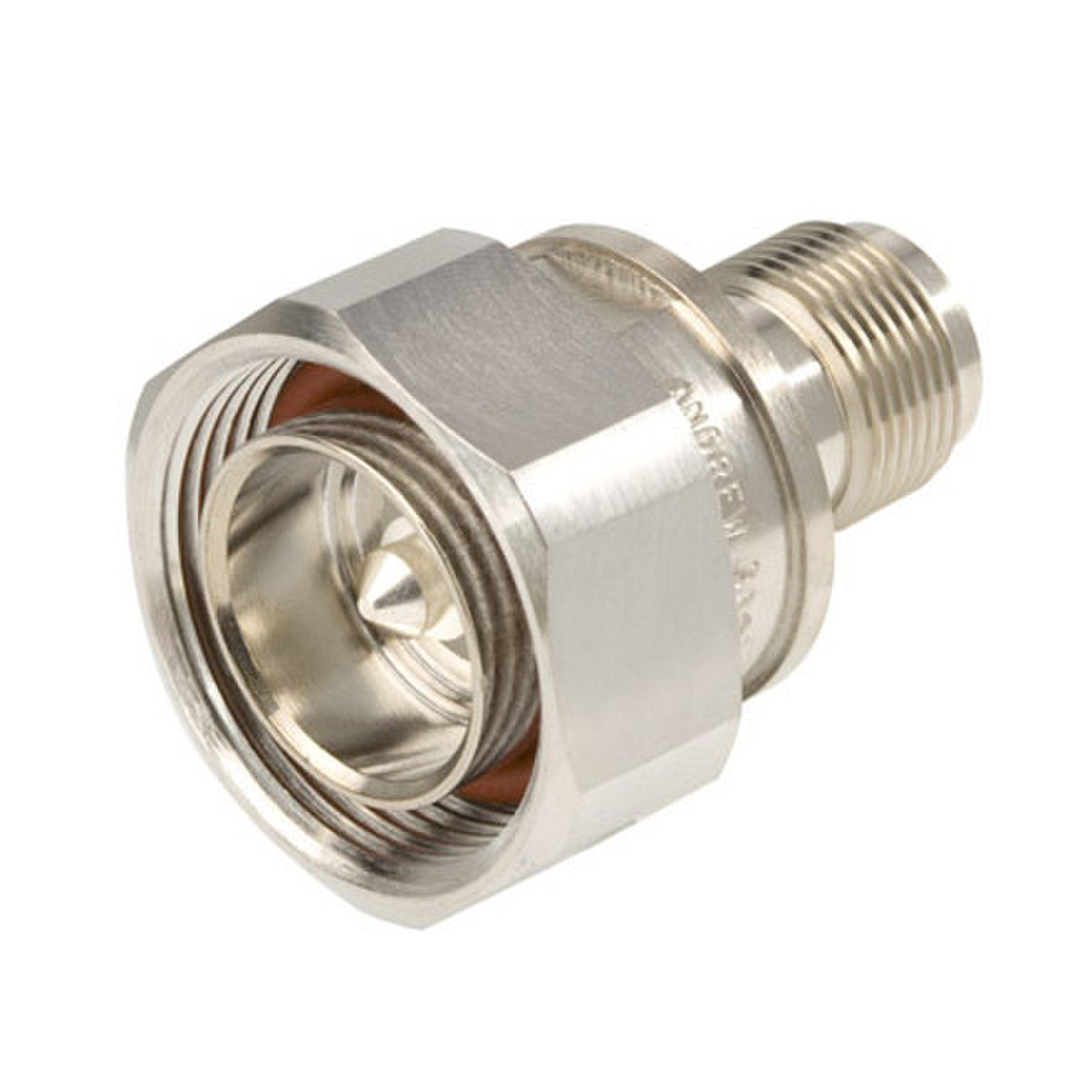

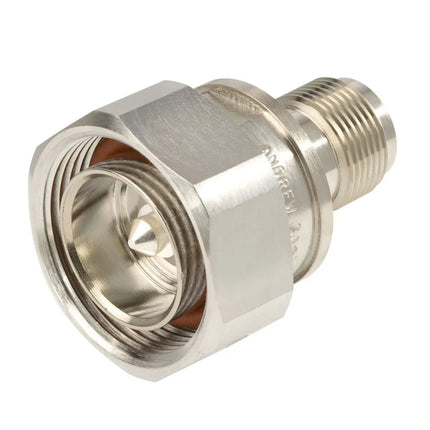

CommScope CA-TNFDM N-Female to 7-16 DIN-Male Adapter

CommScope CA-TNFDM N-Female to 7-16 DIN-Male Adapter

Sold out

Item ID:
168018237
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CA-TNFDM
The CommScope CA-TNFDM N-Female to 7-16 DIN-Male Adaptor is a high-quality connector designed for reliable and efficient performance. This straight adaptor features N-Female to 7-16 DIN-Male interfaces.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

The CommScope CA-TNFDM N-Female to 7-16 DIN-Male Adapter is a high-quality connector designed for reliable and efficient performance. This straight adapter features N-Female to 7-16 DIN-Male interfaces.

Product Features:

  • The body style is straight, with an N Female interface and a 7-16 DIN Male interface.
  • The inner contact is plated with silver, and the outer contact is plated with trimetal.
  • The 3rd order IMD at 1800 MHz is -116 dBm, tested with two +43 dBm carriers.
  • The average power at 900 MHz is 600.0 W, and the connector impedance is 50 ohms.
  • The DC test voltage is 2500 V, with a maximum RF operating voltage of 707 V (vrms).
  • The maximum inner contact resistance is 1.5 mOhm, and the maximum outer contact resistance is 0.4 mOhm.
  • The minimum insulation resistance is 5000 MOhm and peak power is a maximum of 10 kW.
  • The operating frequency band ranges from 0 to 6000 MHz.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope CA-TNFDM N-Female to 7-16 DIN-Male Adapter

Documents:

CommScope CA-TNFDM Adaptor - Datasheet

Product Specifications

MPN CA-TNFDM
Brands CommScope
Component type Adapter
Connector end a N (F)
Connector end b 7-16 DIN (M)
Durability 500 cycles
Height 2.235
Impedance ohm 50
Length 4.723
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Straight
Operating temperature c -55 to +85
Torque nm 35
Width 2.235
