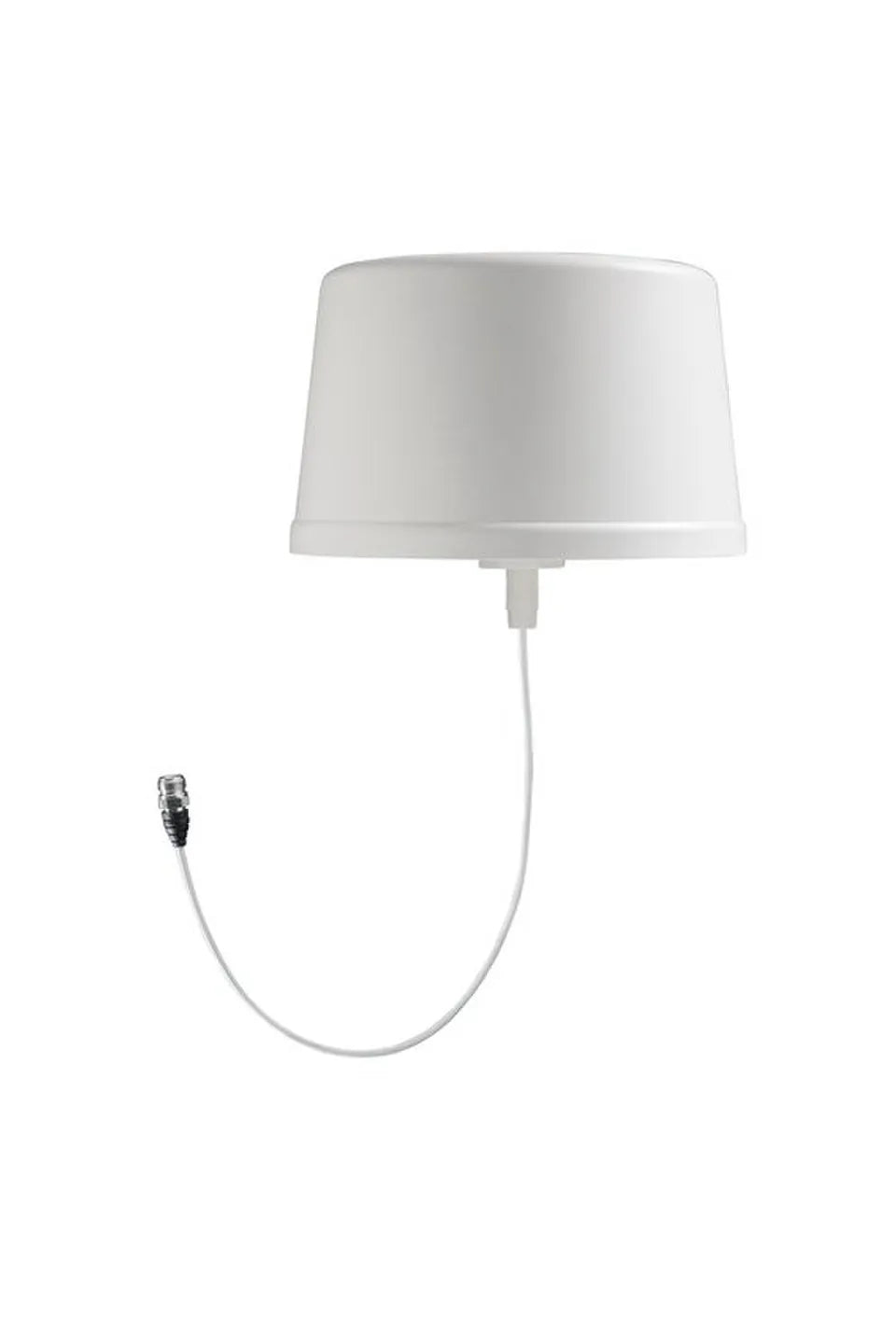

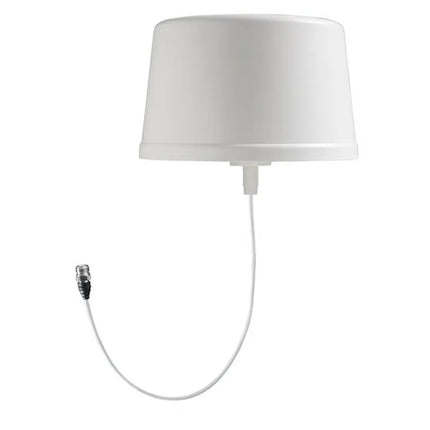

CommScope Cell-Max Omni DAS Antenna, 350-6000 MHz, N-Female

CommScope Cell-Max Omni DAS Antenna, 350-6000 MHz, N-Female

Sold out

Item ID:
168014121
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CELLMAX-O-TCPUSEWI
Discount Offers
CommScope Cell-Max Omni DAS Antenna is designed for superior performance across multiple frequency bands. With its omni-directional design and high-quality construction, this antenna provides reliable coverage for Distributed Antenna Systems (DAS).
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

CommScope Cell-Max Omni DAS Antenna is designed for superior performance across multiple frequency bands. With its omni-directional design and high-quality construction, this antenna provides reliable coverage for Distributed Antenna Systems (DAS).

Product Features:

  • It covers 350–470, 617–960, and 1710–6000 MHz frequency range.
  • Omni-directional design for all-around signal reception.
  • Single Input, Single Output (SISO) configuration.
  • Elegant white finish complements any indoor setting.
  • Optional thru-hole ceiling mount for flexible installation.
  • Single port for simplified connectivity.
  • High-quality KSR195, plenum-rated for safety and performance.
  • Durable ABS construction ensures longevity.

Application Areas:

  • Indoor Distributed Antenna Systems (DAS).
  • Enterprise buildings, shopping malls, and office spaces.
  • Public venues such as airports, stadiums, and hospitals.
  • Multi-carrier and multi-frequency wireless coverage solutions.

In the Box:

  • 1 × CommScope Cell-Max-O-TCPUSEWI Omni DAS Antenna
  • 1x N-Female connector

Documents:

CommScope Cell-Max-O-TCPUSEWI Antenna - Datasheet

Product Specifications

MPN CELLMAX-O-TCPUSEWI
Antenna application DAS Antenna
Antenna cable type KSR195
Antenna configuration SISO
Antenna port connectors N (F)
Antenna type Omni
Brands CommScope
Cable length m 0.5
Coverage type Omni-directional
Height 26.01
Installation type Internal mounting
GTIN/EAN 646444560337
Length 26.01
Low pim No
Max frequency mhz 6000
Max gain dbd dbi 6
Mimo support No
Min frequency mhz 350
Min gain dbd dbi 2.5
Mount supported Ceiling mount
No of antenna ports 1
Power w 50
Technologies supported Wi-Fi, 2G, 3G, 4G, 5G
Width 22
