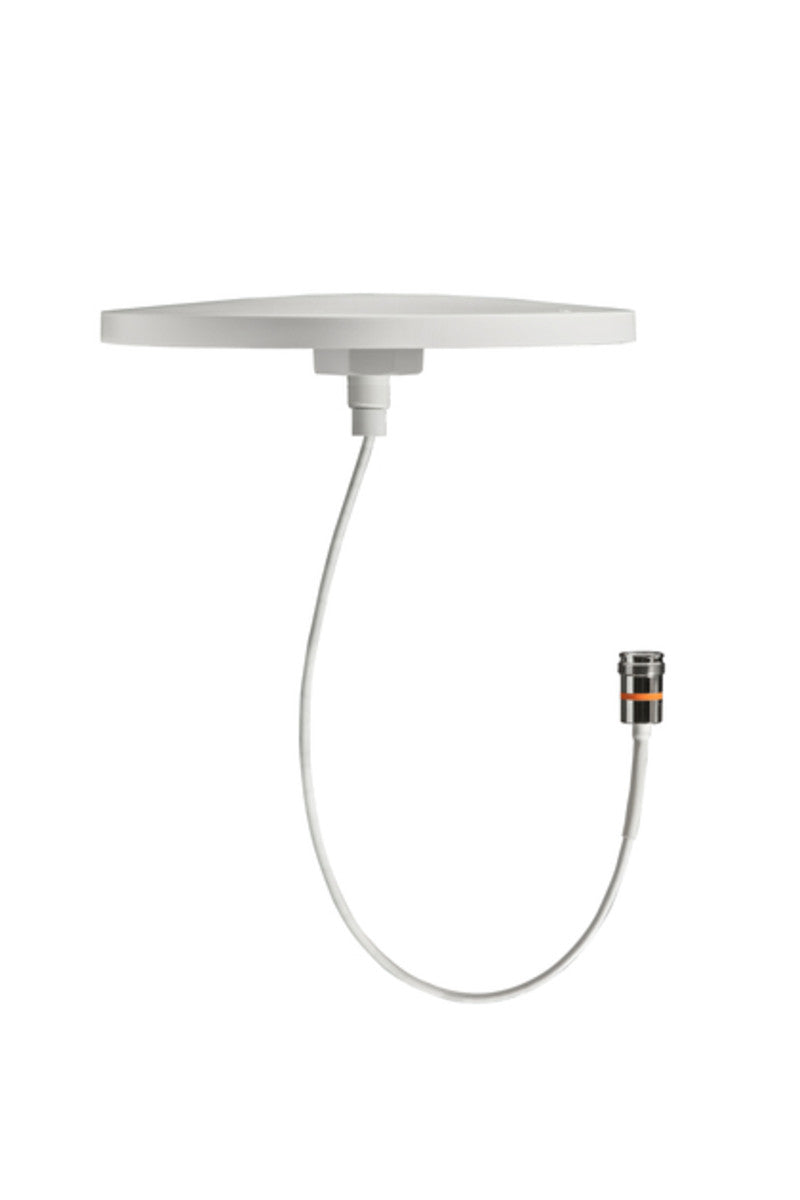

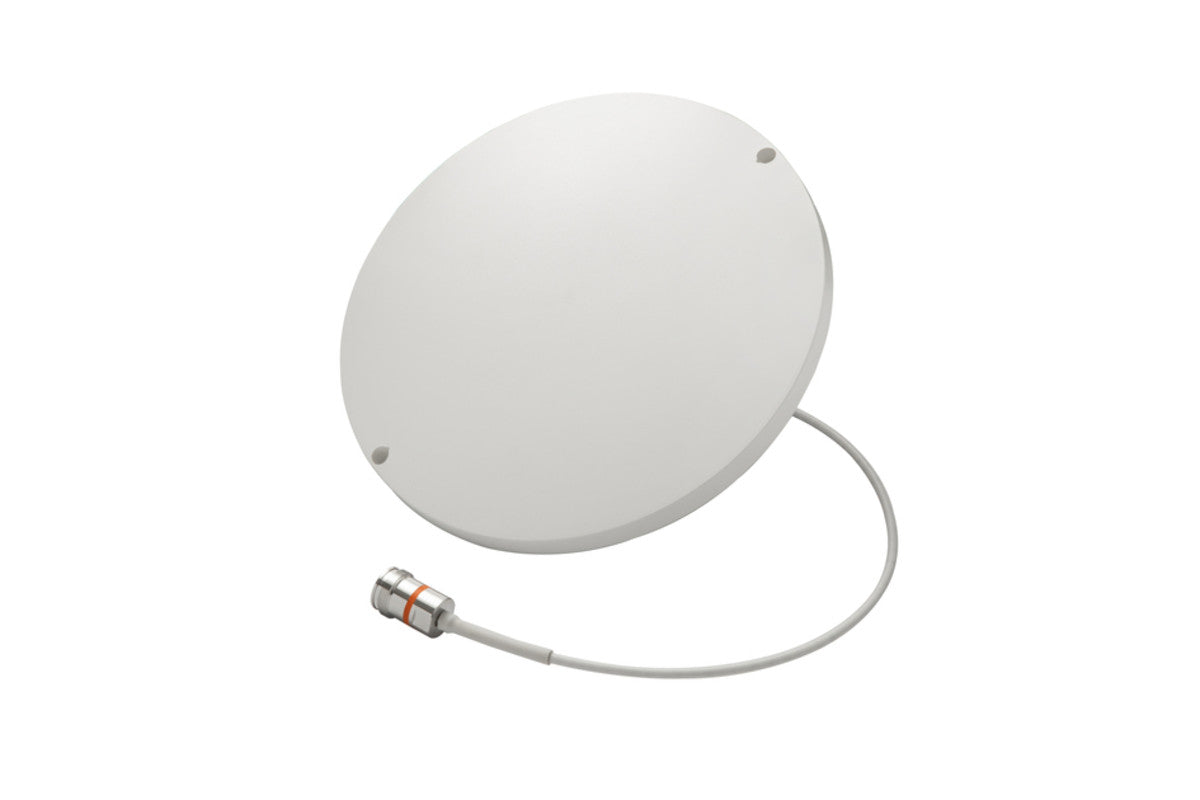

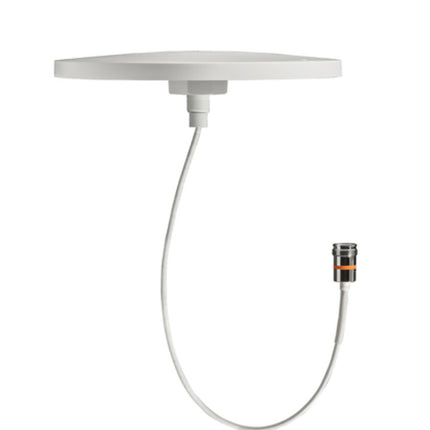

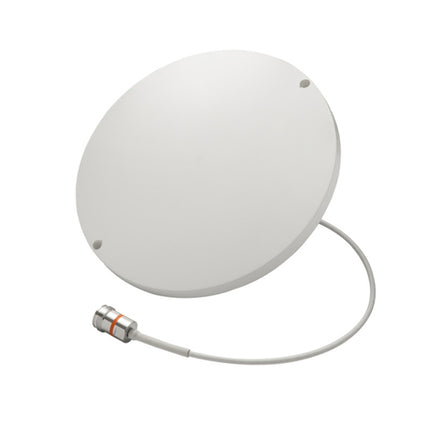

The CommScope CMAX-OUS1-UW43-I53 Omni DAS Antenna is a high-quality, low PIM antenna designed for in-building applications. It operates across a wide frequency range of 617-6000 MHz and features a 4.3-10 Female connector. This antenna enhances indoor connectivity seamlessly and is built for optimal performance.

Product Features:

• The RF connector interface is 4.3-10 female.
• The impedance is 50 ohms.
• The antenna type is omni-directional, providing 360-degree coverage to keep you connected from every angle.
• It features horizontal polarization, offering versatile signal reception in diverse settings.
• The color is elegant white, complementing interior aesthetics.
• The mounting option includes a thru-hole ceiling mount.
• The radome material is made of durable ABS construction.
• It covers an operating frequency band of 617-698 MHz, 698-960 MHz, 1400-1500 MHz, 1695-2700 MHz, 3300-3800 MHz, and 4900-6000 MHz.

Application Areas:

• This product is ideal for wireless coverage in office buildings, shopping malls, airports, and other large indoor spaces.
• It is perfect for use in DAS to improve signal distribution and coverage.
• This product ensures reliable communication for emergency services within buildings.
• It enhances wireless connectivity in both commercial and residential settings.

In the Box:

• 1x CommScope CMAX-OUS1-UW43-I53 Omni DAS Antenna
• 4.3-10-Female connector

Documents:

CommScope CMAX-OUS1-UW43-I53 Antenna - Datasheet CommScope CMAX-OUS1-UW43-I53 Antenna - Installation Guide
