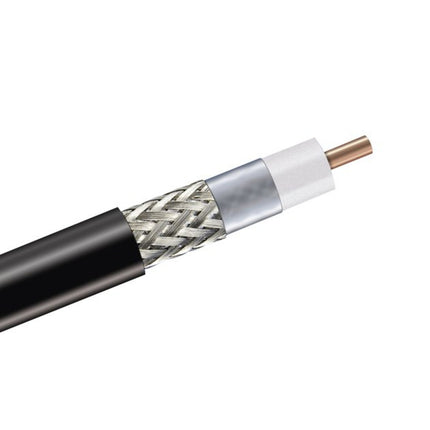

CommScope CNT400 is a top-rated cable supporting wide frequency range of 30 MHz to 6000 MHz, making it ideal for 4G & 5G-sub 6 GHz applications. This cable is very popular for its flexibility which makes installation easy, for example using with indoor repeaters like Nextivity Cel-Fi GO G51.

Product Features:

• The braid coverage is 90% and the cable type is CNT400 with a black jacket.
• The nominal size is 0.400 in, and the cable impedance is 50 ohm.
• The cable can handle a DC test voltage of 2500 V and the jacket spark test voltage is 4000 V.
• The maximum frequency is 16.2 GHz and the operating frequency band is 30 - 6000 MHz.
• The peak power is 16 kW and the shielding effectiveness is 90 dB.
• The braid material is tinned copper, and the dielectric material is foam PE.
• The jacket material is non-halogenated, fire-retardant polyolefin.
• The inner conductor is made of copper-clad aluminum wire, and the shield tape material is aluminum

Application Areas:

• This cable is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This cable ensures reliable connections in data center applications.

In the Box:

• CommScope CNT400 Coaxial Cable Drum - Custom length

Documents:

CommScope CNT400 Cable - Datasheet
