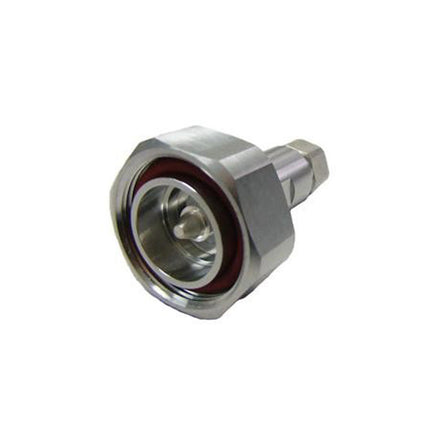

CommScope F1TDM-C 7-16 DIN-Male Connector for 1/4'' FSJ1-50A Cable

CommScope F1TDM-C 7-16 DIN-Male Connector for 1/4'' FSJ1-50A Cable

Sold out

Item ID:
168018435
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F1TDM-C
Send Request for Quote (RFQ)
CommScope F1TDM-C is a high-quality 7-16 DIN-Male Connector designed for 1/4'' FSJ1-50A cable. This connector ensures reliable and efficient performance.
Regular price $38.70
Regular price $0.00 Sale price $38.70
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope F1TDM-C is a high-quality straight 7-16 DIN-Male Connector designed specifically for 1/4'' FSJ1-50A cable. The inner contact is captivated and plated with silver, while the outer contact is attached by self-clamping and plated with trimetal. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers.

Product Features:

  • The interface is a 7-16 DIN Male connector with a straight mounting angle.
  • The 3rd order IMD at 910 MHz is -112 dBm, tested with two +43 dBm carriers.
  • Both the cable and connector have an impedance of 50 ohms.
  • The DC test voltage is 1600 V, with a maximum RF operating voltage of 565 V (vrms).
  • The maximum inner contact resistance is 0.4 mOhm, and the maximum outer contact resistance is 1.5 mOhm.
  • The minimum insulation resistance is 10000 MOhm and shielding effectiveness is -110 dB.
  • The operating frequency band ranges from 0 to 6000 MHz, with a peak power of 6.4 kW.
  • The connector retention tensile force is 449.27 N (101 lbf).
  • The coupling nut proof torque is 50 Nm and the retention force is 1000 N.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope F1TDM-C 7-16 DIN-Male Connector

Documents:

CommScope F1TDM-C Connector - Datasheet CommScope F1TDM-C Connector - Installation Guide

Videos:

CommScope F1TDM-C 716 DIN Male Connector - Installation Guide
