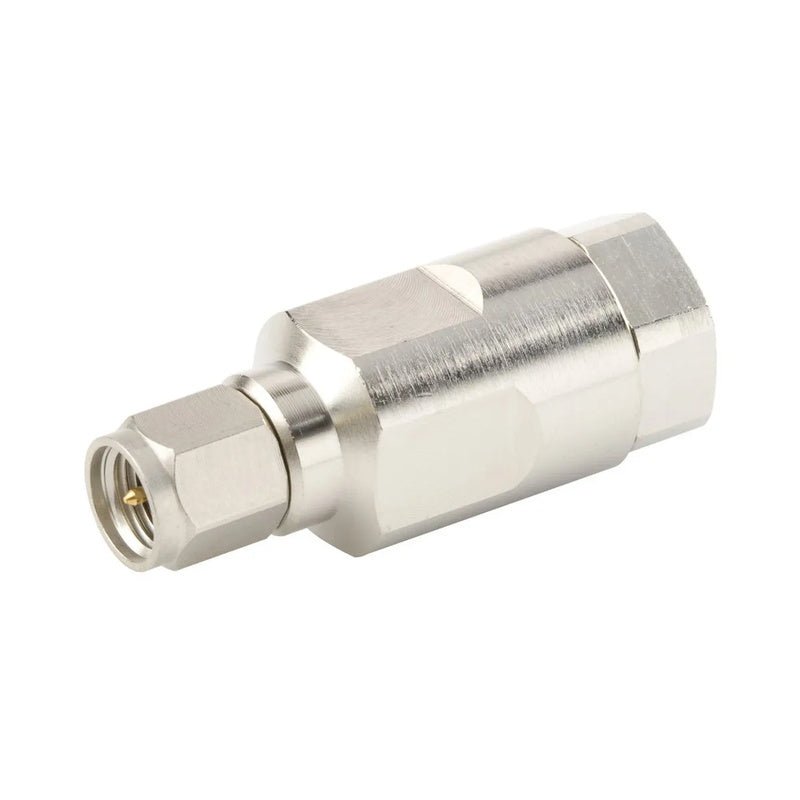

CommScope F1TSM-C SMA-Male Connector for 1/4'' FSJ1-50A Cable

CommScope F1TSM-C SMA-Male Connector for 1/4'' FSJ1-50A Cable

Sold out

Item ID:
168018438
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F1TSM-C
The CommScope F1TSM-C is a high-quality SMA-Male Connector designed for 1/4'' FSJ1-50A cable. This connector ensures reliable and efficient performance.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

The CommScope F1TSM-C is a high-quality straight SMA-Male Connector designed specifically for 1/4'' FSJ1-50A cable. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers.

Product Features:

  • The inner contact is captivated and plated with gold.
  • The outer contact is attached by self-clamping and plated with trimetal.
  • The interface is an SMA Male connector with a straight mounting angle, and it is not pressurizable.
  • The average power at 900 MHz is 0.4 kW, with a peak power of 5 kW.
  • Both the cable and connector have an impedance of 50 ohms.
  • The DC test voltage is 1000 V, with a maximum RF operating voltage of 500 V (vrms).
  • The maximum inner contact resistance is 3 mOhm, and the maximum outer contact resistance is 2.5 mOhm.
  • The minimum insulation resistance is 5000 MOhm.
  • The operating frequency band ranges from 0 to 6000 MHz and the shielding effectiveness is -110 dB.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope F1TSM-C SMA-Male Connector

Documents:

CommScope SMA Male for 1/4 in FSJ1-50A cable - Datasheet CommScope SMA Male for 1/4 in FSJ1-50A cable - Installation Guide

Videos:

CommScope SMA Male for 1/4 in FSJ1-50A cable - Installation Guide

Product Specifications

MPN F1TSM-C
Brands CommScope
Cable supported FSJ1-50A
Cable type FSJ1-50A
Component type Connector
Connector SMA(M)
Connector end a SMA (M)
Height 1.42
Impedance ohm 50
Inner attachment Other
GTIN/EAN 646444397537
Length 3.66
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Straight
Prep toolset MCPT-1412
Width 1.42
